🔧 Sierra 1500 - Ignition Coil Replacement

Your Sierra 1500 uses one ignition coil per cylinder to create the high-voltage spark. Replacing a bad coil is usually straightforward: unplug it, unbolt it, swap it, and reconnect everything.

Difficulty Level: Intermediate | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; exhaust manifolds can burn you.
• ⚠️ Keep the key out of the ignition while unplugging coils.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Pull on boots/connectors, not wires, to avoid hidden damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Inch-pound torque wrench (0–200 in-lb range)
• Small flathead screwdriver
• Pick tool
• Needle-nose pliers
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (per failed cylinder)
• Dielectric grease - Qty: 1
• Ignition coil electrical connector pigtail - Qty: 1 (only if connector is broken)

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully so you can reach the coils safely.
• Use an 8mm socket or 10mm socket to remove the engine cover if yours has one (varies by build).
• Disconnect the battery: use a 10mm socket to remove the negative cable from the battery and tuck it aside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

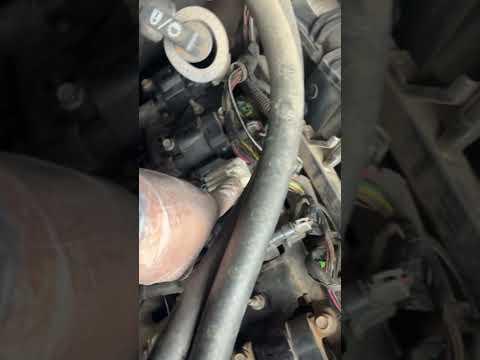

Step 1: Locate the coil you’re replacing

• Each cylinder has its own coil mounted near the valve cover, with a short spark plug wire (the thick wire) going from the coil to the spark plug.
• If you’re unsure which one is bad, a scan tool code like P030X points to a cylinder number (X). Replace one coil at a time.

Step 2: Disconnect the coil electrical connector

• Find the small electrical plug on the coil.
• If there’s a safety lock tab, gently lift it using a pick tool (a pick is a small hooked tip tool used to lift locks without breaking them).
• Press the release tab and pull the connector straight off the coil. Use a small flathead screwdriver only if needed, and don’t pry hard.

Step 3: Remove the spark plug wire from the coil

• Grip the rubber boot at the coil end (not the wire) and twist slightly to break it loose.
• Pull the boot straight off. Use needle-nose pliers only on the boot, not the wire itself.

Step 4: Unbolt and remove the coil

• Use a 10mm socket, 1/4" drive ratchet, and 6" socket extension to remove the coil mounting bolts.
• Lift the coil off the bracket/valve cover area.
• Wipe the mounting area with shop towels.

Step 5: Install the new coil

• Set the new coil in place and start the bolts by hand to avoid cross-threading.
• Tighten coil bolts with an inch-pound torque wrench: Torque to 80 in-lb (9 Nm).
• If your coil mounts to a separate bracket that bolts to the valve cover, torque bracket-to-valve-cover fasteners to 106 in-lb (12 Nm) using the inch-pound torque wrench.

Step 6: Reconnect the spark plug wire and electrical connector

• Apply a small dab of dielectric grease inside the spark plug wire boot (dielectric grease is non-conductive grease that helps prevent moisture and makes boots easier to remove later).
• Push the spark plug wire boot onto the coil until it seats firmly.
• Plug the electrical connector back in until it clicks; re-engage the lock tab if equipped using the pick tool.

Step 7: Reinstall engine cover (if equipped) and reconnect battery

• Reinstall the engine cover using an 8mm socket or 10mm socket (whichever your cover uses).
• Reconnect the negative battery cable using a 10mm socket (snug—do not overtighten).

---

✅ After Repair

• Start the engine and listen for a smooth idle (no shaking/misfire).
• If the Check Engine Light was on, clear codes with a scan tool and verify they don’t return.
• Take a short test drive and recheck that the coil connector and plug wire are fully seated.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor, depending on how many coils)

DIY Cost: $40-$320 (parts only, depending on how many coils)

You Save: $160-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
