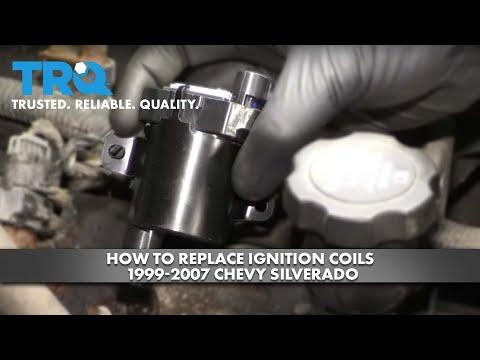

🔧 Silverado 1500 - Ignition Coil Replacement

Your Silverado’s ignition coils create the high voltage that fires the spark plugs. A weak or failed coil can cause a misfire, rough idle, flashing check-engine light, and poor power.

Difficulty Level: Beginner | Estimated Time: 0.5-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully; coils sit near hot engine parts.
• ⚠️ If the check-engine light is flashing, avoid driving until fixed (can damage the catalytic converter).
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts.
• ⚠️ Pull on the connector body and plug-wire boot—never yank the wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• 6" socket extension
• Torque wrench (inch-pound)
• Flathead screwdriver (small)
• Trim/pick tool (small) (specialty)
• Needle-nose pliers
• Battery terminal wrench (10mm)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or Qty: 8 if replacing all)
• Dielectric grease (spark plug boot grease) - Qty: 1
• Spark plug wire set - Qty: 1 (recommended if wires are old/brittle)

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• 🔋 Use a 10mm battery terminal wrench to disconnect the negative battery cable and tuck it aside.
• 🏷️ If you’re replacing only one coil, label that plug wire so it goes back to the same cylinder.
• 🧠 Quick definition: the “plug wire boot” is the thick rubber end that snaps onto the spark plug.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use your hands to lift the plastic engine cover straight up off its mounting points (some covers may have small fasteners).
• If fasteners are present, remove them with a 10mm socket and 1/4" drive ratchet.

Step 2: Locate the coil you’re replacing

• Each coil is mounted on the valve cover with one plug wire running from the coil to the spark plug.
• Use a work light to clearly see the connector lock and mounting bolt.

Step 3: Unplug the coil electrical connector

• Use a trim/pick tool (small) (specialty) or small flathead screwdriver to lift/release the connector lock (a small plastic tab that prevents unplugging).
• Press the release tab and pull the connector straight off the coil by hand.
• If it’s stuck, wiggle gently—don’t pry hard.

Step 4: Remove the spark plug wire from the coil

• Grab the plug wire by the rubber boot at the coil end.
• Twist the boot left-right to break it free, then pull it straight off.
• If needed, use needle-nose pliers very gently on the boot only (not the wire).

Step 5: Remove the coil mounting bolt and take the coil off

• Use a 10mm socket, extension, and ratchet to remove the coil mounting bolt.
• Lift the coil off the valve cover.

Step 6: Install the new coil

• Set the new coil into place on the valve cover mounting boss.
• Start the mounting bolt by hand to avoid cross-threading.
• Tighten with a 10mm socket and then use a torque wrench (inch-pound): Torque to 89 in-lbs (10 Nm).

Step 7: Reconnect the plug wire

• Apply a small amount of dielectric grease inside the plug wire boot (pea-sized).
• Push the boot onto the coil tower until you feel it fully seat.

Step 8: Reconnect the coil electrical connector

• Push the connector onto the coil until it clicks.
• Re-engage the connector lock (if equipped) using your fingers or a small flathead screwdriver.

Step 9: Reinstall the engine cover (if removed)

• Press the cover back onto its mounts by hand.
• If it uses fasteners, install and snug them with a 10mm socket and ratchet.

Step 10: Reconnect the battery

• Reconnect the negative battery cable using a 10mm battery terminal wrench.

---

✅ After Repair

• 🔎 Start the engine and let it idle for 1–2 minutes; it should run smooth.
• 🧪 If you had a misfire, take a short test drive and confirm no flashing check-engine light.
• 🧰 If the check-engine light stays on, the code may need clearing (a parts-store scan tool can do this), or there may be another issue like a plug wire or spark plug.
• 👃 If you smell fuel or hear arcing/ticking, shut it off and re-check wire seating.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$650 (parts + labor, depending on how many coils)

DIY Cost: $35-$450 (parts only, depending on how many coils)

You Save: $100-$250+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.5 hours.

---
