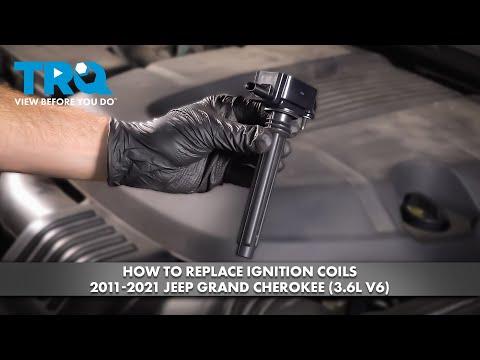

🔧 Grand Cherokee - Ignition Coil Replacement

Your Grand Cherokee uses coil-on-plug ignition coils (one coil per cylinder) mounted on top of the valve covers. Replacing a failing coil can fix misfires, rough idle, and a flashing check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting; coils sit near hot parts.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to protect electronics.
• ⚠️ Pull coils straight up; don’t yank on the wiring harness.
• ⚠️ If the check-engine light was flashing, avoid driving until repaired (can damage the catalytic converters).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 1/4" drive extension set (3" and 6")
• Torque wrench (in-lb or Nm capable)
• Flat trim tool
• Small pick tool
• Battery terminal wrench (10mm)
• Nitrile gloves
• Safety glasses
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Replace as needed (or replace all eight) - Qty: 1-8
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool completely.
• Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back.
• Do one coil at a time to avoid mix-ups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grip the engine cover and pull upward firmly to release the rubber grommets.
• If it feels stuck, use a flat trim tool to gently pry up at a corner.

Step 2: Choose the coil you’re replacing

• Each cylinder has one coil bolted to the valve cover.
• Start with the easiest coil to reach.

Step 3: Unplug the coil electrical connector

• Use a small pick tool to lift/release the connector lock (the lock is the small secondary tab that prevents accidental unplugging).
• Press the release tab and pull the connector straight off the coil.
• Do not pull on the wires—only pull on the connector body.

Step 4: Remove the coil mounting bolt

• Use a 10mm socket, 1/4" drive ratchet, and a 3" or 6" extension to remove the coil bolt.
• Set the bolt aside; you’ll usually reuse it.

Step 5: Remove the ignition coil

• Grab the coil and twist it gently left-right to break the seal.
• Pull the coil straight up and out.
• If it’s stubborn, keep twisting—don’t pry hard against plastic parts.

Step 6: Prep and install the new coil

• Put a small dab of dielectric grease inside the rubber boot of the new coil. (Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.)
• Line the coil up with the spark plug tube and push straight down until fully seated.

Step 7: Reinstall and torque the coil bolt

• Thread the bolt in by hand first to avoid cross-threading.
• Use a torque wrench (in-lb or Nm capable) and 10mm socket to tighten the coil bolt: Torque to 12 Nm (105 in-lbs).

Step 8: Reconnect the coil connector

• Push the connector on until it clicks.
• Re-engage the connector lock using the small pick tool if needed.

Step 9: Repeat for any other coils

• Replace additional coils one at a time using the same steps.
• If you’re chasing a misfire, swap only the bad coil first.

Step 10: Reinstall engine cover and reconnect battery

• Press the engine cover back down onto its grommets until it snaps into place.
• Reconnect the negative battery cable using a 10mm socket and snug it securely.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes; it should run smooth with no shaking.
• Test drive gently and confirm no hesitation under light acceleration.
• If the check-engine light is on, read/clear codes with a scan tool (many parts stores can scan). If it returns, the issue may be a spark plug, injector, or wiring problem.
• Recheck that every coil connector is fully clicked and locked.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹25,000+ (depends on how many coils and diagnostics)

DIY Cost: ₹2,000-₹16,000 (parts only, depending on 1-8 coils)

You Save: ₹4,000-₹9,000+ by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹3,000/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
