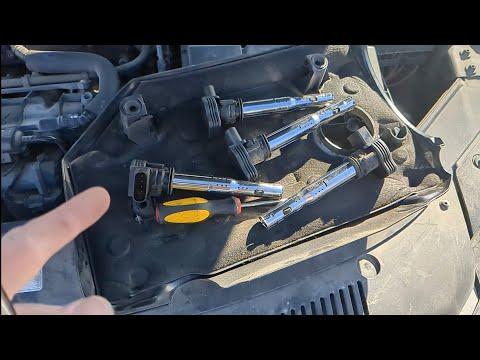

🔧 Passat - Ignition Coil Replacement

Your Passat uses coil-on-plug ignition coils (one per cylinder). Replacing a weak coil can fix misfires, rough idle, and flashing check-engine lights, and it’s a straightforward job if you take your time with the connectors.

Difficulty Level: Beginner | Estimated Time: 0.8-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; coils sit near hot metal.
• ⚠️ Keep keys away from the car while unplugging coils.
• ⚠️ Don’t pull on wiring; release connector locks first.
• ⚠️ Battery disconnect is not required, but if you’re nervous around connectors, disconnect the negative terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T30 socket
• 1/4" ratchet
• 3" extension (1/4" drive)
• Small flathead screwdriver
• Plastic trim tool
• Torque wrench (in-lb or low Nm)
• Ignition coil puller (specialty)
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coils - Qty: 6
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool fully.
• If disconnecting the battery: use a 10mm wrench to remove the negative terminal and keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover

• Grip the engine cover at the corners and pull upward firmly to pop it off the rubber grommets.
• Use a flashlight to locate all six coils on top of the engine.

Step 2: Unplug one coil connector

• Pick one coil to start with (doing one at a time helps prevent mixing connectors).
• Use a plastic trim tool or small flathead screwdriver to gently release the connector lock, then pull the connector straight off.
• Don’t pry on the wires.

Step 3: Remove the coil hold-down fastener

• Use a Torx T30 socket, 1/4" ratchet, and 3" extension to remove the coil’s hold-down screw (if equipped on your coil bracket).
• Set the screw aside where it won’t fall into the engine bay.

Step 4: Pull the ignition coil out

• Use an ignition coil puller (specialty) to pull the coil straight up; this tool hooks the coil so you can lift without cracking it (it’s basically a safe “handle” for stuck coils).
• If it’s stubborn, wiggle gently while pulling upward. Do not twist hard.

Step 5: Prep and install the new coil

• Put a very thin smear of dielectric grease inside the rubber boot of the new coil.
• Push the new coil straight down onto the spark plug until it fully seats.

Step 6: Reinstall fastener and reconnect

• Reinstall the hold-down screw using a Torx T30 socket.
• Torque to 9 Nm (80 in-lb) using a torque wrench.
• Reconnect the electrical connector until it clicks/locks in place.

Step 7: Repeat for the remaining coils

• Repeat Steps 2–6 for the other five coils.
• Use a flashlight to double-check every connector is fully seated.

Step 8: Refit engine cover (and battery if removed)

• Press the engine cover back down onto the grommets until it snaps in.
• If you disconnected the battery, reconnect the negative terminal using a 10mm wrench and tighten snug.

---

✅ After Repair

• Start the engine and let it idle for 1–2 minutes. It should be smooth.
• If the check-engine light was on, use an OBD2 scan tool to clear codes and confirm misfires don’t return.
• Test drive 10–15 minutes. Recheck for any warning lights or rough running.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $160-$420 (parts only)

You Save: $140-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
