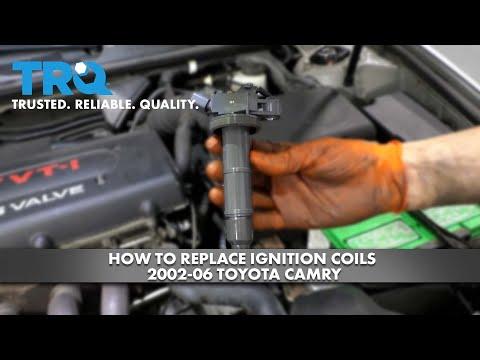

🔧 Camry - Ignition Coil Replacement

Your Camry uses one ignition coil per cylinder (coil-on-plug). Replacing a weak coil can fix misfires, rough idle, and a flashing check-engine light, and it’s a very DIY-friendly job.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the valve cover and exhaust.
• ⚠️ Disconnect the negative battery terminal if you’ll be unplugging multiple connectors or working slowly around wiring.
• ⚠️ If the check-engine light is flashing, avoid driving—this can damage the catalytic converter.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Torque wrench (inch-pound or low-range Nm)
• Flathead screwdriver
• Needle-nose pliers
• Shop light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1-4
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the hood.
• If you choose to disconnect power: use a 10mm socket to remove the negative battery cable and move it aside so it can’t spring back.
• Replace coils one at a time to avoid mix-ups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the ignition coils

• Remove any plastic engine cover if equipped (some are held by small fasteners).
• Look on top of the engine valve cover for 4 identical coils in a row, each with an electrical connector.

Step 2: Unplug the coil connector

• Press the connector lock tab and pull the connector straight off by hand.
• If it’s stuck, gently help the tab with a flathead screwdriver—don’t pry hard on the wires.

Step 3: Remove the coil hold-down bolt

• Use a 10mm socket, 3" socket extension, and 1/4" drive ratchet to remove the single bolt holding the coil to the valve cover.
• Set the bolt somewhere safe so it can’t fall into the engine bay.

Step 4: Pull the ignition coil out

• Grip the coil and twist it slightly left/right, then pull straight up to remove it.
• If the rubber boot feels “stuck” to the spark plug, keep twisting while pulling—this is normal.

Step 5: Prep and install the new coil

• Put a very small dab of dielectric grease inside the new coil boot (this helps prevent moisture and makes future removal easier).
• Push the new coil straight down onto the spark plug until it fully seats.
• Reinstall the hold-down bolt by hand first (to avoid cross-threading), then tighten with a 10mm socket.
• Tighten the coil bolt: Torque to 8 Nm (71 in-lbs).

Step 6: Reconnect the electrical connector

• Push the connector on until it clicks.
• Give it a light tug to confirm it’s locked.

Step 7: Repeat for other cylinders (if replacing more than one)

• Do the same steps for each remaining coil you’re replacing.
• If only one coil failed, the others may be close behind.

Step 8: Reconnect battery (if disconnected) and reassemble

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall any engine cover you removed.

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smoothly with no shaking.
• If the check-engine light was on, it may take a few drive cycles to turn off, or you can clear codes with a scan tool.
• Test drive for 10-15 minutes and recheck for any warning lights or rough running.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$500 (parts + labor)

DIY Cost: $40-$320 (parts only)

You Save: $140-$180+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
