🔧 X3 - Ignition Coil Replacement

Ignition coils sit on top of each spark plug and create the high-voltage spark your engine needs to run smoothly. Replacing a weak coil can fix misfires, rough idle, flashing check-engine light, and loss of power.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

Assumption: Typical F25 X3 28i (N20) top-cover access.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully; coils sit on a hot valve cover.
• ⚠️ Keep ignition OFF and key away from the vehicle while unplugging coils.
• ⚠️ Do not pull on wires—only pull on the connector body.
• ⚠️ If you smell fuel or see damaged wiring, stop and repair that first.
• ⚠️ Battery disconnect is not required, but avoid metal tools across terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim removal tool
• 1/4" drive ratchet
• 3" extension (1/4")
• 8mm socket (1/4")
• 10mm socket (1/4")
• Torx T20 bit
• Torx T25 bit
• Torque wrench (in-lb or small Nm range)
• Ignition coil puller (specialty)
• OBD-II scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil - Qty: 1 (or replace all 4)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool until you can comfortably touch the plastic engine cover.
• If you’re replacing only one coil: use your OBD-II scan tool to note the misfire cylinder (example: “misfire cylinder 2”).
• Lay out parts in order so nothing falls into the engine bay.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine top cover

• Use a trim removal tool to gently pry up the corners of the engine cover (it’s held by rubber grommets on most setups).
• Lift the cover straight up and set it aside.

Step 2: (If needed) Move the cowl/microfilter housing for more room

• If your hands don’t fit comfortably, remove the front plastic cowl pieces.
• Use a Torx T20 bit or Torx T25 bit to remove the fasteners, then lift the housing up and out of the way.
• Go slow; plastic tabs can snap.

Step 3: Unplug the ignition coil electrical connector

• Pick the coil you’re replacing (or start at cylinder 1 and work across).
• BMW connectors typically use a locking lever: use your fingers or a trim removal tool to lift the lock, then pull the connector straight off.
• Locking lever = the flip-up “handle” that releases the plug.

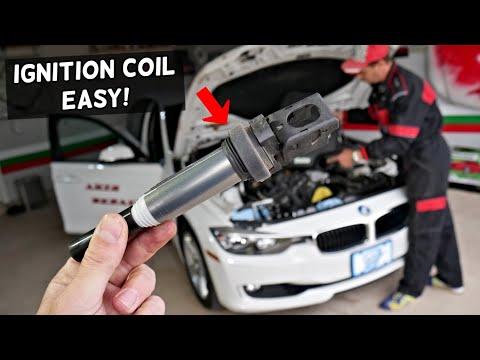

Step 4: Remove the ignition coil

• Grip the coil and twist it gently left-right to break the seal.
• Pull straight up to remove it.
• If it’s stuck, use an ignition coil puller (specialty) to pull evenly without cracking the coil.
• Don’t pry on the valve cover.

Step 5: Prep and install the new coil

• Put a very small smear of dielectric grease inside the new coil boot (the rubber part). This helps sealing and future removal.
• Line the coil up with the spark plug tube and press straight down until you feel it seat fully.

Step 6: Reconnect the electrical connector

• Push the connector on straight.
• Flip the locking lever down until it clicks/locks.

Step 7: Reinstall covers and any cowl parts

• Reinstall any cowl/microfilter housing fasteners using a Torx T20 bit or Torx T25 bit.
• If you removed small bolts/nuts, tighten with a torque wrench: Torque to 8 Nm (71 in-lbs) unless the fastener is clearly larger (then snug, not tight).
• Reinstall the engine cover by lining up the grommets and pushing down firmly by hand.

---

✅ After Repair

• Start the engine and let it idle for 60 seconds. It should run smooth with no shaking.
• Use your OBD-II scan tool to clear fault codes and confirm the misfire counter stays at zero (if your tool shows it).
• Test drive 10-15 minutes. Recheck for a check-engine light.
• If misfire returns on the same cylinder, the next common item is the spark plug for that cylinder.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $45-$300 (parts only, depending on replacing 1 vs all 4)

You Save: $150-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.2 hours.

---
