🔧 Outback - Headlight Bulb Replacement

You can replace both headlight bulbs from under the hood without removing the bumper. The main challenge is tight space behind each headlight, so you’ll make a little room by moving a couple items.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

Assumption: Your Outback has halogen high beams; low beams may be halogen or HID—steps include both paths.

---

⚠️ Safety & Precautions

• ⚠️ Turn lights OFF, remove key, and let bulbs cool 10+ minutes before touching.
• ⚠️ Do not touch bulb glass with bare fingers; skin oils shorten bulb life.
• ⚠️ If equipped with HID low beams, the system can produce high voltage—do not power the lights with caps/connectors removed.
• ⚠️ Wear safety glasses; tight spaces can cause slips.
• ⚠️ Battery disconnect is not required for halogen; for HID, disconnecting the negative terminal is safer.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Trim clip removal tool
• Needle-nose pliers
• Nitrile gloves
• Safety glasses
• Flashlight
• Isopropyl alcohol (70%+)
• Clean lint-free cloth

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low beam headlight bulb (choose correct type: H11 halogen or D4S HID) - Qty: 2
• High beam headlight bulb (typically 9005 halogen) - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and support it securely.
• Put on nitrile gloves (thin gloves that keep oils off the bulb glass).
• If your low beams are HID: use the 10mm socket to disconnect the battery negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which bulb you’re replacing (low vs high)

• Use a flashlight to look behind the headlight assembly.
• Low beam is the projector lens (main night driving beam). High beam is the reflector (also used for DRL on many Subarus).
• Tip: Bulb type is often molded on the dust cap.

Step 2: Create working space (passenger side)

• Use the trim clip removal tool to pop up the intake snorkel clips (front passenger area).
• Use needle-nose pliers if a clip center pin is stubborn.
• Lift the snorkel/duct up and set it aside.

Step 3: Create working space (driver side)

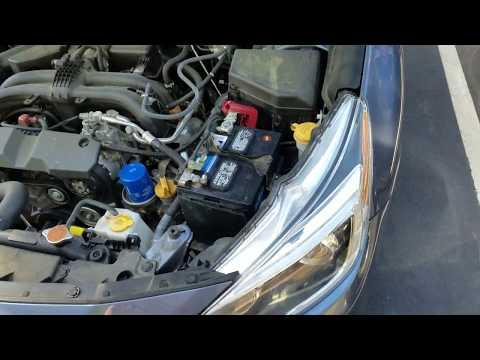

• If access is tight, use the 10mm socket, ratchet, and extension to loosen the battery hold-down and gently shift the battery slightly (do not strain cables).
• If you disconnected the negative terminal for HID safety, keep it disconnected until bulbs are installed.

Step 4: Remove the dust cap (if equipped)

• Reach behind the headlight and twist the rear cap counterclockwise by hand.
• Set the cap somewhere clean so dirt doesn’t fall inside later.

Step 5: Disconnect the bulb electrical connector

• Press the connector tab and pull straight back (wiggle gently).
• If it’s stuck, use needle-nose pliers carefully on the connector body (not the wires).

Step 6A: Replace LOW BEAM (Halogen H11 path)

• Twist the bulb counterclockwise about 1/8 turn and pull it out.
• Install the new H11 bulb the same way: align tabs, insert, then twist clockwise to lock.
• If you accidentally touched the glass, clean it using isopropyl alcohol (70%+) and a clean lint-free cloth.

Step 6B: Replace LOW BEAM (HID D4S path)

• With the battery negative still disconnected, remove the HID bulb retainer (varies by housing: a twist-lock base or a metal spring clip).
• If it’s a spring clip: push in and unhook it by hand; it’s a wire “latch” that holds the bulb tight.
• Carefully pull the HID capsule straight out without touching the glass.
• Install the new D4S capsule fully seated and re-secure the retainer exactly as it was.
• Tip: Do not swap left/right used HID capsules; replace in pairs.

Step 7: Replace HIGH BEAM (typically 9005)

• Twist the high beam bulb counterclockwise and remove it.
• Install the new 9005 bulb: align tabs, insert, and twist clockwise to lock.
• Reconnect the electrical connector until it clicks.

Step 8: Reinstall dust caps and restore moved components

• Reinstall the rear dust cap(s) by hand and twist clockwise until fully seated.
• Reinstall the intake snorkel and push the clips back in using the trim clip removal tool (or fingers).
• If you shifted the battery, reposition it and tighten the hold-down with the 10mm socket.

Step 9: Reconnect battery (if disconnected) and test

• Reconnect the negative terminal using the 10mm socket.
• Turn headlights ON and verify: low beams, high beams, and DRL behavior.

---

✅ After Repair

• Confirm both low beams match in color/brightness (mismatched color is common if only one HID capsule is replaced).
• Check that dust caps are fully seated to prevent moisture in the housing.
• At night, verify beam aim looks normal; if one side looks off, the bulb may not be locked in place.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$350 (halogen) / $250-$700 (HID) (parts + labor)

DIY Cost: $30-$120 (halogen) / $140-$400 (HID) (parts only)

You Save: $90-$300+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
