🔧 Equinox - Ignition Coils & Headlight Bulbs Replacement

You’ll be replacing all four ignition coils on your Equinox, plus both front headlight bulbs. This will restore smooth engine performance and bring your headlights back to full brightness.

Difficulty Level: Beginner | Estimated Time: 2–3 hours total

---

⚠️ Safety & Precautions

• 🛑 Always work with the engine completely cool to avoid burns.
• 🛑 Turn ignition OFF and remove the key before unplugging ignition coils.
• 🛑 Disconnect the negative battery cable when working near electrical connectors if you feel unsure.
• 🛑 Use jack stands when lifting the front of the vehicle; never rely only on a jack.
• 🛑 When working in the wheel well for headlight bulbs, keep the vehicle in Park with the parking brake set.
• 🛑 Do not touch the glass part of new bulbs with bare fingers; oils can make them fail early.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 8mm socket
• 🧰 1/4" drive ratchet
• 🧰 1/4" drive extension (3"–6")
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (inch-lb and ft-lb capable)
• 🧰 Flathead screwdriver (medium)
• 🧰 Trim clip removal tool (specialty)
• 🧰 Needle-nose pliers
• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Wheel chocks
• 🧰 Work light or flashlight
• 🧰 Mechanic gloves
• 🧰 Safety glasses
• 🧰 Clean shop rag

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Ignition coil set (2.4L engine, 4 coils) - Qty: 1 set (Replace all 4)
• 🔩 Dielectric grease (for electrical connectors) - Qty: 1 small tube
• 🔩 Front low beam headlight bulbs (H11) - Qty: 2 (Replace in pairs)
• 🔩 Front high beam headlight bulbs (9005) - Qty: 2 (optional but recommended as a pair)
• 🔩 Plastic push-pin clips for front inner fender liner - Qty: 4–8 (optional, in case old clips break)

---

📋 Before You Begin

• 🚗 Park the Equinox on level ground, shift to Park, set the parking brake, and turn the ignition OFF.
• 🔌 If you want maximum safety, disconnect the negative battery terminal using a 10mm socket.
• 🛞 For headlight bulbs, you’ll be working through the front wheel wells; slightly turn the steering wheel to give more space on each side.
• 💡 Keep a small container handy to hold bolts and plastic clips so you don’t lose them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Part A: Ignition Coil Replacement

Step 1: Remove engine cover

• Open the hood and support it securely.
• The plastic engine cover sits on top of the engine and is held by rubber grommets.
• Grasp the cover with both hands and pull straight upward at the corners to release it. No tools usually needed.
• Set the cover aside in a safe place.

Step 2: Locate ignition coils

• The 2.4L engine uses four individual ignition coils mounted on top of the engine, one over each spark plug.
• They are black rectangular pieces with electrical connectors at the rear, running along the top of the engine.

Step 3: Disconnect the first ignition coil connector

• Choose one coil to start with (front of engine, passenger side is cylinder 1).
• Press down the plastic locking tab on the coil’s electrical connector with your finger or a flathead screwdriver.
• Gently pull the connector straight off the coil.
• Do one coil at a time to avoid mix-ups.

Step 4: Remove the ignition coil

• Use a 10mm socket with a 1/4" drive ratchet and extension to remove the single bolt holding the coil to the valve cover.
• Lift the coil straight up and out of the spark plug tube. You may need to twist it gently while pulling.
• Inspect the old coil boot for oil or corrosion. If you see oil, the spark plug tube seal may be leaking.

Step 5: Install the new ignition coil

• Apply a very thin smear of dielectric grease inside the rubber boot of the new coil.
• Insert the new coil into the spark plug tube, pushing down firmly until it seats fully on the spark plug.
• Reinstall the coil bolt using the 10mm socket and 1/4" drive ratchet.
• Tighten to 10 Nm (89 in-lbs) using a 3/8" drive torque wrench set to inch-pounds.

Step 6: Reconnect the ignition coil connector

• Push the electrical connector back onto the coil until you hear or feel a click.
• Gently tug the connector to make sure it is locked in place.

Step 7: Repeat for remaining coils

• Repeat Steps 3–6 for the other three coils, one at a time.
• Always fully seat the coil before tightening the bolt.
• Consistent work pattern helps avoid missed connectors.

Step 8: Reinstall engine cover

• Align the engine cover over the mounting pegs on top of the engine.
• Press down firmly at each corner until it snaps into the rubber grommets.
• No torque spec here; it just presses on.

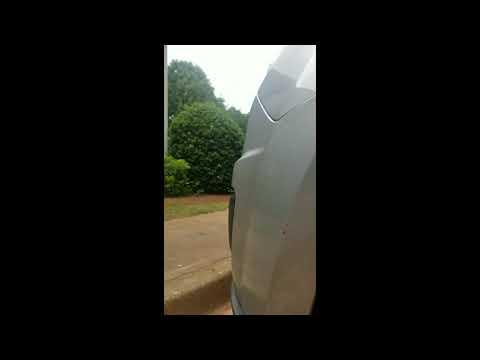

Part B: Front Headlight Bulb Replacement (through wheel well)

Step 9: Prepare the vehicle and access area

• Loosen the front wheel lug nuts 1/2 turn on the side you’ll start with using the appropriate lug wrench (not listed above; your vehicle’s tire tool works).
• Position wheel chocks behind the rear wheels.
• Use a floor jack to lift the front corner at the factory jacking point, then support it with a jack stand.
• Remove the front wheel completely for the best access (optional but highly recommended for a beginner).

Step 10: Remove inner fender liner fasteners

• Turn the steering wheel fully away from the side you’re working on to open space inside the wheel well (if you chose not to remove the wheel).
• Locate the plastic push-pin clips in the front portion of the inner fender liner (near the bumper).
• Use a trim clip removal tool or flathead screwdriver to gently pry up the center of each clip, then pull the whole clip out.
• If there are any small screws, remove them with an 8mm socket and 1/4" drive ratchet.

Step 11: Pull back the inner fender liner

• Gently pull the front edge of the liner back to create an opening.
• Use a clean shop rag wedged between the liner and suspension to hold it open if needed.
• Now you should see the rear of the headlight housing with round plastic covers.

Step 12: Remove low beam bulb (H11)

• Identify the low beam bulb cover (usually the more inboard or lower one).
• Twist the round plastic cover counterclockwise by hand to remove it.
• Reach inside and locate the bulb base.
• Twist the bulb base counterclockwise about 1/4 turn and pull it straight out of the housing.
• Press the tab on the bulb’s electrical connector and unplug the old bulb.

Step 13: Install new low beam bulb

• Without touching the glass, connect the new H11 low beam bulb to the electrical connector until it clicks.
• Align the tabs on the bulb with the slots in the headlight housing.
• Insert the bulb and twist clockwise about 1/4 turn to lock it in.
• Reinstall the plastic cover by twisting it clockwise until snug.
• If you touch the glass, wipe with alcohol.

Step 14: Replace high beam bulb (9005) – optional but recommended

• Locate the high beam bulb cover (usually the more outboard or upper one).
• Twist the cover counterclockwise to remove it.
• Twist the old 9005 high beam bulb counterclockwise and pull out.
• Unplug the connector from the old bulb.
• Plug in the new 9005 bulb, then insert and twist clockwise to lock it.
• Reinstall the cover by twisting clockwise until secure.

Step 15: Reinstall inner fender liner and wheel

• Move the liner back into its original position.
• Reinstall all plastic push-pin clips by pushing them into the holes, then pressing the center pin flush.
• If any screws were removed, reinstall and snug them with an 8mm socket. These are just snug; do not overtighten.
• Reinstall the wheel (if removed), hand-thread the lug nuts, lower the vehicle with the floor jack, then torque the lug nuts in a star pattern to the correct spec (typically around 140 Nm (103 ft-lbs), confirm for your specific wheel if possible) using a 3/8" drive torque wrench.

Step 16: Repeat on the other side

• Repeat Steps 9–15 for the opposite side headlight so both sides are new and brightness matches.

---

✅ After Repair

• 🔌 Reconnect the negative battery cable with a 10mm socket if you disconnected it, and snug it to about 8–10 Nm (71–89 in-lbs).
• 🚙 Start the engine and listen for smooth idle; there should be no misfires or warning lights if the coils are installed correctly.
• 💡 Turn on low beams and high beams to confirm all bulbs work and both sides are equally bright.
• 🧪 Take a short test drive, including a quick acceleration, to confirm smooth power and no check engine light.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$650 (parts + labor) for ignition coils and both headlight bulbs

DIY Cost: $180–$280 (parts only)

You Save: $270–$370 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
