🔧 RAV4 - Headlight Bulb Replacement

On your RAV4, the headlight bulbs are serviced from inside the engine bay (behind each headlight housing). The job is mostly “twist-lock” and connector removal—no aiming changes are usually needed if you don’t remove the whole headlight assembly.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn headlights OFF and let bulbs cool 10+ minutes (they get extremely hot).
• ⚠️ Wear gloves and do not touch the new bulb glass with bare fingers (skin oil can shorten bulb life).
• ⚠️ If you must work near the battery terminal, remove jewelry and keep tools from bridging terminals.
• ⚠️ If you disconnect the battery, use a 10mm wrench and disconnect the negative (-) terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip removal tool
• 10mm socket
• 3/8" ratchet
• 6" extension
• 10mm wrench
• Clean microfiber towel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low beam headlight bulb (H11) - Replace in pairs - Qty: 2
• High beam headlight bulb (9005) - Replace in pairs - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the headlight switch to OFF and remove the key.
• Open the hood and use a flashlight to locate the rear of each headlight housing.
• Tip: Replace bulbs in pairs for matching color.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Decide which bulbs you’re replacing

• Use a flashlight to find the two bulb locations on the back of each headlight.
• Typically, the low beam is the bulb used most at night; the high beam is the brighter “brights” bulb.
• Tip: If only one is out, still replace both sides.

Step 2: Make space (only if your hands don’t fit)

• If access is tight, use a trim clip removal tool to release any plastic clips holding an intake snorkel/cover in your way.
• If you need to loosen a bracket/air duct, use a 10mm socket with a 3/8" ratchet and 6" extension to remove the 10mm bolts, then move the piece aside.
• Tip: Don’t force your hand—make room first.

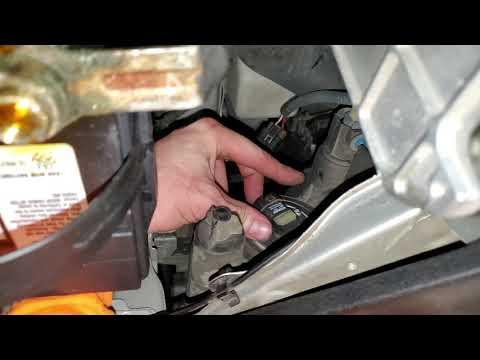

Step 3: Unplug the bulb connector

• Put on nitrile gloves and safety glasses.
• Press the connector lock tab and pull straight back to unplug the bulb.
• If it’s stubborn, wiggle gently—do not pull on the wires.

Step 4: Remove the old bulb (twist-lock)

• Grip the bulb base and rotate it counterclockwise about 1/4 turn, then pull it straight out.
• Use a flashlight to confirm the old bulb’s O-ring (rubber seal) isn’t stuck in the housing.

Step 5: Install the new bulb (do not touch the glass)

• Hold the new bulb by the base. If you accidentally touch the glass, wipe it with a clean microfiber towel.
• Line up the bulb tabs with the slots in the headlight housing, insert fully, then rotate clockwise to lock.
• The bulb should sit flat and secure—no wobble.

Step 6: Reconnect and reassemble

• Push the connector onto the bulb until it clicks.
• Reinstall any duct/cover you moved using the 10mm socket, 3/8" ratchet, and 6" extension.
• If you disconnected the battery, reconnect the negative (-) terminal using a 10mm wrench.

Step 7: Repeat on the other side

• Repeat Steps 2 through 6 for the matching bulb on the other headlight.

---

✅ After Repair

• Turn the headlights ON and confirm both sides work on low beam and high beam.
• Check the dash for any warning indicators.
• At night, park facing a wall and confirm both beams look even left-to-right.
• Tip: If one doesn’t light, recheck the connector click.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $30-$120 (parts only, depending on bulb type/brand)

You Save: $50-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
