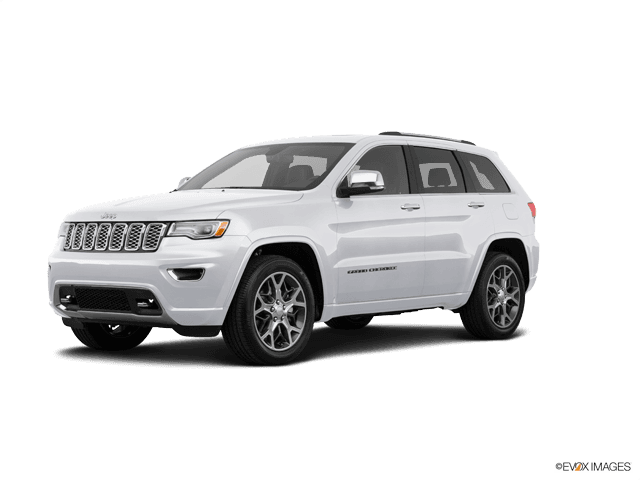

🔧 Grand Cherokee - Front Window Regulator Replacement

You’ll be removing the interior door panel, separating the glass from the regulator, swapping in a new regulator/motor assembly, then reassembling and testing. This will fix slow, noisy, or stuck power windows caused by a failed regulator or motor.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working on power windows to avoid accidental switch activation or short circuits.
• ⚠️ Wear safety glasses; the glass can shift unexpectedly when detached from the regulator.
• ⚠️ Support the window glass with painter’s tape and/or a helper so it does not fall into the door or slam down.
• ⚠️ Do not slam the door while the glass is loose or removed; you can crack the glass.
• ⚠️ Keep screws and clips organized; many are different lengths and types.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 8mm socket
• 🛠️ Ratchet with 3/8" drive
• 🛠️ 3" socket extension
• 🛠️ Torx T20 screwdriver
• 🛠️ Torx T30 screwdriver
• 🛠️ Trim removal tool set (plastic)
• 🛠️ Flathead screwdriver small
• 🛠️ Phillips screwdriver medium
• 🛠️ Needle-nose pliers
• 🛠️ Panel clip removal tool
• 🛠️ Masking or painter’s tape 2"
• 🛠️ Utility knife sharp
• 🛠️ Torque wrench 5–20 Nm range
• 🛠️ Work light LED
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front window regulator with motor assembly (driver side) - Qty: 1
• 🔩 Front window regulator with motor assembly (passenger side) - Qty: 1
• 🔩 Front door vapor barrier butyl sealant strip - Qty: 1 per door
• 🔩 Front door trim panel push clips - Qty: 6–10 per door (recommended)
• 🔩 Multi-purpose grease (light) - Qty: small tube
• 🔩 Electrical contact cleaner spray - Qty: 1 (optional)

---

📋 Before You Begin

• Park the Grand Cherokee on level ground, set the parking brake, and turn ignition off.
• Lower the affected window until you can see the glass mounting points through the access holes (if the regulator still moves). If the window is stuck, leave it where it is.
• Open the hood and disconnect the negative battery terminal using a 10mm socket, then move the cable aside so it can’t spring back.
• Have a clean blanket or foam pad ready to rest the door panel on once removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which front door you’re working on

• Decide if you’re replacing the regulator on the driver front, passenger front, or both. The process is almost the same for both sides.
• Do one door at a time so you can look at the other as a reference.

Step 2: Remove trim covers and visible screws

• Use a plastic trim removal tool to gently pry off the small trim cover behind the interior door handle; it hides a screw.
• Use the same trim tool to pop off the rubber mat in the pull handle pocket (armrest grab handle).
• Use a Torx T20 screwdriver to remove the screw behind the interior handle.
• Use a Torx T30 screwdriver to remove the screw in the pull handle pocket.
• Check along the bottom edge of the door panel; remove any additional Torx T20 screws you see.

Step 3: Release the door panel clips

• Insert a plastic trim removal tool between the lower edge of the door panel and the metal door.
• Pry gently to release the first clip; you will hear it pop.
• Work your way along the sides and bottom, using the trim tool or a panel clip removal tool to pop all clips free.
• Once all clips are released, lift the whole panel straight up and off the window sill.
• Lift, don’t pull straight out, to avoid breaking upper hooks.

Step 4: Disconnect electrical connectors and door handle cable

• Rest the panel on a blanket or support it while still close to the door.
• Use your flathead screwdriver small to gently lift locking tabs on the electrical connectors for:
  • Power window/mirror switch
  • Door lock switch
  • Courtesy light (bottom of panel)
  • Memory seat/bass speaker connector, if present
• For the door handle cable, flip the plastic retainer open with the flathead screwdriver, then unhook the cable end from the handle lever.
• Set the door panel aside in a safe place.

Step 5: Remove the vapor barrier (plastic moisture sheet)

• The vapor barrier is the plastic sheet stuck to the metal with sticky butyl glue.
• Use your utility knife sharp to carefully cut through the sealant at one corner, then peel the plastic back slowly by hand.
• Try not to tear it; peel enough to expose the large openings and full regulator assembly.
• Do not cut any wires hidden behind the plastic.

Step 6: Secure the window glass

• With the glass still in the door frame, use masking or painter’s tape 2" to tape the glass to the door frame at the top:
  • Run at least three long strips from the outside of the glass over the top of the door frame to the inside.
• If the glass is stuck down, have a helper hold it while you work; you may need to move it manually later.

Step 7: Detach the glass from the regulator

• Look through the large access holes to locate the glass mounting clamps on the regulator (usually near the bottom of the glass).
• If necessary, briefly reconnect the negative battery cable, plug in the window switch, and turn ignition to RUN to move the window up or down until the clamp bolts are visible. Then disconnect the battery again.
• Use a 10mm socket with ratchet to loosen (do not remove fully) the clamp bolts that grip the glass.
• Gently push the glass upward by hand into the fully closed position and add more painter’s tape to hold it firmly.

Step 8: Remove the window regulator and motor assembly

• Disconnect the power connector from the window motor using your flathead screwdriver small to release the tab.
• Locate the regulator and motor mounting bolts around the inner door metal.
• Use a 10mm socket with ratchet and 3" extension to remove all the regulator and motor bolts (usually 6–8 bolts).
• Support the regulator with one hand while removing the last bolt so it doesn’t drop.
• Maneuver the regulator and motor out through the large access opening in the door.

Step 9: Prepare and install the new regulator

• Compare the old and new regulators to ensure they match (mounting holes, connector, track layout).
• Lightly grease any exposed metal tracks or sliders with multi-purpose grease (very thin film).
• Carefully feed the new regulator assembly into the door through the access opening.
• Align the bolt holes and loosely start all bolts by hand using your 10mm socket.
• Once all bolts are started, tighten them evenly with the 10mm socket and ratchet to snug, then torque:
  • Torque to 8 Nm (71 in-lbs) for regulator and motor bolts.
• Reconnect the motor electrical connector.

Step 10: Reattach the glass to the new regulator

• Reconnect the negative battery terminal with the 10mm socket.
• Temporarily plug the window switch connector back into the panel (you can hold the panel up with one hand or lean it gently).
• Turn ignition to RUN (do not start engine).
• Have a helper hold the glass while you carefully remove the painter’s tape.
• Using the window switch, move the regulator clamps to just below the glass’s mounting area, then turn the ignition OFF and disconnect the battery again.
• Lower the glass by hand into the clamps; make sure it sits properly in both clamps.
• Use your 10mm socket to tighten the clamp bolts:
  • Torque to 8 Nm (71 in-lbs).

Step 11: Test window operation (before reassembly)

• Reconnect the negative battery cable again with the 10mm socket.
• Turn ignition to RUN.
• Operate the window up and down several times using the door switch:
  • Check for smooth, quiet movement.
  • Make sure the glass stays in the tracks and seals properly at the top.
• If the glass tilts, loosen the clamp bolts slightly with the 10mm socket, adjust the glass, and retighten.
• Once satisfied, turn ignition OFF and disconnect the battery again before panel reassembly.

Step 12: Reinstall the vapor barrier

• If the original butyl seal is still tacky, press the vapor barrier back into place along the edges.
• If not, run a new bead of vapor barrier butyl sealant strip along the perimeter of the opening.
• Press the plastic sheet firmly into the sealant all around; make sure there are no large gaps.
• Good sealing keeps water out of the cabin.

Step 13: Reconnect door panel wiring and handle cable

• Bring the door panel close to the door.
• Reconnect all electrical connectors by hand until they click:
  • Window/mirror switches
  • Door lock switch
  • Courtesy light
  • Speaker connectors
• Clip the door handle cable back into its bracket and hook the cable end into the lever; close the plastic retainer.
• If any connector pins look dirty, clean with electrical contact cleaner spray and let dry.

Step 14: Reinstall the door panel

• Hook the top edge of the panel over the window sill first, making sure it sits in the groove.
• Align the plastic clips with their holes in the door metal.
• Firmly press around the perimeter of the panel with your hands to snap all clips back in.
• If any clips broke, replace them with new door trim panel push clips before installing.

Step 15: Reinstall screws and trim covers

• Reinstall the Torx screw behind the interior handle with a Torx T20 screwdriver and tighten snugly (do not overtighten).
• Reinstall the Torx screw in the pull handle pocket with a Torx T30 screwdriver and tighten snugly.
• Reinstall any lower edge Torx T20 screws.
• Snap the handle trim cover back into place by hand.
• Reinstall the rubber mat in the pull handle pocket.

Step 16: Final electrical reconnection and window reset

• Reconnect the negative battery terminal one last time with the 10mm socket and tighten:
  • Torque to 5 Nm (44 in-lbs) (snug, not crushed).
• Turn ignition to RUN.
• Reset the auto-up/auto-down function for that window:
  • Use the window switch to move the window fully up and hold the switch in the UP position for 2–3 seconds.
  • Move the window fully down and hold the switch in the DOWN position for 2–3 seconds.
• This teaches the system the window travel limits.

---

✅ After Repair

• Test all front windows from both the driver’s master switch and each individual door switch.
• Check that the door locks, mirror controls, and courtesy lights work properly.
• Drive at low speed and listen for any new rattles from the repaired door; if you hear one, the panel clips or screws may need tightening.
• Spray a little silicone spray on the window run channels if movement is still slightly stiff.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 per front door (parts + labor)

DIY Cost: $80–$180 per front door (parts only)

You Save: $270–$370 per door by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours per door.

---
