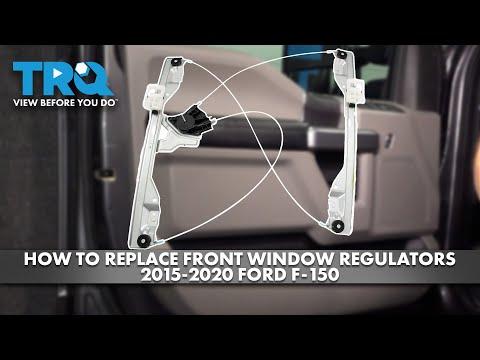

F-150 - Front Window Regulator Replacement 🪟

I’ll cover both front doors on your F-150. The steps are almost the same for driver and passenger sides.

Safety First ⚠️

• 🧤 Disconnect the battery: Remove the negative (–) cable before working on doors with power windows and airbags. This helps prevent accidental airbag deployment and shorts.
• 🪜 Work on level ground: Park, set the parking brake, and keep the key out of the ignition.
• 🪚 Watch for sharp edges: Door shells and regulator tracks can be sharp—wear gloves if you have them.

Tools & Supplies 🧰

• 🔧 Socket set: 7mm, 8mm, 10mm sockets, ratchet, and short extension.
• 🔩 Torx bits: T20 and T25 (for some trim screws).
• 🪛 Trim removal tool: A plastic pry tool to pop clips without scratching. This is a flat plastic lever used to remove panels.
• 🪛 Small flat screwdriver: For popping covers (wrap the tip with tape to avoid marks).
• 🔧 10mm wrench: For battery terminal and glass clamp bolts (if not using socket).
• 🧻 Painter’s tape: To hold the glass up while the regulator is out.
• 🧴 Shop towels & marker: To mark glass position and protect paint.

New parts:

• 🧩 Front window regulator with motor (left or right, side-specific).
• 🧩 Optional: new door panel clips if any break (common).

Key Torque Specs 🔩

• 🔧 Window glass clamp bolts: ~8–10 N·m (71–88 in-lb) – snug, not gorilla tight.
• 🔧 Regulator/motor mounting bolts: ~8–10 N·m as well.
• 🔧 Door panel screws: just snug by hand; do not overtighten into plastic.

Step 1 – Disconnect Battery 🔋

• 🧰 Open the hood.
• 🧰 Use a 10mm wrench to loosen the negative (–) battery terminal.
• 🧰 Lift the cable off and tuck it aside so it can’t spring back.

Step 2 – Remove Front Door Panel 🚪

These steps apply to each front door. Do one door at a time.

• 🪛 Remove trim covers:
  • Behind the interior door handle, there is a small trim cover. Pry it gently with a flat screwdriver or trim tool to reveal a screw.
  • On the armrest pull handle, there is a rubber or plastic insert in the grab pocket. Pry it up to reveal screws underneath.
  • At the mirror sail panel (small triangular trim at the front top of the door), gently pull it off; it’s held by clips.
• 🪛 Remove screws:
  • Remove the screws behind the interior handle (usually 7mm or T20).
  • Remove the screws in the armrest pocket (usually 7mm or 8mm).
  • Check along the bottom edge of the door panel for additional screws and remove them.
• 🪛 Pop the door panel clips:
  • Slide a trim tool between the panel and metal door at the bottom corner.
  • Twist gently to pop the first clip, then work your way around the sides and bottom.
  • Once all clips are loose, lift the panel straight up to unhook it from the top edge near the window.
• 🔌 Unplug wiring:
  • Support the panel with one hand.
  • Unplug the window switch connector and any other connectors (mirror, door lock, courtesy light). Press the tab and pull.
  • Unhook the door handle cable: flip the plastic retainer open and slide the cable end out of the handle.
  • Set the door panel somewhere safe.

Step 3 – Remove Water Shield / Vapor Barrier 💧

• 🧰 You’ll see a plastic sheet or foam barrier stuck to the door with butyl adhesive (sticky black glue).
• 🧰 Carefully peel it back starting at a corner. Try not to tear it; you’ll reuse it.
• 🧰 Peel it back enough to access the regulator, motor, and glass clamp openings.

Step 4 – Secure and Release the Glass 🪟

• 🧰 Reconnect the negative battery cable temporarily so you can move the window (if it still moves).
• 🧰 Turn key ON and use the switch to move the window until you can see the glass clamp bolts through the access holes in the inner door panel (usually near the middle).
• 🧻 Use painter’s tape on the outside of the glass to mark its original height if you like.
• 🔧 Turn key OFF and disconnect the battery again.
• 🔧 Use a 10mm socket to loosen (do not fully remove) the two glass clamp bolts on the regulator.
• 🖐️ Carefully lift the glass by hand all the way up into the fully closed position.
• 🧻 Use several strips of painter’s tape from the outside of the glass over the top of the door frame and down the inside to hold the glass up securely.

Step 5 – Remove the Old Regulator & Motor ⚙️

• 🔌 Unplug the window motor:
  • Find the motor (usually toward the front lower area of the inner door).
  • Press the tab and unplug the electrical connector.
• 🔧 Remove regulator and motor bolts:
  • Locate all the 10mm bolts holding the regulator tracks and motor to the door.
  • Remove the bolts for the motor and both vertical tracks.
• 🧰 Remove the regulator assembly:
  • Carefully maneuver the regulator and motor out through the large opening in the inner door.
  • Note the routing and orientation so you can install the new one the same way.

Step 6 – Install the New Regulator & Motor 🆕

• 🧩 Position the new assembly:
  • Feed the new regulator and motor into the door through the same opening.
  • Align the mounting holes in the tracks and motor with the holes in the door.
• 🔧 Install mounting bolts:
  • Start all the 10mm bolts by hand to avoid cross-threading.
  • Once all are started, tighten them evenly to about 8–10 N·m (snug with a small ratchet).
• 🔌 Reconnect the motor connector but leave the glass taped up for now.

Step 7 – Attach the Glass to the New Regulator 🪟

• 🔋 Reconnect the negative battery cable again.
• 🔌 Plug the window switch back into the door harness (you can leave the panel hanging or just hold the switch module).
• 🔧 Turn key ON and use the switch to move the regulator up or down until the glass clamp openings line up with the glass.
• 🧻 Remove the tape holding the glass and gently lower the glass into the clamps.
• 🔧 Tighten the two glass clamp bolts to about 8–10 N·m (just snug; overtightening can crack the glass).
• 🧪 Cycle the window up and down a few times to make sure it moves smoothly and doesn’t bind.
• 🔋 Turn key OFF and disconnect the battery again before reassembling.

Step 8 – Reinstall Vapor Barrier & Door Panel 🧩

• 🧴 Reattach the vapor barrier:
  • Press the plastic/foam barrier back into place, sealing all edges to keep water out of the cabin.
• 🔌 Reconnect door wiring and cable:
  • Reconnect all electrical connectors (window switch, mirror, courtesy light, etc.).
  • Reattach the door handle cable into the interior handle and lock the plastic retainer.
• 🪛 Hang the door panel:
  • Hook the top of the panel over the window ledge first.
  • Once aligned, press around the edges to snap all the clips back into the door.
• 🪛 Reinstall screws and trim:
  • Reinstall all screws in the armrest, behind the handle, and along the bottom.
  • Snap the trim covers and mirror sail panel back into place.

Step 9 – Final Test & Auto-Up/Down Reset 🔁

• 🔋 Reconnect the negative battery cable for good.
• 🔑 Turn key ON.
• 🧪 Test each front window from its own switch and from the driver master switch.
• 🔁 If auto-up/down doesn’t work:
  • Fully close the window and hold the switch in the UP position for about 2–3 seconds.
  • Then fully open the window and hold the switch in the DOWN position for 2–3 seconds.
  • This usually re-learns the limits on your F-150.

Tips & Tricks 💡

• 🧠 Take pictures of the door before and during disassembly so you remember where everything goes.
• 🧠 If a clip won’t seat, check that it’s not bent or left behind in the door—move it back to the panel.
• 🧠 Do the second front door right after the first while it’s fresh in your mind.

If you tell me which side you’re doing first (driver or passenger) and whether anything is broken (glass stuck, cable snapped, etc.), I can tailor a shorter checklist just for that door.
