🔧 Rogue - Front Window Regulator Replacement

You’ll be removing the interior door panel, unbolting the glass, and swapping the window regulator (the lift mechanism) and motor assembly on your Rogue’s front door. This guide applies to either front door; the steps are almost identical left or right.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before starting; the front doors contain side airbags and electrical connectors.
• ⚠️ Support the window glass with strong tape or a helper; if it drops, it can shatter.
• ⚠️ Work with the ignition OFF and key removed to avoid accidental window switch operation.
• ⚠️ Keep your hands clear of the regulator when powering it briefly for alignment; moving parts can pinch.
• ⚠️ Do not probe yellow airbag connectors; avoid pulling on airbag wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 8mm socket
• 🛠️ 1/4" drive ratchet
• 🛠️ 1/4" drive extension (3–6")
• 🛠️ Phillips #2 screwdriver
• 🛠️ Flathead screwdriver (small)
• 🛠️ Trim removal tool (plastic)
• 🛠️ Needle-nose pliers
• 🛠️ Masking tape or painter’s tape (1–2" wide)
• 🛠️ Razor blade or utility knife
• 🛠️ Torque wrench (inch-pound, 30–120 in-lbs range)
• 🛠️ Work light or flashlight
• 🛠️ Safety glasses
• 🛠️ Mechanic’s gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front window regulator with motor assembly (left or right, as needed) - Qty: 1
• 🔩 Front door panel push clips - Qty: 6–10 (have extras in case some break)
• 🔩 Butyl sealant rope for moisture barrier - Qty: 1 roll
• 🔩 Plastic vapor barrier sheet (if existing one tears badly) - Qty: 1
• 🔩 Dielectric grease (for electrical connectors) - Qty: small tube
• 🔩 Glass cleaner - Qty: 1
• 🔩 Shop towels or microfiber cloths - Qty: 2–4

---

📋 Before You Begin

• Park the Rogue on level ground, set the parking brake, and turn the ignition OFF.
• Open the door you’re working on fully for space and good lighting.
• Disconnect the negative battery terminal:
  • Use a 10mm socket to loosen the clamp and lift it off the battery post.
  • Wrap the terminal with a rag so it can’t spring back and touch the post.
• Lower the window (before disconnecting the battery, if still working) until you can later access the glass bolts through the door openings. If the regulator is already failed and the glass is stuck, you’ll secure it in place later with tape.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove trim covers and door handle screws

• Use a trim removal tool (plastic) to gently pry off the small plastic cover behind the interior door handle (where your fingers pull to open).
• Use a Phillips #2 screwdriver to remove the screw behind that cover.
• Pry off the small trim piece in the armrest grab pocket (bottom of the pull handle) with the trim removal tool and remove the screw there with the Phillips #2 screwdriver.
• Keep all screws in a cup so none are lost.

Step 2: Remove the window switch panel and disconnect it

• Use the trim removal tool to lift the window switch panel from the front edge and pop it out.
• Flip it over and press the locking tabs on the connectors with a flathead screwdriver (small), then unplug the connectors by hand.
• Set the switch panel aside somewhere clean.

Step 3: Release the door panel clips and remove the door panel

• Starting at the bottom edge of the door panel, slide the trim removal tool between the panel and the metal door frame.
• Pry gently to pop the plastic clips loose one by one. You’ll hear them “pop” as they release.
• Once the bottom and sides are free, lift the whole panel up and off the window ledge.
• Reach behind the panel and disconnect:
  • The interior door handle cable (usually a hooked cable; use your fingers or needle-nose pliers to unhook).
  • Any remaining electrical connectors (courtesy light, tweeter) using a flathead screwdriver (small) to lift tabs.
• Set the door panel somewhere safe where it won’t get stepped on.

Step 4: Remove the speaker (if blocking access)

• Use a Phillips #2 screwdriver or 10mm socket (depending on your Rogue’s speaker fasteners) to remove the screws or bolts holding the speaker.
• Pull the speaker out and unplug its connector by hand or with a flathead screwdriver (small) on the tab.
• Set the speaker aside.
• This opens a large access hole in the door.

Step 5: Peel back the vapor barrier carefully

• The vapor barrier is the thin plastic sheet stuck to the metal with sticky black butyl glue.
• Use your hands and a razor blade or utility knife to slowly cut and peel the butyl where needed so you can fold the plastic back and access the regulator and glass mounting points.
• Try not to tear the plastic; if it tears badly, you’ll replace it with new sheet and butyl later.

Step 6: Secure the glass in place

• If the window still moves, manually slide it up to the fully closed position from the bottom edge.
• Use several strips of masking tape or painter’s tape on the outside of the door:
  • Run the tape from the glass over the top of the door frame and down onto the inside skin of the door.
  • Use 4–6 strips to hold the glass securely.
• Use strong tape; cheap tape can let go.

Step 7: Lower the regulator to access the glass bolts (if possible)

• Reconnect the window switch temporarily:
  • Plug the main window switch back into its connector by hand.
  • Reconnect the negative battery cable with a 10mm socket and snug it.
• Turn the ignition to ON (engine off) and operate the window switch to move the glass mount brackets into position where you can see the glass clamp bolts through the door openings.
• Once the bracket bolts are visible, turn ignition OFF and disconnect the negative battery cable again with the 10mm socket.
• Unplug the window switch again and set it aside.
• If the regulator is dead and won’t move, skip this and go to the next step; you may have to loosen bolts blindly through the holes.

Step 8: Separate the glass from the regulator

• Locate the two glass clamp bolts (usually 10mm head) through the large openings in the door.
• Use a 10mm socket and 1/4" drive ratchet to loosen and remove these two bolts completely.
• Gently push up on the glass from the bottom edge and make sure it is fully seated in the top frame and properly supported by the tape.
• Do not slam or twist the glass; it can crack.

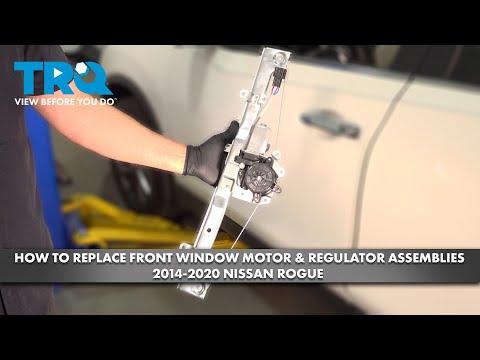

Step 9: Remove the old regulator and motor assembly

• Locate the regulator rail bolts and motor bolts (usually 10mm head):
  • There are typically 4–6 bolts around the vertical rails and 3 bolts on the motor.
• Unplug the window motor electrical connector by hand or with a flathead screwdriver (small) to press the tab.
• Use a 10mm socket, extension, and ratchet to remove all regulator and motor bolts. Keep track of bolt locations.
• Once all bolts are out, tilt and maneuver the entire regulator and motor assembly out through the largest access opening in the door.
• Rotate the assembly slowly; don’t force it.

Step 10: Install the new regulator and motor

• Compare the new regulator to the old one on the bench to confirm same shape, bolt holes, and connector.
• Feed the new regulator and motor into the door through the same opening, aligning the rails with their original positions.
• Start all the regulator and motor bolts by hand to avoid cross-threading.
• Use a 10mm socket and ratchet to snug them evenly.
• Then use a torque wrench with 10mm socket to tighten:
  • Torque to 8 Nm (71 in-lbs) for regulator and motor bolts.
• Reconnect the motor electrical connector by hand; add a small dab of dielectric grease if available.

Step 11: Attach the glass to the new regulator

• Reconnect the negative battery cable with a 10mm socket and snug it.
• Plug the window switch back into its connector by hand.
• Turn ignition to ON, then use the window switch to move the regulator up or down until the glass mounting points line up with the holes in the door again.
• Turn ignition OFF and disconnect the negative battery cable again with the 10mm socket for safety.
• Remove the tape holding the glass, while holding the glass by hand so it doesn’t drop.
• Lower the glass gently into the regulator clamps.
• Install the two glass clamp bolts with a 10mm socket and ratchet, then torque with a torque wrench:
  • Torque to 8 Nm (71 in-lbs) for glass clamp bolts.

Step 12: Test the window operation

• Reconnect the negative battery cable with a 10mm socket and tighten fully.
• Turn ignition to ON.
• Operate the window switch and run the glass up and down several times:
  • Listen for grinding or binding.
  • Make sure the glass moves smoothly and seats properly at the top and bottom.
• If the glass tilts or binds, loosen the regulator bolts slightly with a 10mm socket, adjust the rails by hand, and retighten to 8 Nm (71 in-lbs), then retest.
• Turn ignition OFF when satisfied.

Step 13: Reinstall the vapor barrier and speaker

• Press the vapor barrier plastic back into its original position.
• If the butyl is no longer sticky, apply fresh butyl sealant rope by hand around the edges and press the plastic into it all around the perimeter to seal out water.
• Reinstall the speaker:
  • Reconnect the speaker connector by hand.
  • Install screws or bolts with a Phillips #2 screwdriver or 10mm socket and snug them.
  • Torque to 5 Nm (44 in-lbs) if using a torque wrench.

Step 14: Reinstall the door panel

• Reconnect any electrical connectors (courtesy light, tweeter) by hand.
• Reattach the interior door handle cable to the handle lever using your fingers or needle-nose pliers.
• Hang the top of the door panel over the window ledge first, then swing the bottom in toward the door.
• Align the plastic clips with their holes and press firmly around the edges with your hands until all clips snap into place.

Step 15: Reinstall switch panel and trim pieces

• Reconnect the main window switch connector by hand and push the switch panel down into place until it snaps in.
• Reinstall the screws:
  • Use a Phillips #2 screwdriver to reinstall the screw in the armrest pocket and the screw behind the interior handle trim.
  • Torque to 2–3 Nm (18–27 in-lbs) if using a torque wrench; just snug by hand if not.
• Snap the small plastic covers back over the screws using your fingers.

---

✅ After Repair

• Turn ignition ON and test all window functions on that door:
  • Auto up/down (if equipped) and manual control.
• Lock and unlock the doors to confirm the interior handle and lock work normally.
• Check from outside: ensure the glass seals cleanly against the weatherstrip with no gaps.
• Listen while driving at low speed for wind noise around the repaired window; if present, recheck glass alignment.
• Clean fingerprints from the glass with glass cleaner and a towel.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 per front window (parts + labor)

DIY Cost: $90–$180 per front window (parts only)

You Save: $260–$370 per window by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours per door.

---
