🔧 Front Window Regulator - Replacement

Replace the front door window regulator if the glass sticks, drops into the door, or moves crooked. On your Silverado, the regulator sits inside each front door and works with the window motor and glass to raise and lower the window. If both front regulators are worn, replace one side at a time and repeat the same steps on the other door.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours per door

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before removing the door panel. This prevents accidental airbag or switch damage.
• The front door contains a side airbag area. Do not probe yellow connectors or wiring.
• Support the glass with tape before removing the regulator so the window does not drop.
• Use care around sharp metal edges inside the door.
• Keep the ignition off during removal and installation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 10mm socket
• Torx T15 screwdriver
• Torx T30 screwdriver
• Ratchet
• Short extension
• Trim panel tool
• Needle-nose pliers
• Pick tool
• Painter's tape
• Gloves
• Safety glasses
• Battery terminal wrench 10mm

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1 per side
• Front window motor - Qty: 1 only if needed
• Door panel retaining clips - Qty: 1 set
• Moisture barrier adhesive tape - Qty: 1 roll

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window until the regulator bolts are visible through the door access holes.
• If the glass will not stay up, tape it to the door frame before removing the door panel.
• Disconnect the negative battery cable with a 10mm wrench.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim panel tool to pry off the switch bezel and trim covers.
• Use a 7mm socket to remove the door panel screws.
• Carefully pop the clips loose around the edge of the panel with the trim panel tool.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the electrical connectors and set the panel aside.

Step 2: Remove the water shield

• Use a pick tool to start peeling back the moisture barrier.
• Slowly remove it so it can be reused or replaced cleanly.
• Keep the adhesive clean.

Step 3: Secure the window glass

• Raise the glass by hand to the fully closed position.
• Use painter's tape across the top of the door frame and glass to hold it in place.
• If the glass is already detached, carefully support it while working.

Step 4: Disconnect the regulator from the glass

• Use a 10mm socket and ratchet to loosen the glass-to-regulator fasteners through the access holes.
• Slide the glass fully up and tape it securely if needed.
• Do not let the glass hang loose.

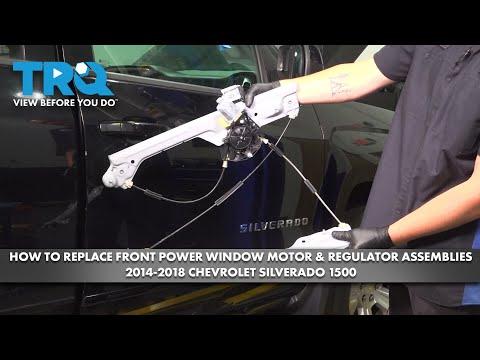

Step 5: Remove the window motor and regulator assembly

• Use a Torx T30 screwdriver to remove the regulator mounting bolts.
• Use a Torx T15 screwdriver for any smaller motor or bracket screws if equipped.
• Use a 10mm socket to remove any additional fasteners holding the assembly to the door.
• Lift and rotate the regulator out through the largest service opening in the door.

Step 6: Install the new regulator

• Feed the new regulator into the door opening the same way the old one came out.
• Start all bolts by hand before tightening.
• Torque to 8-10 Nm (71-89 in-lbs) on the regulator fasteners unless your replacement part instructions specify otherwise.
• If reusing the motor, transfer it carefully and tighten its screws evenly.

Step 7: Reattach the glass to the regulator

• Lower the glass carefully until the mounting holes line up with the regulator clamps.
• Install the glass fasteners with a 10mm socket.
• Torque to 8-10 Nm (71-89 in-lbs).
• Remove the painter's tape only after the glass is fully secured.

Step 8: Test window movement before reassembly

• Reconnect the battery temporarily and turn the ignition on.
• Use the window switch to run the glass up and down.
• Watch for binding, clicking, or uneven movement.
• If the glass moves smoothly, turn the ignition off and disconnect the battery again before reassembly.

Step 9: Reinstall the door panel

• Reinstall the moisture barrier and press the adhesive firmly in place.
• Reconnect all electrical connectors.
• Hook the top of the door panel over the window ledge.
• Press the clips into place around the perimeter.
• Reinstall the screws with the 7mm socket.

Step 10: Final test

• Reconnect the negative battery cable with the 10mm wrench.
• Cycle the window several times.
• Check that the glass seals evenly at the top.
• Repeat the same procedure on the other front door if needed.

---

✅ After Repair

• Make sure the window moves smoothly and stops correctly at full up and full down.
• Listen for rattles from inside the door.
• Check that all switches on the door panel work.
• Verify the moisture barrier is sealed so water stays inside the door.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 per door (parts + labor)

DIY Cost: $80-$180 per door (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours per door.

---
