🔧 Equinox - Front Window Regulator Replacement

You’ll be removing the inner door panel, separating the glass from the old regulator, then installing a new regulator and putting everything back together. The steps are the same for driver and passenger front doors on your Equinox.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before starting to avoid accidental airbag or window motor activation.
• ⚠️ Your Equinox has a side airbag in the front door; do not probe or unplug yellow airbag connectors, and never use a test light on airbag circuits.
• ⚠️ Support the glass carefully when it’s detached from the regulator to prevent it from dropping and shattering.
• ⚠️ Wear safety glasses and gloves to protect from sharp metal edges inside the door.
• ⚠️ Only turn the ignition back on when the glass is safely supported and your hands are clear of the regulator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Ratchet handle 3/8"
• 🧰 7mm socket
• 🧰 10mm socket
• 🧰 Torx T20 driver
• 🧰 Torx T30 driver
• 🧰 Trim removal tool set (plastic)
• 🧰 Flathead screwdriver small
• 🧰 Phillips screwdriver #2
• 🧰 Needle-nose pliers
• 🧰 Panel clip removal tool
• 🧰 Torque wrench 3/8" drive (inch-lb and Nm scale)
• 🧰 Painter's tape 1" or 2"
• 🧰 Work light or flashlight
• 🧰 Safety glasses
• 🧰 Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front power window regulator with motor (driver side) - Qty: 1
• 🔩 Front power window regulator with motor (passenger side) - Qty: 1 (if doing both)
• 🔩 Front door panel push clips - Qty: 10–15 (to replace any broken clips)
• 🔩 Butyl sealing tape / door vapor barrier adhesive - Qty: 1 roll
• 🔩 Dielectric grease (electrical connector grease) - Qty: small tube
• 🔩 Masking tape or painter's tape - Qty: 1 roll

---

📋 Before You Begin

• 📝 Park the Equinox on level ground, shift to Park, and set the parking brake.
• 📝 Lower the window until you can see the glass mounting bolts through the large door opening later (about mid-way down if possible).
• 📝 Turn ignition off and remove the key.
• 📝 Open the hood, use a 10mm wrench or 10mm socket to disconnect the negative battery cable from the battery. Move the cable aside so it cannot touch the terminal.
• 📝 Make sure you have a clean, dry place to lay the door panel and screws; use small containers to keep bolts organized.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove trim covers and access screws

• Use a trim removal tool set (plastic) to gently pop off the small trim cover behind the interior door handle (the area where you grab to open the door).
• Use the same trim removal tool to remove the rubber mat from the pull handle pocket (where you pull the door shut); there is often a screw underneath.
• Use a Torx T20 driver or Phillips screwdriver #2 (depending on screw type) to remove any screws behind the door handle trim and in the pull handle pocket. Keep track of their locations.
• Keep screws grouped by where they came from.

Step 2: Remove the front door panel

• Use a panel clip removal tool or trim removal tool at the bottom edge of the door panel to gently pry between the panel and door metal.
• Work around the edges, popping the plastic clips loose. You’ll hear them release; go slowly to avoid breaking them.
• Once the clips are free, lift the door panel straight up and away from the window sill using your hands.
• Support the panel while you reach behind to disconnect electrical connectors: use your needle-nose pliers or fingers to release tabs on the window switch connector and any courtesy light connector.
• Set the panel on a clean, soft surface to avoid scratching it.

Step 3: Remove the inner water shield / vapor barrier

• The vapor barrier is the plastic sheet stuck to the metal door with sticky butyl adhesive; it keeps water out of the cabin.
• Use your trim removal tool or fingers to gently peel the plastic sheet away from the metal, starting at a corner. Try not to tear it.
• Peel it back enough to fully expose the window regulator and motor and the large opening in the door. You can tape it out of your way with painter's tape.
• Do not remove or disturb any yellow airbag wiring.

Step 4: Secure the glass before loosening it

• Make sure the window is somewhere near mid-height so you can access the glass mounting bolts through the door opening. If it’s too high or low, you’ll adjust it in the next step.
• From the outside of the door, use painter's tape to tape the glass to the upper door frame: run several strips from the outside of the glass, over the top frame, and down inside. This holds the glass once it’s free from the regulator.
• Use at least 3–4 wide strips of tape.

Step 5: Reconnect battery briefly and move glass (if needed)

• If the glass is not positioned where you can see the clamp bolts, temporarily reconnect the negative battery cable using your 10mm socket.
• Turn the ignition to ON without starting the engine.
• Use the window switch to move the window until the glass clamp bolts line up with the large access holes in the door metal (you’ll see them through the inner opening).
• Turn ignition OFF and disconnect the negative battery cable again with the 10mm socket.
• Re-check that the painter's tape is secure.

Step 6: Separate the glass from the regulator

• Through the access hole, locate the two glass clamp bolts that hold the glass to the regulator sliders (usually 10mm heads).
• Use a 10mm socket and ratchet to loosen and remove these bolts while supporting the glass with one hand if possible.
• Once both bolts are removed, carefully push the glass fully up into the door frame by hand and add extra painter's tape to secure it firmly in the fully up position.
• Do not let the glass rest on the regulator now.

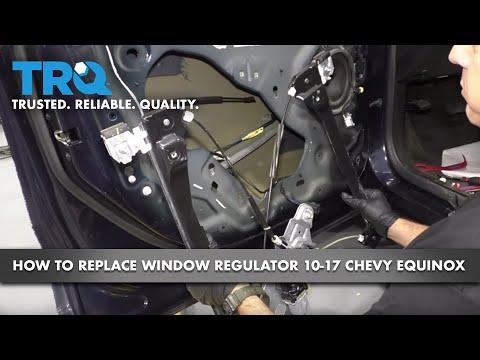

Step 7: Remove the old window regulator and motor

• Locate the regulator mounting bolts (several 10mm bolts around the vertical tracks and possibly the motor).
• Use a 10mm socket to remove all regulator and motor bolts. Note their locations.
• Disconnect the window motor electrical connector by pressing the locking tab and pulling it off by hand or with needle-nose pliers if needed.
• Carefully maneuver the regulator and motor assembly out through the large opening in the inner door using your hands; rotate as needed to clear the window tracks.
• Watch for sharp metal edges inside the door.

Step 8: Prepare and install the new regulator

• Compare the new regulator and motor to the old one on a bench to confirm same shape, mounting points, and connector.
• If the motor is separate and must be swapped, move it from the old regulator to the new one using a Torx T30 driver or 10mm socket depending on fasteners, and tighten the screws to Torque to 10 Nm (89 in-lbs) with your torque wrench.
• Feed the new regulator and motor assembly into the door through the same large opening, carefully positioning it so the mounting holes line up with the door holes.
• Install the regulator and motor bolts by hand first, then tighten them with a 10mm socket to Torque to 10 Nm (89 in-lbs) using your torque wrench.
• Reconnect the window motor electrical connector, adding a small dab of dielectric grease to the terminals if available.

Step 9: Attach the glass to the new regulator

• Reconnect the negative battery cable using your 10mm socket.
• Turn ignition to ON.
• With one hand holding the glass lightly, slowly use the window switch to move the regulator sliders until the glass clamp openings align with the glass mounting points (make small movements only).
• Gently lower the glass down by hand into the regulator clamps while keeping the outside painter's tape on for safety.
• Install the glass clamp bolts with a 10mm socket and snug them, then torque to Torque to 10 Nm (89 in-lbs) using your torque wrench.
• Carefully remove the painter's tape from the glass and door frame.
• Test the window up and down several times with the switch, listening for smooth, non-binding movement.
• Turn ignition OFF and disconnect the negative battery cable again with the 10mm socket before reassembling the door.

Step 10: Reinstall the vapor barrier

• Smooth the original vapor barrier back into place on the door metal, pressing it firmly into the existing sticky butyl.
• If sections have lost adhesion or are torn, use butyl sealing tape to reseal around the edges so there are no gaps where water could enter the cabin.
• A good seal prevents water leaks and wind noise.

Step 11: Reinstall the door panel

• Lift the door panel into position using your hands, hooking the top edge over the window sill first.
• Reconnect all electrical connectors (window switch, door lock, courtesy light) by pushing them firmly into place. Add a light dab of dielectric grease if you have it.
• Align the plastic clips with their holes in the door; press around the edges of the panel with your hands until all clips snap into place.
• Reinstall the screws you removed earlier using a Torx T20 driver or Phillips screwdriver #2, snugging them to about Torque to 2 Nm (18 in-lbs) with your torque wrench if possible (just firm, not over-tight).
• Reinstall the trim covers behind the handle and the rubber mat in the pull pocket using your fingers.

Step 12: Final checks

• Reconnect the negative battery cable one last time using your 10mm socket and tighten to Torque to 5 Nm (44 in-lbs) with your torque wrench.
• Turn the ignition ON and check window operation: up, down, partial moves, and auto-down/auto-up if equipped.
• Listen for rattles or grinding; if you hear anything odd, stop and recheck that the glass bolts and regulator bolts are tight and that no wiring or plastic is caught in the mechanism.
• Confirm the door locks, mirror switch (if in the same panel), and courtesy light all work.

---

✅ After Repair

• ✅ Drive at low speed on a rougher road and listen for any new rattles from the repaired door.
• ✅ Check for wind noise or water leaks around the repaired door during your next wash or rain; re-seal the vapor barrier if needed.
• ✅ If the window has auto-up/auto-down, you may need to initialize it by holding the switch fully up for a few seconds after it reaches the top, then fully down and hold again (if your Equinox supports this behavior).
• ✅ Recheck the window operation over the next few days to ensure it continues to move smoothly.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 per front window (parts + labor)

DIY Cost: $90–$180 per front window (parts only)

You Save: $260–$370 per window by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours per door.

---
