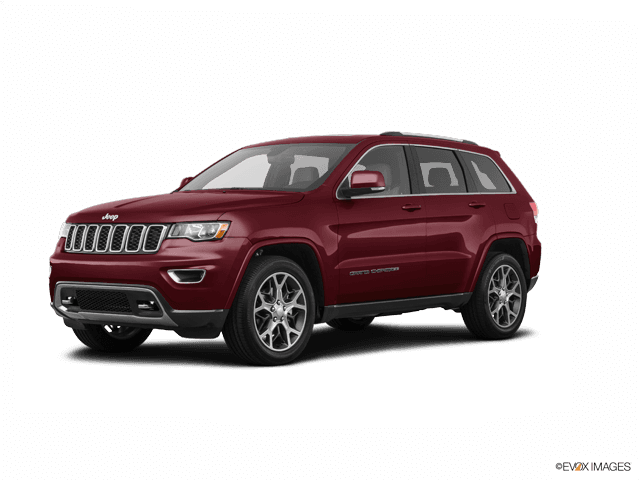

🔧 Grand Cherokee - Front Window Regulator Replacement

This repair replaces the front door window regulator, which is the scissor/cable mechanism that moves the glass up and down inside the door. On your Grand Cherokee, the regulator is mounted behind the inner door trim panel and must be separated carefully from the glass and power window motor.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electrical connectors to reduce the chance of short circuits or accidental airbag/SRS faults.
• ⚠️ The front door has electrical wiring for the window switch, mirror, locks, and speaker. Pull connectors by the plug body, not the wires.
• ⚠️ Support the glass before unbolting it from the regulator. If unsupported, it can drop and break.
• ⚠️ Wear gloves. Door panels and inner sheet metal can have sharp edges.
• ⚠️ Do not slam the door while the trim panel or glass mounting hardware is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 7mm socket
• Ratchet
• 6-inch extension
• Torx T20 screwdriver
• Torx T30 screwdriver
• Phillips screwdriver
• Plastic trim removal tool set
• Panel clip removal pliers
• Pick tool
• Painter's tape
• Torque wrench inch-pound
• Torque wrench foot-pound
• Work light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1 per door
• Front door trim panel clips - Qty: As needed
• Butyl sealing tape - Qty: 1 roll

---

📋 Before You Begin

• Park your Grand Cherokee on level ground and set the parking brake.
• Turn the ignition off and remove the key fob from the vehicle.
• Lower or raise the affected window until the glass clamp bolts are accessible if the regulator still moves.
• If the window will not move, you may need to loosen the regulator first and carefully reposition the glass by hand.
• Use painter's tape to secure the window glass to the upper door frame before removing the regulator.
• Disconnect the negative battery cable with a 10mm socket and wait 2 minutes before unplugging door connectors.
• A window regulator is the metal and cable mechanism that carries the glass; the motor is the electric part that powers it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Open the hood and use a 10mm socket with a ratchet to loosen the negative battery terminal.
• Move the negative cable aside so it cannot spring back onto the battery post.
• Wait 2 minutes before working on the door wiring.

Step 2: Remove the Front Door Switch Panel

• Use a plastic trim removal tool set to gently lift the window switch panel from the armrest.
• Unplug the electrical connectors by pressing the locking tabs with a pick tool.
• Tip: Take a photo before unplugging.

Step 3: Remove Door Trim Screws

• Use a pick tool to remove small screw covers in the pull handle and door handle areas.
• Use a Torx T30 screwdriver or correct fitted driver to remove the larger door pull fastener if equipped.
• Use a 7mm socket and ratchet to remove the lower and side door panel screws.
• Use a Phillips screwdriver if any aftermarket or replacement screws are installed.

Step 4: Release the Door Trim Panel

• Use a plastic trim removal tool set around the lower edge of the door panel to pop the retaining clips loose.
• Use panel clip removal pliers for any stubborn clips still attached to the door shell.
• Lift the door panel straight upward to unhook it from the window ledge.
• Disconnect the courtesy light, lock cable, and any remaining connectors by hand or with a pick tool.
• Set the trim panel somewhere safe so the leather and clips are not damaged.

Step 5: Remove the Water Shield Carefully

• Use a plastic trim removal tool set to peel the foam/plastic moisture barrier away from the door.
• Do not tear it. This shield keeps rainwater away from the inside door panel.
• If the sealant stretches or separates, use butyl sealing tape during reassembly.

Step 6: Support the Window Glass

• Raise the glass fully by hand if possible.
• Use several strips of painter's tape from the outside of the glass over the top door frame to hold the glass up.
• Add tape on the inside too if the glass feels loose.
• Tip: Use more tape than you think.

Step 7: Loosen the Glass from the Regulator

• Use a work light to look through the door access openings and locate the glass clamp bolts.
• Use a 10mm socket with a 6-inch extension to loosen the glass clamp bolts.
• Do not remove the glass unless necessary. Just loosen the clamps enough to free the glass.
• If your replacement regulator uses separate glass fasteners, keep the original bolts organized.

Step 8: Disconnect the Window Motor

• Use your hand or a pick tool to press the locking tab on the window motor connector.
• Pull the connector straight out from the motor.
• Inspect the connector for corrosion, melting, or loose terminals.

Step 9: Remove the Old Regulator Assembly

• Use a 10mm socket and ratchet to remove the regulator mounting bolts from the inner door shell.
• Use an 8mm socket if your replacement or door hardware uses smaller motor fasteners.
• Hold the regulator with one hand while removing the last bolt so it does not fall inside the door.
• Guide the old regulator out through the largest door access opening.
• Move slowly so the cables and tracks do not scratch the paint or snag the wiring harness.

Step 10: Transfer the Window Motor if Needed

• If your new regulator does not include a motor, use a Torx T20 screwdriver or 8mm socket to remove the motor from the old regulator.
• Install the motor onto the new regulator in the same orientation.
• Tighten the motor screws evenly with a Torque wrench inch-pound: Torque to 5 Nm (44 in-lbs).
• A torque wrench tightens bolts to a measured amount so small fasteners are not stripped.

Step 11: Install the New Regulator

• Guide the new regulator assembly into the door through the access opening.
• Start all regulator mounting bolts by hand first to prevent cross-threading.
• Use a 10mm socket to snug the regulator mounting bolts.
• Use a Torque wrench foot-pound: Torque to 10 Nm (89 in-lbs).
• Reconnect the window motor electrical connector until it clicks.

Step 12: Attach the Glass to the Regulator

• Carefully remove enough painter's tape to lower the glass into the regulator clamps.
• Make sure the glass sits evenly in the clamps and is not tilted forward or rearward.
• Use a 10mm socket to tighten the glass clamp bolts.
• Use a Torque wrench inch-pound: Torque to 8 Nm (71 in-lbs).
• Reapply painter's tape loosely until the function test is complete.

Step 13: Test the Window Before Reassembly

• Reconnect the negative battery cable with a 10mm socket.
• Temporarily plug in the window switch panel by hand.
• Turn the ignition to RUN without starting the engine.
• Use the window switch to move the glass down and up slowly.
• Watch through the door opening to make sure the glass stays in the tracks and does not bind.
• If the glass tilts, stop immediately and realign it in the clamps using a 10mm socket.

Step 14: Reinstall the Water Shield

• Turn the ignition off and disconnect the negative battery cable again with a 10mm socket.
• Press the moisture barrier back into place by hand.
• Use butyl sealing tape anywhere the original sealant no longer sticks.
• Make sure the lower edge is sealed so water drains inside the door correctly, not into the cabin.

Step 15: Reinstall the Door Trim Panel

• Reconnect the door handle cable, courtesy light, speaker, lock, mirror, and switch wiring by hand.
• Hang the top of the trim panel over the window ledge.
• Line up the panel clips and press around the edges by hand until each clip snaps in.
• Use a 7mm socket to reinstall the lower and side screws.
• Use a Torx T30 screwdriver to reinstall the larger handle fastener if equipped.
• Use a Torque wrench inch-pound: Torque small trim screws to 2.5 Nm (22 in-lbs).
• Snap the window switch panel back into the armrest by hand.

Step 16: Reconnect Battery and Initialize Auto-Up

• Reconnect the negative battery cable with a 10mm socket.
• Use a Torque wrench foot-pound: Torque battery terminal clamp to 5 Nm (44 in-lbs).
• Turn the ignition to RUN.
• Use the window switch to fully lower the window and keep holding the switch down for 2 seconds.
• Fully raise the window and keep holding the switch up for 2 seconds.
• Repeat once if the one-touch auto-up or auto-down does not work.

---

✅ After Repair

• ✅ Test the window from the driver master switch and the affected door switch.
• ✅ Confirm auto-up and auto-down work correctly after initialization.
• ✅ Check that the door lock, mirror switch, speaker, and courtesy light still work.
• ✅ Spray a small amount of water on the outside glass and confirm no water enters the cabin.
• ✅ Listen for clicking, grinding, or cable noise. Any unusual noise means the glass may be misaligned.
• ✅ Make sure the door panel is fully clipped in and does not rattle.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 per front door (parts + labor)

DIY Cost: $90-$250 per front door (parts only)

You Save: $260-$400 per door by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours per door.

---
