🔧 Charger - Front Window Regulator Replacement

The front window regulator is the track-and-cable (or scissor) mechanism that moves the glass up and down. Replacement typically involves removing the door panel, securing the glass, swapping the regulator (and sometimes the motor), then testing window operation before reassembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before unplugging door electronics to prevent shorts.
• 🧤 Wear gloves and safety glasses; the door has sharp edges inside.
• 🪟 Secure the window glass with tape before removing the regulator so it can’t drop.
• 🔥 Keep the key off and don’t cycle the window switch while hands are inside the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Phillips screwdriver #2
• Flat-blade screwdriver (small)
• Torx T20 screwdriver
• Torx T30 screwdriver
• 7mm socket
• 8mm socket
• 10mm socket
• Ratchet (3/8")
• Ratchet extension (3" to 6")
• Torque wrench (inch-pound)
• Painter’s tape (1.5" to 2")
• Pick tool (small)
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (LH driver or RH passenger) - Qty: 1
• Front window regulator motor (if not included with regulator) - Qty: 1
• Door trim panel retainer clips - Qty: 6-12
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition off.
• Lower the window until you can access the glass-to-regulator fasteners through the door access holes (if the window still moves).
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Have painter’s tape ready to hold the glass to the door frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set (plastic) to carefully pop off the trim pieces around the handle/armrest (work slowly to avoid cracking).
• Remove the visible screws using a 7mm socket and/or Phillips screwdriver #2 (locations vary by door trim pieces).
• Use a trim removal tool set (plastic) to release the panel clips around the perimeter, then lift the panel up and off the window ledge.
• Disconnect the electrical connectors using a pick tool (small) to lift locking tabs if needed. Support panel so wiring isn’t strained.

Step 2: Remove the vapor barrier (water shield)

• Use a flat-blade screwdriver (small) and your hands to peel the vapor barrier back slowly.
• If the butyl adhesive is damaged or won’t reseal, plan to use butyl tape during reassembly.

Step 3: Secure the window glass

• Raise the glass by hand to the full-up position if it’s loose (or leave it up if it’s already up).
• Use painter’s tape (1.5" to 2") across the top of the door frame and onto the glass in multiple strips to hold it in place.
• If you can’t access the glass clamps, you may need to temporarily reconnect the window switch, reconnect the battery, move the glass, then disconnect the battery again.

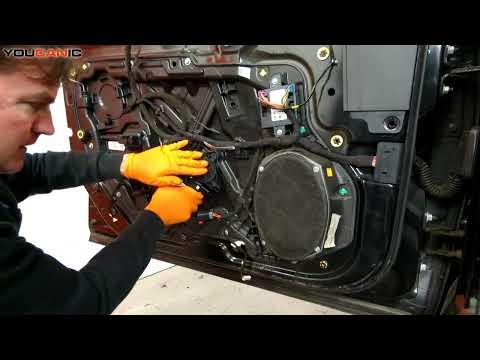

Step 4: Disconnect the window regulator motor (if equipped separately)

• Locate the regulator motor electrical connector and unplug it by hand or with a pick tool (small) for the lock tab.

Step 5: Separate the glass from the regulator

• Through the door access openings, locate the glass-to-regulator clamp bolts.
• Use an 10mm socket with a ratchet (3/8") and ratchet extension (3" to 6") to loosen/remove the clamp bolts.
• Carefully confirm the glass is fully supported by tape before fully freeing it from the regulator.
• On reassembly: Torque to 9 Nm (80 in-lbs) (glass clamp fasteners).

Step 6: Remove the regulator assembly

• Remove the regulator mounting fasteners using an 10mm socket and ratchet (3/8").
• Angle and maneuver the regulator out through the largest door opening (take your time to avoid bending it).
• On reassembly: Torque to 10 Nm (89 in-lbs) (regulator-to-door fasteners).

Step 7: Transfer the motor (only if your new regulator does not include it)

• Remove the motor fasteners using a Torx T30 screwdriver.
• Move the motor to the new regulator in the same orientation and start all fasteners by hand.
• Tighten using a Torx T30 screwdriver, then finish with a torque wrench (inch-pound): Torque to 6 Nm (53 in-lbs) (motor fasteners).
• Keep fingers clear of gear area.

Step 8: Install the new regulator

• Place the regulator into the door cavity and align mounting holes.
• Install fasteners using an 10mm socket and ratchet (3/8"), then: Torque to 10 Nm (89 in-lbs).
• Reconnect the motor connector by hand until it clicks.

Step 9: Reattach the glass to the regulator

• Carefully lower the glass into the regulator clamps (peel tape back only as needed).
• Install clamp bolts using an 10mm socket, then: Torque to 9 Nm (80 in-lbs).

Step 10: Function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Turn ignition on and run the window up/down while watching the track for binding (keep hands clear).
• If the window tilts or binds, loosen the clamp bolts with an 10mm socket, align the glass, then re-torque: Torque to 9 Nm (80 in-lbs).
• Turn ignition off and disconnect the negative battery cable again using a 10mm socket before reassembly.

Step 11: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add butyl tape if needed to fully seal.
• Reconnect all door electrical connectors by hand (listen/feel for clicks).
• Hang the panel on the top window ledge first, then press clips in around the perimeter using your hands.
• Reinstall screws using a 7mm socket and/or Phillips screwdriver #2.

Step 12: Final battery connection

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Cycle the window fully down and fully up 3 times to confirm smooth movement and proper sealing.
• Confirm the door lock switch, mirror controls, and speaker all work.
• Listen for cable popping/grinding; if heard, stop and re-check glass alignment and fastener tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
