🔧 Grand Caravan - Front Window Regulator Replacement

The front window regulator is the cable-and-track assembly that raises and lowers your window glass. When it fails, the window may fall into the door, move crooked, or make grinding/clicking noises. This job involves removing the interior door panel, supporting the glass, swapping the regulator, then reassembling.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours per door

Assumption: your regulator is riveted from the factory; if you find bolts instead, skip the drilling steps.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce short-circuit risk.
• ⚠️ Support the window glass at all times; it can drop suddenly and shatter or cut you.
• ⚠️ Wear eye protection when drilling rivets; metal shavings fly.
• ⚠️ Keep fingers clear of the regulator scissor/cable path when testing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• Trim removal tool set
• Phillips screwdriver #2
• Flat-blade screwdriver (small)
• 7mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension for 1/4" ratchet
• Torx T20 screwdriver
• Torx T30 screwdriver
• Pick tool (small)
• Painters tape (1.5")
• Suction cup glass handle (specialty)
• Cordless drill
• Drill bit 1/8"
• Drill bit 1/4"
• Center punch (spring-loaded)
• Rivet gun (heavy-duty) (specialty)
• Torque wrench 1/4" drive (inch-pound)
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1 (left or right, as needed)
• Window regulator motor - Qty: 1 (only if not included with regulator)
• Regulator mounting rivet kit - Qty: 1
• Door trim panel retaining clip set - Qty: 1 (recommended)
• Butyl seal tape for vapor barrier - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the window (if it still moves) to about halfway.
• Turn ignition OFF and remove the key/fob from the vehicle.
• Disconnect the battery negative cable using a 10mm socket and wait 2 minutes.
• Have a clean table ready for screws and the door panel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

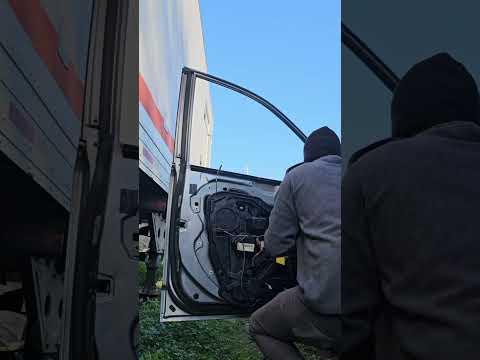

Step 1: Remove the front door trim panel

• Use a trim removal tool set to gently pry off the small trim covers near the inside door handle and armrest screw locations.
• Remove visible screws using a Phillips screwdriver #2, 7mm socket, and/or Torx T20 screwdriver (fasteners vary by position).
• Use a trim removal tool set to pop the door panel clips around the outer edge.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug the window/lock switch connector using a pick tool (small) to release the locking tab (a locking tab is a small plastic catch that must be lifted before the plug comes off).
• Set the panel aside on a blanket to avoid scratches.

Step 2: Remove the vapor barrier (water shield)

• Carefully peel the vapor barrier back using a trim removal tool set.
• If the butyl (sticky sealer) strings out, use butyl seal tape later to reseal it.
• Don’t tear it; it prevents water leaks.

Step 3: Support and secure the window glass

• If the window is still connected, temporarily reconnect the switch and battery, turn ignition ON, and position the glass so you can access the glass-to-regulator fasteners through the door openings.
• Turn ignition OFF and disconnect the battery negative cable again using a 10mm socket.
• Apply multiple strips of painters tape (1.5") from the outside of the glass over the door frame to hold the glass up.
• For extra control, use a suction cup glass handle (specialty) to hold the glass while you loosen fasteners.

Step 4: Disconnect the glass from the regulator

• Locate the glass clamps/fasteners through the access holes.
• Loosen/remove the fasteners using a 10mm socket (common) or Torx T30 screwdriver (some variants).
• Lift the glass fully up by hand and add more painters tape (1.5") to secure it.

Step 5: Remove the regulator/motor assembly

• Unplug the window motor connector (use a pick tool (small) to release the lock tab if needed).
• If mounted with rivets: center-punch each rivet with a center punch (spring-loaded), then drill the rivet heads using a cordless drill with drill bit 1/8" (pilot) followed by drill bit 1/4".
• If mounted with bolts: remove them using a 10mm socket.
• Maneuver the regulator out through the large door opening. Go slow to avoid bending it into the glass.

Step 6: Transfer the motor (only if required)

• If your new regulator does not include a motor, remove the motor from the old regulator using a Torx T30 screwdriver.
• Install the motor onto the new regulator using a Torx T30 screwdriver.
• Torque to 9 Nm (80 in-lbs).

Step 7: Install the new regulator

• Position the new regulator in the door and line up the mounting holes.
• If riveted: install new rivets using a rivet gun (heavy-duty) (specialty).
• If bolted: install bolts using a 10mm socket, then Torque to 9 Nm (80 in-lbs).
• Plug in the motor connector until it clicks.

Step 8: Reattach the glass to the regulator

• Carefully lower the glass into the regulator clamps while holding it with the suction cup glass handle (specialty).
• Install/secure the glass fasteners using a 10mm socket or Torx T30 screwdriver.
• Torque to 8 Nm (70 in-lbs).
• Remove the painters tape (1.5") after the glass is secured.

Step 9: Function test before reassembly

• Reconnect the battery negative cable using a 10mm socket.
• Turn ignition ON and test the window using the switch.
• Watch for smooth travel and that the glass seals evenly at the top.
• Turn ignition OFF and disconnect the battery negative cable again using a 10mm socket before reinstalling the vapor barrier and panel.

Step 10: Reinstall vapor barrier and door panel

• Press the vapor barrier back into place; add butyl seal tape for vapor barrier where the old adhesive no longer sticks.
• Reconnect all electrical connectors.
• Hang the door panel on the top window ledge, then press the clips in around the edges.
• Reinstall screws using a Phillips screwdriver #2, 7mm socket, and/or Torx T20 screwdriver.
• Torque to 2 Nm (18 in-lbs) for small trim/handle screws (snug, do not overtighten).

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Key ON and run the window all the way down, then all the way up to help the module relearn end stops (if equipped with express-down).
• Check the outside belt molding (window sweep) sits flat and does not pinch the glass.
• Verify the door locks, mirror (if on that door), and speaker all work.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$750 (parts + labor)

DIY Cost: $90–$220 (parts only)

You Save: $260–$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
