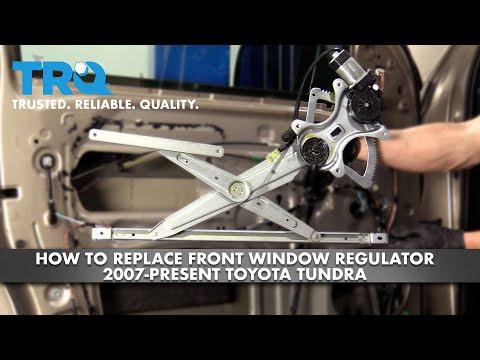

🔧 Tundra - Front Window Regulator Replacement

Replacing the front window regulator fixes a window that’s stuck, drops into the door, moves crooked, or makes grinding/clicking noises. You’ll remove the front door trim panel, secure the glass, swap the regulator (and motor if included), then reassemble and re-learn the auto function if equipped.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable to reduce airbag risk in the door.
• ⚠️ Wait at least 90 seconds after battery disconnect before working near SRS wiring/connectors.
• ⚠️ Support the window glass with painter’s tape so it can’t fall and shatter.
• ⚠️ Keep fingers clear of the regulator scissors/cable paths while moving the glass.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Phillips screwdriver #2
• Trim panel removal tool
• Pick tool
• Needle-nose pliers
• Painter’s tape (1.5" wide)
• Torque wrench (in-lb)
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (left/driver) - Qty: 1
• Front window regulator (right/passenger) - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door trim panel clips - Qty: 1 set
• Water shield butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition OFF.
• Open the window if possible to about halfway (this helps access the glass clamps).
• Use a 10mm socket to disconnect the negative battery cable, then wait 90 seconds.
• Set a clean towel on the sill to protect paint and trim.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim panel removal tool to pop off the small trim covers (behind the inside door handle area and in the armrest, as equipped).
• Remove the exposed screws using a Phillips screwdriver #2 (and/or 10mm socket depending on location).
• Use the trim panel removal tool to release the panel clips around the edges, then lift the panel straight up and off the window ledge.
• Disconnect electrical connectors (window switch, courtesy light) using a pick tool to release locking tabs. Don’t yank on the wires.

Step 2: Remove the water shield (vapor barrier)

• Carefully peel back the plastic water shield by hand.
• If the sticky sealer stretches, use a trim panel removal tool to separate it without tearing the plastic.
• Set it aside clean-side up; you’ll reuse it with water shield butyl tape if needed.

Step 3: Secure the window glass

• If the glass is still on the regulator, temporarily reconnect the window switch connector and reconnect the battery just long enough to move the glass where you can access the glass-to-regulator fasteners through the door openings.
• Disconnect the battery again using a 10mm socket and wait 90 seconds.
• Apply several long strips of painter’s tape (1.5" wide) from the outside of the glass over the door frame to hold the glass up.
• If the regulator has failed and the glass is loose, lift the glass by hand (wear work gloves) and tape it securely.

Step 4: Detach the glass from the regulator

• Through the access holes, use a 10mm socket with a 6" extension to remove the glass clamp bolts/nuts.
• Once loose, slide the glass fully upward by hand and add more painter’s tape to keep it safely up.
• Torque on reassembly: Torque to 71 in-lbs (8 N·m)

Step 5: Disconnect the regulator motor connector

• Unplug the window motor connector using a pick tool to release the lock tab.
• If your replacement is “regulator only,” you will transfer the motor in a later step.

Step 6: Remove the regulator assembly

• Use a 10mm socket and ratchet to remove the regulator mounting bolts.
• Support the regulator with your free hand as you remove the last bolt.
• Maneuver the regulator out through the large door opening.
• Torque on reassembly: Torque to 71 in-lbs (8 N·m)

Step 7: Transfer the motor (only if needed)

• If the motor is separate, remove it from the old regulator using a 10mm socket (or fastener type as equipped) and install it onto the new regulator.
• Torque on reassembly: Torque to 48 in-lbs (5.4 N·m)
• A “torque wrench (in-lb)” is a small torque wrench that measures inch-pounds for low-torque fasteners.

Step 8: Install the new regulator

• Place the new regulator into the door cavity and align it with the mounting holes.
• Start all bolts by hand first to avoid cross-threading, then tighten using a 10mm socket.
• Final torque: Torque to 71 in-lbs (8 N·m)

Step 9: Reattach the glass to the regulator

• Reconnect the window motor connector by hand until it clicks.
• Reconnect the battery negative cable using a 10mm socket and cycle the regulator to line up the clamps with the glass mounting points.
• Disconnect the battery again and wait 90 seconds before putting hands back inside the door.
• Lower the glass carefully into the regulator clamps and install the clamp bolts using a 10mm socket.
• Final torque: Torque to 71 in-lbs (8 N·m)

Step 10: Reinstall the water shield and door panel

• Press the water shield back into place; add water shield butyl tape anywhere it no longer sticks.
• Reconnect all electrical connectors (switch panel, lights).
• Hang the door panel on the top ledge first, then press the clips in around the perimeter using your hands.
• Reinstall screws using a Phillips screwdriver #2 (and/or 10mm socket as equipped), then snap trim covers back on.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Cycle the window fully down and fully up several times and listen for binding or clicking.
• If the auto up/down feature acts weird, “initialize” it: hold the switch fully down for 2 seconds after it reaches bottom, then hold fully up for 2 seconds after it reaches the top.
• Check the door for water shield gaps (this prevents wind noise and water leaks).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor, per front door)

DIY Cost: $120-$320 (parts only, per front door)

You Save: $330-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
