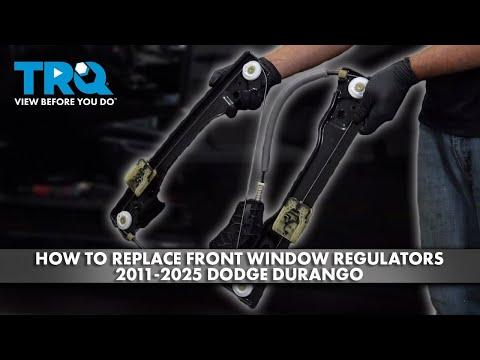

🔧 Durango - Front Window Regulator Replacement

The window regulator is the track-and-cable (or scissor) mechanism that raises and lowers the door glass. Replacing it on your Durango involves removing the interior door panel, supporting the glass safely, swapping the regulator (and sometimes the motor), then reassembling and re-initializing the auto-up/auto-down function.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door electronics to reduce the chance of airbag/SRS faults and accidental window movement.
• ⚠️ Support the window glass with tape before unbolting it from the regulator—glass can drop suddenly.
• ⚠️ Wear gloves—inner door sheet metal edges are sharp.
• ⚠️ Keep the ignition OFF while connectors are unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Panel clip pliers
• Pick tool (small)
• Ratchet (3/8")
• Extension set (3/8")
• 7mm socket
• 10mm socket
• Torx T20 bit
• Torx T30 bit
• Torque wrench (inch-lb)
• Painters tape (2")
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (Driver or Passenger side) - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door trim panel clips - Qty: 1 set (as needed)
• Water shield butyl adhesive tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the ignition OFF.
• Lower the window until you can see the glass-to-regulator attachment points through the door access openings (if the regulator still moves). If it’s stuck, you’ll position the glass by hand once the panel is off.
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• Take photos of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim panel

• Use a trim removal tool set (plastic) to carefully pry off the trim covers near the door pull/handle area to expose screws.
• Remove door panel screws using a 7mm socket and/or Torx T20 bit (locations vary by door: typically door pull pocket and along the edge).
• Starting at the lower edge, use panel clip pliers or a trim removal tool set (plastic) to pop the panel clips free.
• Lift the door panel upward to unhook it from the window beltline.
• Disconnect electrical connectors (window switch, courtesy light, etc.) using a pick tool (small) to release connector locks.

Step 2: Remove/peel back the water shield (moisture barrier)

• Use a trim removal tool set (plastic) to carefully peel the water shield back without tearing it.
• If the butyl adhesive is stubborn, work slowly and keep the shield as intact as possible for resealing later.

Step 3: Support and secure the window glass

• If the window still moves, reconnect the window switch temporarily, reconnect the battery briefly, and position the glass so the glass-to-regulator fasteners are visible in the access holes. Then disconnect the battery again.
• Use painters tape (2") in multiple strips from the outside of the glass up over the door frame to hold the glass in the fully up position.
• Use 3–5 strips; don’t trust one strip.

Step 4: Detach the glass from the regulator

• Through the door access openings, remove the glass-to-regulator fasteners using a 10mm socket (some variants may use Torx T30 bit).
• Once fasteners are removed, push the glass fully up by hand (if needed) and add more painters tape (2") to secure it.
• Torque to 9 Nm (80 in-lbs) during reassembly.

Step 5: Unplug the regulator motor and remove the regulator assembly

• Disconnect the regulator/motor electrical connector using a pick tool (small) to release the lock.
• Remove the regulator mounting bolts using a 10mm socket with a ratchet (3/8") and extension set (3/8").
• Carefully maneuver the regulator out through the main door opening.
• Torque to 9 Nm (80 in-lbs) during reassembly.

Step 6: Transfer the motor (only if your new regulator does not include it)

• Place the old regulator on a bench. Remove the motor screws using a Torx T30 bit.
• Lift the motor straight off and install it onto the new regulator in the same position.
• Torque to 6 Nm (53 in-lbs).
• Don’t rotate the motor gear by hand.

Step 7: Install the new regulator and reconnect wiring

• Feed the new regulator into the door and loosely start all mounting bolts by hand using a 10mm socket.
• Align the regulator in its mounting slots, then tighten bolts evenly.
• Torque to 9 Nm (80 in-lbs).
• Reconnect the motor electrical connector until it clicks.

Step 8: Reattach the glass to the regulator

• Carefully lower the glass (remove some tape as needed) until it sits in the regulator clamps/attachment points.
• Install the glass-to-regulator fasteners using a 10mm socket (or Torx T30 bit, if equipped).
• Torque to 9 Nm (80 in-lbs).
• Remove all painters tape (2").

Step 9: Function test and initialize auto-up/auto-down

• Reconnect the battery negative cable using a 10mm socket.
• Turn ignition to RUN (engine off is fine).
• Test window travel up/down and listen for binding or clicking.
• Initialize: fully close the window and hold the switch UP for ~2–3 seconds; fully open and hold DOWN for ~2–3 seconds; repeat once if needed.

Step 10: Reinstall the water shield and door trim panel

• Press the water shield back into the butyl adhesive. Add water shield butyl adhesive tape where it no longer sticks.
• Reconnect all door panel connectors.
• Hang the door panel on the top lip and press panel clips in by hand around the perimeter.
• Reinstall screws using a 7mm socket and/or Torx T20 bit until snug.

---

✅ After Repair

• Confirm the window seals evenly at the top and doesn’t “tilt” while moving.
• Verify express up/down works after initialization.
• Check that the door lock, mirror, and speaker (if removed/unplugged) all work.
• Listen for wind noise on a short drive—poor water-shield sealing can cause noise and water leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
