🔧 Tacoma - Front Turn Signal Bulb Replacement

You’ll be replacing the front turn signal bulbs inside the headlight housings on your Tacoma. This involves getting access behind each headlight, removing the bulb socket, swapping the bulb, and reinstalling it correctly.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🛑 Turn the engine off, remove the key, and let the engine bay cool before working near the headlights.
• 🧤 Avoid touching the glass of any bulb with bare fingers; oils can shorten bulb life.
• 🔋 Battery disconnect is not required, but do not work on the bulbs with the hazard lights or blinkers turned on.
• 👀 Work in good lighting so you can clearly see the bulb sockets and wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 1/4" drive ratchet
• 🧰 6" socket extension
• 🧰 Trim clip removal tool (specialty)
• 🧰 Flathead screwdriver (small)
• 🧰 Mechanic’s gloves
• 🧰 Safety glasses
• 🧰 Shop towel or clean microfiber cloth

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 💡 Front turn signal bulb (7444NA or 7440 amber) - Qty: 2 Replace in pairs
• 💡 Dielectric grease for bulb contacts - Qty: 1 small tube
• 💡 Plastic push clips for upper radiator cover - Qty: 4–6 Optional, in case any break

---

📋 Before You Begin

• Park the Tacoma on level ground, set the parking brake, and switch the ignition off.
• Open the hood and secure it with the hood prop rod.
• Make sure the headlight switch and hazard lights are turned off.
• Lay a shop towel over the front bumper edge to protect the paint where you’ll lean in.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the upper radiator cover for easier access

• The upper radiator cover is the plastic panel running across the front, just behind the grille.
• Use the trim clip removal tool to gently pry up the center pins of the plastic clips along the top of the cover.
• If needed, use a flathead screwdriver carefully under the clip centers to pop them up. Twist, don’t pry straight up
• Once the centers are up, pull the clips out and lift the plastic cover off. Set it aside.

Step 2: Create room behind the headlight

• You’ll be working from behind each headlight assembly, inside the engine bay.
• On the driver side, if space is tight, you can remove the top headlight mounting bolt to tilt the headlight slightly:
• Use a 10mm socket, extension, and ratchet to remove the upper headlight bolt.
• Keep the bolt somewhere safe; you will reinstall it later. Torque to 7 Nm (62 in-lbs) on reassembly.
• You do not need to fully remove the headlight; just create a bit more wiggle room if needed.

Step 3: Locate the front turn signal bulb socket

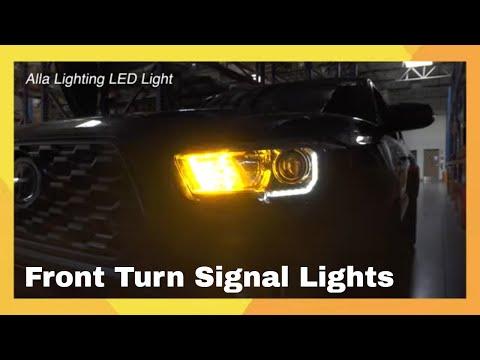

• Stand in front of the Tacoma and look at the headlight: the front turn signal is the amber section near the outer corner of the headlight housing.
• From inside the engine bay, reach behind the headlight and look for a circular bulb socket with two wires going into it, positioned behind that outer amber area.
• The socket will usually be gray or black plastic, about the size of a large coin.

Step 4: Remove the bulb socket

• Grip the bulb socket firmly by hand.
• Turn the socket about a quarter-turn counterclockwise to unlock it from the headlight housing.
• Pull the socket straight back to remove it from the headlight.
• If it’s stuck, wiggle gently while turning

Step 5: Remove the old bulb

• Hold the socket with the bulb pointing upward so it doesn’t fall.
• Pull the bulb straight out from the socket. Most Tacoma front turn signal bulbs are simple “wedge” style and just slide out.
• If it feels tight, gently rock the bulb side to side while pulling.

Step 6: Prepare the new bulb

• Take a new front turn signal bulb (7444NA or 7440 amber) out of its package.
• Use a shop towel or clean microfiber cloth to hold the new bulb so you don’t touch the glass.
• Apply a small dab of dielectric grease to the bulb’s metal contacts where it plugs into the socket. This helps prevent corrosion.

Step 7: Install the new bulb into the socket

• Align the base of the new bulb with the slot in the socket.
• Push the bulb straight into the socket firmly until it seats fully.
• Check that the bulb is straight and not loose. A loose bulb can flicker

Step 8: Reinstall the bulb socket into the headlight

• Guide the bulb and socket back into the opening in the rear of the headlight housing.
• Make sure the bulb goes fully into the housing and the socket tabs align with the slots.
• Turn the socket about a quarter-turn clockwise until it stops. This locks it in place; hand-tight only, no tools.

Step 9: Repeat on the other side

• Repeat Steps 3–8 for the opposite headlight so both front turn signals are new and match in brightness and color.

Step 10: Reinstall any removed bolts and the upper radiator cover

• If you removed a headlight upper bolt, reinstall it now:
• Use the 10mm socket, extension, and ratchet to tighten the bolt.
• Torque to 7 Nm (62 in-lbs) — snug, not very tight.
• Place the upper radiator cover back in position.
• Insert each plastic clip, then push down the center pin to lock it in place. If any clips broke, replace them with new ones.

---

✅ After Repair

• Turn the ignition to ON (engine can be off) and switch on the left turn signal. Walk to the front and confirm the left front turn signal is flashing normally.
• Repeat for the right turn signal.
• Turn on the hazard lights and confirm both front signals flash at the same rate and brightness.
• If one side flashes very fast, the bulb may not be seated correctly; turn everything off and reseat that bulb.

---

💰 DIY vs Shop Cost

Shop Cost: $80–$140 (parts + labor)

DIY Cost: $15–$35 (parts only for both front bulbs)

You Save: $65–$105 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
