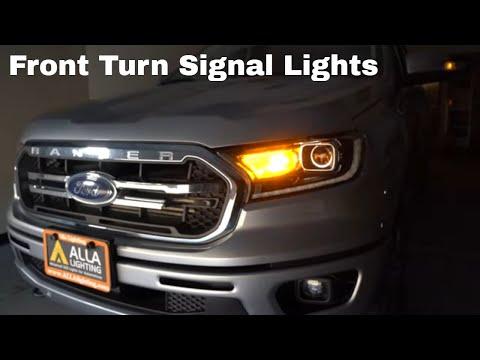

🔧 Ranger - Front Turn Signal Bulb Replacement

On your Ranger, the front turn signal is inside the headlamp assembly. If your truck has halogen-style headlamps, you can replace the bulb from the back of the headlamp. If your truck has factory LED headlamps, the “bulb” is not separately replaceable (the LED is built in), and the headlamp assembly is typically replaced.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the headlamp area cool before touching it.
• ⚠️ Turn the light switch OFF and remove the key before starting.
• ⚠️ Don’t touch a halogen bulb’s glass with bare fingers; skin oil can shorten bulb life.
• ⚠️ If you choose to disconnect the battery, keep the terminal from springing back.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber) - Replace in pairs - Qty: 2
• Upper cover push clips - Qty: 2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and support it fully.
• Quick headlamp check: if your headlamp has a removable bulb socket and a twist-lock at the rear, it’s halogen-style. If the rear cover looks sealed and there’s no twist-in bulb socket for the turn signal, it’s likely LED and not bulb-serviceable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the upper radiator cover (if equipped)

• Use the trim clip removal tool to pop up the center pins, then remove the cover clips.
• Lift the cover off and set it aside.

Step 2: Remove the headlamp retaining bolts

• Use a 10mm socket, 1/4" ratchet, and 6" extension (1/4" drive) to remove the headlamp retaining bolts at the top of the headlamp.
• Keep the bolts somewhere safe so they don’t fall into the engine bay.

Step 3: Pull the headlamp forward (gentle release)

• With both hands, pull the headlamp assembly straight forward to release the alignment pins.
• Wiggle gently; don’t yank the wiring.

Step 4: Remove the front turn signal bulb socket

• At the rear of the headlamp, locate the turn signal bulb socket (the twist-lock socket).
• Twist the socket counterclockwise by hand and pull it out.
• If it’s tight, use nitrile gloves for better grip.

Step 5: Replace the bulb

• Pull the old bulb straight out of the socket.
• Install the new front turn signal bulb (amber) by pushing it straight in until fully seated.
• Do not touch the glass; use nitrile gloves.

Step 6: Reinstall the socket and headlamp

• Insert the socket back into the headlamp and twist clockwise until it locks.
• Slide the headlamp back into place, lining up the guide pins.
• Reinstall the headlamp bolts using the 10mm socket and 1/4" ratchet.
• Torque to 5 Nm (44 in-lb)

Step 7: Reinstall the upper cover

• Reinstall the upper radiator cover and clips using the trim clip removal tool.

Step 8: Repeat on the other side

• Replace the other front turn signal bulb the same way. Bulbs age together; replace both.

---

✅ After Repair

• Turn the ignition ON and test left and right turn signals, hazards, and parking lamps.
• Verify the turn signal flashes at a normal speed (fast flashing usually means a bulb issue).
• If your Ranger has LED headlamps and there is no removable bulb socket: the turn signal is typically part of the headlamp assembly, and the fix is usually headlamp replacement (tell me if yours are LED and I’ll walk you through the correct procedure).

---

💰 DIY vs Shop Cost

Shop Cost: ₹800-₹2,500 (parts + labor)

DIY Cost: ₹300-₹1,200 (parts only)

You Save: ₹500-₹1,300 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
