🔧 Sierra 1500 - Front Turn Signal Bulb Replacement

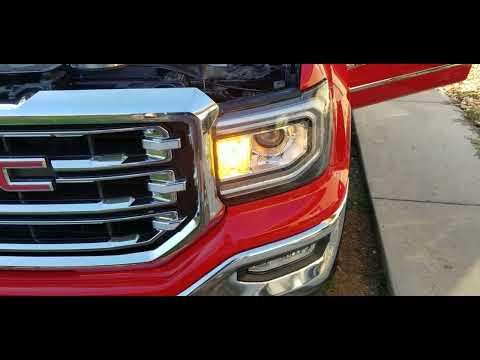

Your Sierra 1500’s front turn signals are housed in the headlamp assembly. On most SLE trucks with halogen headlights, you can replace the amber bulb from behind the headlight under the hood. If your truck has LED front turn signals, the “bulb” is typically part of a sealed LED module and is not a simple bulb swap.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and let the headlamp area cool before touching anything.
• ⚠️ Don’t touch the glass part of a halogen bulb with bare fingers (skin oils can shorten bulb life).
• ⚠️ Keep keys out of the ignition so the lights can’t be turned on accidentally.
• 🔋 Battery disconnect is not required for a basic bulb swap.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim clip removal tool
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 1/4" ratchet
• 6" socket extension

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber) - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 💡 Switch the headlamps OFF and remove the key/fob from the truck.
• 🔎 Open the hood and have your flashlight ready so you can clearly see the rear of the headlamp.
• 🧰 If access is tight on the passenger side, you may need to loosen the intake duct clamp (normal).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm you have serviceable bulbs

• Use your flashlight to look behind each headlamp housing from under the hood.
• If you see a removable twist-lock socket going into the headlamp, you likely have a replaceable bulb.
• If the back of the lamp looks like a sealed unit with no removable socket for the turn signal, you likely have an LED module (not a simple bulb swap).
• If you tell me “halogen” or “LED,” I’ll tailor steps.

Step 2: Create room to reach the turn signal socket (if needed)

• Passenger side (common): Use an 8mm socket with a 1/4" ratchet (and 6" extension if needed) to loosen the intake duct clamp near the air box.
• Gently move the intake duct/resonator just enough to get your hand behind the headlamp. Do not force it.
• Driver side (if tight): Use a trim clip removal tool to carefully pop any nearby plastic push-clips, or use a flat-blade screwdriver to lift the center pin first (a “push-clip” is the plastic fastener that holds covers in place).

Step 3: Remove the front turn signal bulb socket

• Put on nitrile gloves and use your flashlight to identify the turn signal socket at the back of the headlamp.
• Grip the socket firmly and rotate it counterclockwise about 1/4 turn by hand to unlock it.
• Pull the socket straight out of the headlamp housing.

Step 4: Replace the bulb

• Remove the old bulb by pulling it straight out of the socket.
• Install the new front turn signal bulb (amber) by pushing it straight in until fully seated.
• Optional: Apply a very thin film of dielectric grease to the socket seal (not on the bulb glass).

Step 5: Reinstall the socket

• Insert the socket back into the headlamp opening.
• Rotate clockwise by hand about 1/4 turn until it locks fully.
• Make sure the socket is seated evenly (a crooked seal can let moisture in).

Step 6: Reassemble anything you moved

• If you loosened the intake duct, use the 8mm socket with 1/4" ratchet to tighten the clamp snugly.
• If you removed any covers/clips, reinstall them using the trim clip removal tool (to align) and press the clip pin back down by hand.

Step 7: Repeat on the other side

• Repeat Steps 2-6 for the opposite headlamp so both bulbs match in brightness and color.
• Replace bulbs in pairs for best match.

---

✅ After Repair

• ✅ Turn the ignition ON and test left and right turn signals.
• ✅ Turn on hazards and walk around the truck to confirm both front signals flash normally.
• 🔎 If you get fast blinking (hyperflash), recheck bulb type/fitment and socket seating.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$150 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $50-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
