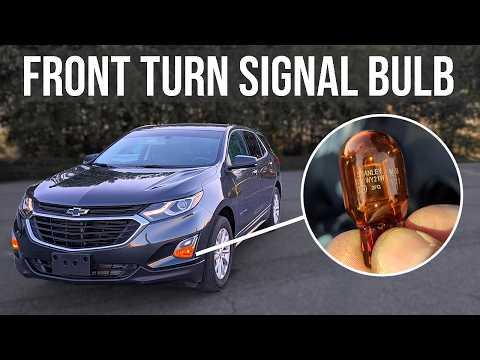

🔧 Front Turn Signal Bulb - Bulb Replacement

Replacing the front turn signal bulb means removing access to the back of the front headlamp assembly, swapping the bulb, and making sure the new one locks in correctly. On your Equinox, this is usually a quick job, but access is tight, so take your time to avoid breaking the bulb or connector.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Turn the lights off and remove the key/fob from the vehicle before starting.
• Let the headlamp area cool if the lights were on recently.
• Do not touch the glass of a halogen bulb with bare fingers; skin oil shortens bulb life.
• Use gentle force on the bulb socket and connector. The headlamp housing tabs can crack if twisted hard.
• If you must move the battery cable for extra room, disconnect the negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Flat-head trim tool
• 7mm socket
• 1/4-inch ratchet
• Extension bar
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the headlight switch off.
• Open the hood.
• If you are replacing one bulb, it is smart to replace both front turn signal bulbs together so they stay matched.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open access to the back of the headlamp

• Use a 7mm socket and 1/4-inch ratchet to remove any fasteners holding the upper radiator cover or headlamp access area, if equipped.
• If needed, use a flat-head trim tool to release plastic clips gently.
• Keep fasteners in order.

Step 2: Reach the turn signal bulb socket

• Locate the turn signal bulb socket at the back of the front headlamp assembly.
• Twist the socket counterclockwise by hand and pull it straight out.
• If the socket is tight, use your hand only first. Do not pry hard with tools.

Step 3: Remove the old bulb

• Pull the old bulb straight out of the socket.
• If the bulb is a twist-lock style, align the tabs and remove it carefully.
• Wear gloves so you do not cut your hand on the housing edges.

Step 4: Install the new bulb

• Install the new front turn signal bulb into the socket in the same position as the old one.
• Make sure it seats fully and straight.
• If it is a halogen bulb, do not touch the glass.

Step 5: Reinstall the socket

• Insert the socket back into the headlamp assembly.
• Twist it clockwise by hand until it locks.
• It should feel snug, not forced.

Step 6: Test the turn signal

• Turn the ignition on and activate the front turn signal.
• Check for normal blinking on the repaired side.
• If the bulb does not light, remove the socket and recheck the bulb fit.

Step 7: Reassemble the access area

• Reinstall any clips or fasteners removed earlier using the 7mm socket and flat-head trim tool if needed.
• Make sure all covers sit flat and secure.

---

✅ After Repair

• Check both front turn signals, hazard lights, and parking lights.
• Make sure the new bulb flashes at the same brightness as the other side.
• If the dash shows a bulb warning, turn the vehicle off and back on once.
• If the warning stays on, the bulb may not be fully seated or the wrong bulb type may be installed.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$160 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $70-$130 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
