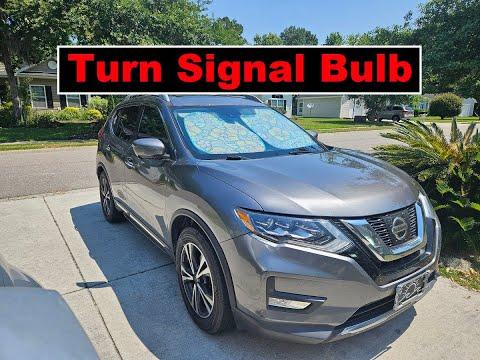

🔧 Rogue - Front Turn Signal Bulb Replacement

You’ll be replacing the front turn signal bulbs inside each headlight on your Rogue. The bulbs twist out from the back of the headlight, so you do not need to remove the headlight or bumper.

Difficulty Level: Beginner | Estimated Time: 20–40 minutes

---

⚠️ Safety & Precautions

• 🦺 Always work with the engine off, transmission in Park, and parking brake firmly set.
• ⚡ Turn off all lights and remove the key from the vehicle so the bulbs and sockets are not powered while you work.
• 🔥 Let the engine bay cool for at least 15 minutes if the engine was recently running; parts under the hood can be very hot.
• 🧤 Avoid touching the glass of any bulb with bare fingers; oil from skin can shorten bulb life.
• 🔋 Battery disconnect is not required for this job, but do not turn the ignition on while a socket is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧤 Mechanic’s gloves
• 🕶️ Safety glasses
• 🔦 LED work light
• 🪛 Small flathead screwdriver 3–5 mm tip
• 🪚 Plastic trim tool set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 💡 Front turn signal bulb (PY27/7W or 7440NA equivalent, amber) - Qty: 2 (replace both sides)
• 🧼 Dielectric grease for electrical contacts - Qty: 1 small tube
• 🧻 Clean lint-free cloth - Qty: 1
• 🧪 Isopropyl alcohol wipes - Qty: 2–4

---

📋 Before You Begin

• 🚗 Park the Rogue on a flat surface, shift to Park, and set the parking brake.
• 🔇 Turn off the ignition completely and remove the key or key fob from the vehicle.
• 🧊 Open the hood and let the engine bay cool if it was recently driven.
• 💡 Position your work light so you can clearly see behind the headlights from inside the engine bay.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and locate the turn signal bulb area

• Pull the hood release handle inside the cabin, then use your hand to lift the hood and release the hood latch under the front edge.
• Secure the hood with the hood prop rod.
• Use the LED work light to look behind the driver-side headlight from inside the engine bay.
• The front turn signal socket is usually the outermost, lower socket at the back of the headlight, with wires going into a small round or oval base.
• Check your owner’s manual diagram if unsure which socket.

Step 2: Gain a little extra access (if space is tight)

• On some Rogues, space is tight on the driver side because of the intake duct and on the passenger side because of the washer reservoir.
• If needed, gently move any rubber air duct or wiring harness out of the way by hand; do not pull hard.
• If a plastic cover or clip is blocking your hand, use a plastic trim tool set to carefully lift the plastic tab or clip so you can reach the socket.
• Do not force your hand; adjust angle and try again.

Step 3: Remove the turn signal bulb socket from the headlight

• Grasp the back of the suspected turn signal socket firmly with your fingers.
• Twist the socket about a quarter-turn counterclockwise (left) to unlock it. No special torque spec here; it’s just hand-tight.
• If it feels stuck, use a small flathead screwdriver 3–5 mm tip very gently on the locking tab area while twisting with your other hand. Do not pry hard.
• Once it unlocks, pull the socket straight back out of the headlight housing.

Step 4: Remove the old bulb from the socket

• Hold the socket in one hand and the bulb base (not the glass) in the other.
• On most 2017 Rogues, the front turn bulb is a push-in wedge style: pull the bulb straight out of the socket.
• If yours is a twist-lock style, push in slightly and twist counterclockwise, then remove.
• Inspect the old bulb. If the glass is dark or the filament (tiny wire) is broken, it has failed.

Step 5: Prepare the new bulb

• Open the package for the front turn signal bulb (PY27/7W or 7440NA equivalent, amber) without touching the glass with bare fingers.
• If you accidentally touch the glass, clean it with an isopropyl alcohol wipe and dry it with a clean lint-free cloth.
• Apply a very small amount of dielectric grease for electrical contacts to the metal contacts at the base of the bulb. This helps prevent corrosion.
• Only a thin film of grease is needed.

Step 6: Install the new bulb into the socket

• For wedge-style bulbs, align the bulb base with the socket opening and push it straight in until fully seated.
• For twist-lock bulbs, insert the base, then twist clockwise to lock in the socket.
• Make sure the bulb is straight and secure; it should not wiggle loosely.

Step 7: Reinstall the socket into the headlight

• Align the tabs on the socket with the slots on the back of the headlight opening.
• Insert the bulb and socket into the headlight housing fully.
• Twist the socket clockwise (right) about a quarter turn until it stops and feels snug.
• If it doesn’t seat, remove, realign tabs, and try again.

Step 8: Repeat the process on the other side

• Move to the passenger side headlight and repeat Steps 1–7 for the other front turn signal bulb.
• Always replace bulbs in pairs so brightness and color match on both sides.

Step 9: Test the new bulbs

• Close the hood prop rod but leave the hood lightly latched so you can still check the lights if needed.
• Sit in the driver’s seat, turn the ignition to ON (or ready mode), and activate the left and right turn signals one at a time.
• Walk around the front and confirm both front turn signals flash at a normal speed and with even brightness.
• If one side does not work, turn ignition off, recheck that the bulb is fully seated and the socket is locked in the housing.

---

✅ After Repair

• 🚦Verify both front turn signals and both rear turn signals work and flash at the normal speed (not fast “hyperflash”).
• 🧹Confirm all tools and packaging are removed from the engine bay and that the hood is fully closed and latched.
• 📘 Make a small note of the bulb type used for future reference.

---

💰 DIY vs Shop Cost

Shop Cost: $80–$140 (parts + labor)

DIY Cost: $15–$30 (parts only, both bulbs)

You Save: $65–$110 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
