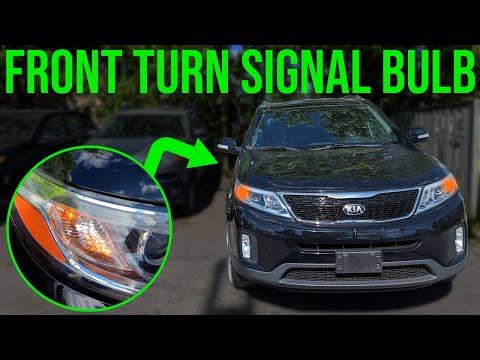

🔧 Sorento - Front Turn Signal Bulb Replacement

You’ll access the back of the front headlamp, remove the turn-signal bulb socket, and swap in a new amber bulb. The main “gotcha” is gaining access—on your Sorento it’s usually easiest through the front wheel-well access flap/liner.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🛑 Turn the ignition OFF and remove the key before starting.
• 🧤 Let the headlamp area cool if lights were recently on.
• 👓 Wear safety glasses—wheel-well clips can pop loose.
• 🧼 Don’t touch the new bulb glass with bare fingers; skin oil can shorten bulb life.
• 🧰 If you lift the vehicle, support it with jack stands; never rely on a jack alone.
• 🔋 Battery disconnect is not required for this bulb swap.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Safety glasses
• Nitrile gloves
• Flashlight
• Trim clip removal tool
• Phillips screwdriver #2
• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Torque wrench (10-150 ft-lbs range)
• 21mm socket

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber) - Qty: 2
• Front fender liner clips - Qty: 4

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• ↩️ Turn the steering wheel fully away from the side you’re working on (this opens up wheel-well room).
• 📝 Assumption: your Sorento uses a replaceable front turn-signal bulb (non-LED). If your turn signal is LED and does not use a bulb, the “bulb socket” will not be present.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the correct side

• Use the turn signal stalk to switch ON the left or right signal, then switch it OFF.
• Walk around the front to confirm which side is out.

Step 2: Create access at the front wheel well

• Turn the steering wheel fully away from the failed bulb side.
• If you need more space, use a floor jack (rated 3-ton minimum) at the front lift point and support with jack stands (rated 3-ton minimum).
• If removing the wheel for maximum access, loosen lug nuts with a 21mm socket before lifting, then remove the wheel after the vehicle is safely on the stand.

Step 3: Open the fender liner access area

• Use a trim clip removal tool to pop out the plastic push-clips along the front portion of the fender liner.
• If equipped with screws, remove them using a Phillips screwdriver #2.
• If there’s a small access flap, open it; otherwise gently pull the liner back enough to reach the rear of the headlamp.
• Tip: Don’t yank—clips break easily.

Step 4: Locate and remove the turn signal bulb socket

• Reach behind the headlamp and find the turn signal socket (it’s a twist-lock socket going into the lamp housing).
• Twist the socket counterclockwise by hand to unlock it, then pull it straight out.
• If it’s tight, use nitrile gloves for better grip—don’t use pliers (they can crack the socket).

Step 5: Replace the bulb

• Pull the old bulb straight out of the socket.
• Install the new front turn signal bulb (amber) by pushing it straight in until fully seated.
• Do not touch the bulb glass with bare fingers; if you do, wipe it with rubbing alcohol and let it dry.

Step 6: Reinstall the socket and reassemble

• Insert the socket back into the headlamp housing and twist clockwise until it locks.
• Reposition the fender liner and reinstall clips using the trim clip removal tool (to align) and your hand pressure to seat them.
• If you removed the wheel, reinstall lug nuts with a 21mm socket, lower the vehicle, then Torque to 107-127 Nm (79-94 ft-lbs) using a torque wrench (10-150 ft-lbs range).

Step 7: Function test

• Turn ignition ON and test left and right turn signals.
• Confirm the flash rate is normal (fast flashing usually means a bulb isn’t working or is the wrong type).
• Verify the bulb is seated and the socket is fully locked if it doesn’t light.

---

✅ After Repair

• 🔍 Check that the turn signal flashes at a normal speed and matches the other side’s brightness.
• 🧰 Make sure the fender liner is secured—loose liners can rub the tire.
• 📝 If you still have hyper-flash, recheck the bulb type and that the socket contacts are clean and tight.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$180 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $80-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
