🔧 Highlander - Front Turn Signal Bulb Replacement

Your Highlander’s front turn signal is housed inside the headlight assembly. On some versions it’s a replaceable twist-out bulb; on others it’s a sealed LED that isn’t serviced as a simple bulb.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the lights OFF and remove the key before starting.
• ⚠️ Let the headlight area cool if you were just driving.
• ⚠️ If you jack up the front, support it with jack stands on solid ground.
• ⚠️ Don’t touch a halogen bulb glass with bare fingers (skin oils can shorten bulb life).

---

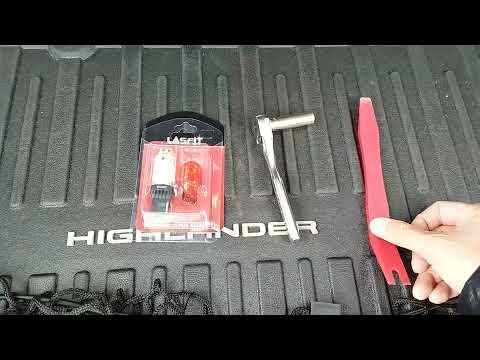

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension for 1/4" drive ratchet
• Phillips screwdriver #2
• Trim clip remover (specialty)
• Needle-nose pliers
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 21mm socket
• Torque wrench (10-150 ft-lbs)
• Nitrile gloves
• Safety glasses
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb - Qty: 2
• Fender liner clips - Qty: 4

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the steering wheel fully away from the side you’re working on (gives more room at the fender liner).
• If you plan to remove the wheel for more room, loosen lug nuts slightly before lifting the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the correct side and bulb style

• Turn the hazard lights ON briefly to confirm which front turn signal is out, then turn hazards OFF.
• Open the hood and use a flashlight to look behind the headlight for a twist-lock socket and wiring connector.
• If you see a socket you can twist out, continue to Step 2.
• If there is no removable socket and the turn signal is part of a sealed LED unit, skip to Step 9 (LED note).

Step 2: Create access (choose the easiest method)

• Method A (often enough space): Access from above/behind the headlight with a flashlight.
• Method B (more room, beginner-friendly): Pull back the fender liner at that front corner (Steps 3-5).

Step 3: Lift the front corner (Method B)

• Use a floor jack (rated 2-ton minimum) to lift at the front jacking point.
• Place jack stands (rated 2-ton minimum) under a safe support point and lower onto the stand.

Step 4: Remove the wheel (Method B, optional but helps)

• Use a 21mm socket and 1/2" drive torque wrench to remove the lug nuts and wheel.
• On reassembly: Torque to 103 Nm (76 ft-lbs).

Step 5: Pull back the front fender liner (Method B)

• Remove clips/screws along the front edge of the liner using a trim clip remover (specialty) and Phillips screwdriver #2.
• A trim clip remover is a forked pry tool.
• If a clip pin is stubborn, use needle-nose pliers to pull the center pin out gently.
• Pull the liner back enough to reach behind the headlight.

Step 6: Remove the turn signal socket

• Reach behind the headlight and find the turn signal socket and connector.
• Twist the socket counterclockwise by hand. If it’s tight, use nitrile gloves for grip (avoid tools that can crack the plastic).
• Pull the socket straight out.

Step 7: Replace the bulb (bulb-type assemblies only)

• Remove the old bulb from the socket (usually pulls straight out).
• Install the new front turn signal bulb firmly into the socket.
• If the bulb is glass, keep your fingers off the glass (use nitrile gloves).

Step 8: Reinstall and test

• Reinsert the socket into the headlight and twist clockwise until fully seated.
• Turn hazards ON and verify the repaired side flashes normally.
• Reinstall the fender liner clips using a trim clip remover (specialty) (press the outer body in, then press the center pin).
• If removed, reinstall the wheel using a 21mm socket and torque wrench (10-150 ft-lbs): Torque to 103 Nm (76 ft-lbs).

Step 9: If your Highlander has a sealed LED front turn signal

• If there is no twist-out bulb socket, the turn signal is typically part of an LED assembly and is not replaced like a bulb.
• At that point, the repair usually involves replacing the LED module (if serviced separately) or the headlight assembly.
• If you want, tell me whether you see a twist-out socket behind the headlight (yes/no) and which side (driver/passenger), and I’ll guide you down the exact correct path.

---

✅ After Repair

• Verify left and right turn signals flash at a normal speed.
• Verify hazards work and the turn signal indicator on the dash is normal.
• If it still “hyper-flashes,” recheck the bulb seating and connector fit.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $110-$210 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
