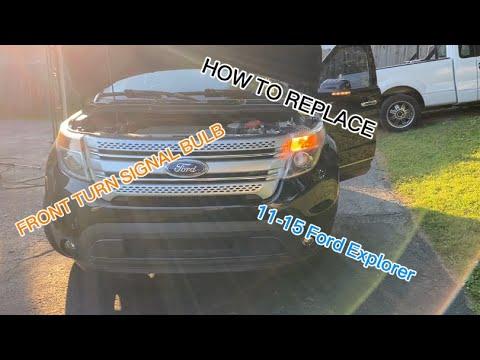

🔧 Explorer - Front Turn Signal Bulb Replacement

Your Explorer’s front turn signal bulbs sit in the headlamp housing. The job is mainly gaining access, twisting the bulb socket out, and swapping the bulb without touching the glass.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours (both sides)

---

⚠️ Safety & Precautions

• ⚠️ Turn the lighting switch OFF and remove the key before starting.
• ⚠️ Let the headlamp area cool if lights were recently on (hot plastic and bulbs).
• ⚠️ Don’t touch the new bulb’s glass with bare fingers; oils can shorten bulb life. If you do, clean with isopropyl alcohol and a lint-free towel.
• ⚠️ If you raise the vehicle, support it with jack stands—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Flat trim removal tool
• 7mm socket
• 1/4" ratchet
• 6" extension for 1/4" ratchet
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Torque wrench (10-150 ft-lbs range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber) - Qty: 2 (Replace in pairs)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock a rear wheel with wheel chocks.
• Open the hood and have a flashlight ready so you can see the bulb sockets clearly.
• Tip: The exact bulb number is usually printed on the old bulb—match it when installing the replacement.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the correct side and bulb

• Turn the hazard lights ON briefly, then OFF (use the vehicle switch).
• Walk around and confirm which front turn signal is out (left or right).

Step 2: Access the front turn signal socket

• Open the hood and look behind the headlamp assembly on the side you’re replacing.
• Use a flashlight to find the turn signal bulb socket (the socket will have wires going to it).
• If your hand access is tight, use the wheel-well access method in Step 2B.

Step 2B (If needed): Create more room through the wheel well

• Place wheel chocks at the rear wheel.
• Lift the front corner with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Turn the front wheel outward by hand to open space in the wheel well.
• Use a 7mm socket, 1/4" ratchet, and 6" extension for 1/4" ratchet to remove the small screws holding the front portion of the splash shield.
• Use a flat trim removal tool to pop out any push clips, then peel the liner back enough to reach the back of the headlamp.

Step 3: Remove the bulb socket

• Put on nitrile gloves and safety glasses.
• Grip the turn signal socket and rotate it counterclockwise about a quarter turn by hand.
• Pull the socket straight out of the headlamp housing.

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket (no tools needed).
• Install the new bulb by pushing it straight into the socket until fully seated.
• Tip: Don’t touch bulb glass.

Step 5: Reinstall the socket

• Insert the socket back into the headlamp housing, aligning the tabs.
• Rotate clockwise by hand until it stops (snug).

Step 6: Reassemble the wheel-well liner (if removed)

• Reposition the liner and reinstall push clips using the flat trim removal tool.
• Reinstall the screws using the 7mm socket, 1/4" ratchet, and 6" extension for 1/4" ratchet (snug).
• If you removed the wheel (only if you chose to), reinstall and Torque to 135 Nm (100 ft-lbs) using a torque wrench (10-150 ft-lbs range).
• Lower the vehicle safely by reversing the lift steps with the floor jack and remove the jack stands.

---

✅ After Repair

• Turn the hazards ON and verify the repaired front turn signal flashes normally.
• Turn the left and right turn signals ON one at a time and confirm both front signals work.
• If the turn signal blinks fast (hyperflash), recheck the bulb is fully seated and the socket is fully locked.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $50-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
