🔧 Corolla - Front Turn Signal Bulb Replacement

You’ll be replacing the front turn signal bulbs in the headlight assemblies on your Corolla. The bulbs twist out from the back of the headlight; in some cases you’ll move a plastic air duct to get better access.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🔸 Make sure the engine is off, key out, and lights switched off before you start.
• 🔸 Let the engine bay cool down if the car was just driven; parts under the hood can be hot.
• 🔸 Set the parking brake and work on level ground so the car cannot roll.
• 🔸 Disconnecting the battery is not required, but avoid shorting any connectors with tools.
• 🔸 Work carefully around plastic clips and tabs; they can snap if forced.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸 10mm socket
• 🔸 1/4" drive ratchet
• 🔸 3" socket extension
• 🔸 Trim clip removal tool
• 🔸 Flathead screwdriver (small)
• 🔸 Flashlight
• 🔸 Mechanic gloves
• 🔸 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸 Front turn signal bulb (amber 7444NA or equivalent) - Qty: 2 (replace in pairs)
• 🔸 Dielectric grease (bulb socket grease) - Qty: 1 tube

---

📋 Before You Begin

• 🔸 Park the Corolla on level ground, set the parking brake, and turn the ignition and lights OFF.
• 🔸 Open the hood and use the prop rod to secure it.
• 🔸 Identify the headlight assemblies: the turn signal bulb is the outer/amber section at the front corners.
• 🔸 Have the new bulbs unboxed but do not touch the glass with bare fingers; use gloves or hold the metal base.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which type of front turn signal you have

• 🔸 Stand in front of the Corolla and look at the turn signal area in the headlight (outer corner).
• If you can clearly see a small replaceable bulb behind amber plastic, you have a standard bulb type (DIY replaceable).
• If the turn signal section looks like a solid LED bar with no obvious bulb, it is likely LED and the whole headlight assembly must be replaced to fix a dead turn signal (not just a bulb).
• Steps below assume a standard replaceable bulb. If yours looks different, tell me.

Step 2: Access the back of the headlight (driver side)

• 🔸 Put on your mechanic gloves and safety glasses.
• From above, look behind the driver-side headlight inside the engine bay using your flashlight.
• Locate the turn signal bulb socket: it’s usually the outermost socket on the back of the headlight with two wires going to it.
• If an air intake duct or plastic cover blocks your hand, use the 10mm socket, ratchet, and extension to remove any 10mm bolts holding the plastic snorkel or cover on the driver side. Set bolts aside safely. Torque to 5 Nm (44 in-lbs) when reinstalling later.
• Take a photo before removing anything for easy reassembly.

Step 3: Remove the driver-side bulb socket

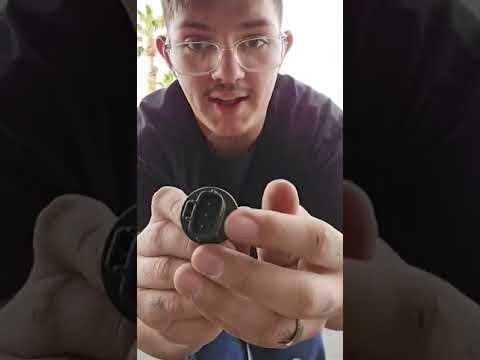

• 🔸 Grasp the turn signal bulb socket firmly by the plastic base (where the wires enter).
• Turn the socket about 1/4 turn counterclockwise (left) by hand; no tool is needed here.
• Pull the socket straight back out of the headlight housing.
• If it feels stuck, wiggle it gently while turning; do not pry with a screwdriver to avoid cracking the housing.

Step 4: Remove the old bulb from the socket

• 🔸 Hold the socket in one hand and grasp the bulb base with your gloved other hand.
• Pull the bulb straight out of the socket; it’s a push-fit type.
• If it’s tight, gently rock it side to side while pulling.
• Inspect the old bulb: a blackened or broken filament confirms it was bad.

Step 5: Install the new bulb in the socket

• 🔸 Open your new front turn signal bulb (amber 7444NA).
• Without touching the glass, align the bulb’s base pins with the socket and push it firmly straight in until fully seated.
• Apply a tiny dab of dielectric grease around the rubber seal of the socket if you have it, to help keep moisture out.
• If you touch glass, wipe with clean alcohol pad.

Step 6: Reinstall the bulb socket into the headlight (driver side)

• 🔸 Line up the tabs on the socket with the slots in the headlight opening.
• Insert the socket straight in until it sits flush.
• Turn the socket about 1/4 turn clockwise (right) by hand until it stops. It should feel snug and locked.
• Make sure the wiring is not twisted or pulled tight.

Step 7: Repeat removal on the passenger side

• 🔸 Move to the passenger side and use your flashlight to look behind the headlight.
• On this side, you may have washer fluid components or other items close by, but you should still be able to reach the turn signal socket from above.
• If a plastic cover or duct is in the way, remove any 10mm bolts using the 10mm socket, ratchet, and extension. Torque to 5 Nm (44 in-lbs) on reassembly.
• Turn the passenger-side turn signal socket counterclockwise by hand and pull it out just like you did on the driver side.

Step 8: Replace the passenger-side bulb

• 🔸 Pull the old bulb straight out of the passenger-side socket.
• Install the second new front turn signal bulb (amber 7444NA), again not touching the glass.
• Apply a small amount of dielectric grease on the socket seal if available.
• Reinsert the socket into the headlight and turn clockwise to lock.

Step 9: Reinstall any removed ducts or covers

• 🔸 If you removed an air intake snorkel, plastic cover, or any brackets, position them back where they were.
• Install the bolts by hand first to avoid cross-threading.
• Use the 10mm socket, ratchet, and extension to snug them down. Do not overtighten plastic parts. Torque to 5 Nm (44 in-lbs).
• If you removed any plastic push clips, use the trim clip removal tool or flathead screwdriver to carefully pop them back in.

Step 10: Test the turn signals

• 🔸 Close the hood fully.
• Turn the ignition to ON (engine can be off) and use the turn signal stalk to test left and right front signals.
• Check that both front signals flash normally and at the same speed as the rears.
• If one side is not working, recheck that the bulb is fully seated and the socket is locked and plugged in.

---

✅ After Repair

• 🔸 Verify both front and rear turn signals and hazard lights work correctly from outside the car.
• 🔸 Check around the headlight area to confirm no loose parts, covers, or tools left in the engine bay.
• 🔸 Take a short drive in the evening and confirm brightness and visibility of the new bulbs.

---

💰 DIY vs Shop Cost

Shop Cost: $80–$140 (parts + labor)

DIY Cost: $10–$25 (parts only)

You Save: $55–$115 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.3–0.5 hours.

---
