🔧 Equinox - Front Turn Signal Bulb Replacement

You’ll be removing the headlight assembly to access and replace the front turn signal bulbs on your Equinox. The job is mostly about careful plastic trim removal and a few bolts.

Difficulty Level: Beginner | Estimated Time: 1–1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the engine off, remove the key, and let the lights cool for at least 10 minutes to avoid burns.
• ⚠️ Set the parking brake and work on a flat, level surface.
• ⚠️ Do not touch the glass part of any bulb with bare fingers; oil from skin can shorten bulb life.
• ⚠️ Be gentle with plastic clips and trim pieces; they can crack if forced or in hot sun.
• ⚠️ Battery disconnect is not required, but avoid turning lights on while the bulbs are removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔹 10mm socket
• 🔹 7mm socket
• 🔹 1/4" drive ratchet
• 🔹 1/4" drive extension (3–6")
• 🔹 Flat trim removal tool (plastic)
• 🔹 Flathead screwdriver (small)
• 🔹 Needle-nose pliers
• 🔹 Work gloves
• 🔹 Safety glasses
• 🔹 Fender cover or clean towel
• 🔹 Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔹 Front turn signal bulb (amber, left side) - Qty: 1
• 🔹 Front turn signal bulb (amber, right side) - Qty: 1 (replace in pairs)
• 🔹 Dielectric grease for bulb sockets - Qty: 1 small tube
• 🔹 Plastic push-pin retainers for upper radiator cover - Qty: 4–6 (optional, in case any break)

---

📋 Before You Begin

• Park the Equinox on level ground, set the parking brake, and switch the lights and ignition off.
• Open the hood and support it with the hood prop rod.
• Lay a fender cover or clean towel over the front bumper and fender edges to prevent scratches.
• Have your new bulbs ready so you can swap them quickly and avoid dust getting into the sockets.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the upper radiator cover

• Use the flat trim removal tool or flathead screwdriver to gently pry up the center pins of the plastic push clips along the black plastic cover at the front, just behind the grille.
• Lift each clip out completely with the trim tool or needle-nose pliers.
• Lift the plastic cover off and set it aside safely.

Step 2: Remove upper headlight mounting bolts

• Locate the top of the headlight assembly on the side you’re working on; you’ll see bolts holding it to the body.
• Use a 10mm socket and ratchet to remove the visible upper headlight bolts.
• Keep these bolts in a safe place; you’ll reuse them.

Step 3: Loosen front bumper/valance from the fender and headlight area

• Look in the wheel well at the front edge of the fender liner (just behind the front bumper).
• Turn the steering wheel to the opposite side for easier access.
• Use a 7mm socket and ratchet to remove the small screws securing the front of the wheel well liner to the bumper and fender on the side you’re working on.

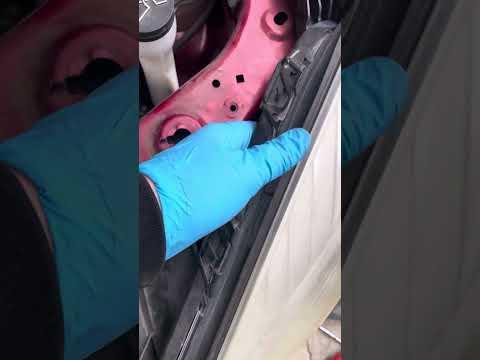

• Gently pull back the edge of the wheel well liner with your hand to expose where the bumper meets the fender and headlight.
• Using the flat trim removal tool, carefully release the plastic clips that hold the bumper to the headlight and fender. Work slowly to avoid cracking tabs.

Step 4: Release the headlight assembly

• With the bumper edge slightly pulled away, look for any remaining headlight mounting bolt near the side or lower area.
• Use the 10mm socket and extension with the ratchet to remove any remaining headlight bolt(s).
• Gently pull the headlight assembly straight forward. You may need to wiggle slightly to release the locating pins.
• Support the headlight with one hand so it doesn’t hang by the wiring.

Step 5: Disconnect the headlight wiring harness

• Locate the main electrical connector on the back of the headlight assembly.
• Press the locking tab with your thumb or the tip of the flathead screwdriver and gently pull the connector straight out.
• Set the headlight assembly on a soft surface (towel or fender cover) to prevent scratching the lens.

Step 6: Locate and remove the front turn signal bulb

• On the back of the headlight assembly, identify the turn signal bulb socket (usually the lower or outer bulb, with amber glass or clear bulb in an amber reflector).
• Grasp the socket firmly and turn it counterclockwise about a quarter-turn.
• Pull the socket straight out from the headlight housing.
• Gently pull the old bulb straight out of the socket with your fingers or gloved hand.

Step 7: Install the new bulb

• Before installing, apply a tiny amount of dielectric grease to the bulb’s base contacts (metal areas), not the glass.
• Insert the new turn signal bulb straight into the socket until it clicks or feels fully seated.
• Align the tabs on the bulb socket with the slots in the headlight housing.
• Insert the socket into the housing and turn it clockwise about a quarter-turn to lock it in place.

Step 8: Reconnect and test the turn signal

• Reconnect the main wiring harness connector to the back of the headlight assembly until it clicks.
• Temporarily position the headlight in place (you don’t need to bolt it fully yet).
• Turn the ignition to accessory and switch on the turn signal for the side you worked on.
• Confirm the new bulb flashes at normal speed and brightness.
• Turn ignition and lights back off before final reassembly.

Step 9: Reinstall the headlight assembly

• Fit the headlight assembly back into its mounting area, making sure the locating pins line up with their holes.
• Install the headlight bolts by hand first to avoid cross-threading.
• Use the 10mm socket and ratchet to tighten the bolts evenly.
• Torque to 9 Nm (80 in-lbs) or snug plus a small additional turn. Do not overtighten; bolts are small.

Step 10: Reattach bumper edge and wheel well liner

• Push the bumper edge back into position so its clips engage with the headlight and fender. You’ll hear or feel them click.
• Reposition the wheel well liner into place.
• Use the 7mm socket and ratchet to reinstall the screws that hold the liner to the bumper and fender.
• Torque to 3–4 Nm (27–35 in-lbs), or just snug. These are small screws.

Step 11: Reinstall the upper radiator cover

• Place the plastic upper radiator cover back into position over the grille area.
• Align the holes with the holes in the metal support underneath.
• Insert each plastic push clip, then press the center pin down to lock it.

Step 12: Repeat on the other side

• Repeat all steps on the opposite front turn signal so both sides are equally bright and have the same color.

---

✅ After Repair

• 🔹 Turn on the hazard lights and walk around the vehicle to confirm both front turn signals flash at the same speed and brightness.
• 🔹 Check left and right turn signals individually with the ignition on.
• 🔹 Verify that the headlights, parking lights, and other bulbs in the headlight assembly still work correctly.
• 🔹 Close the hood securely and make sure the bumper and headlight gaps look even and properly aligned.

---

💰 DIY vs Shop Cost

Shop Cost: $120–$180 (parts + labor)

DIY Cost: $10–$30 (parts only, both bulbs)

You Save: $90–$150 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.7–1.0 hours.

---
