🔧 SRX - Front Turn Signal Bulb Replacement

Your SRX’s front turn signal bulb sits in the headlamp housing and is usually accessed from the wheel-well liner. Replacing it restores proper signaling and visibility, and it’s a quick job with basic hand tools.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: front turn bulb is an amber wedge bulb (verify the number on your old bulb).

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and use jack stands if lifting.
• ⚠️ Turn the ignition OFF and remove the key before working near the headlamp wiring.
• ⚠️ Do not touch the glass part of any bulb; oils from skin can shorten bulb life.
• ⚠️ Let the headlamp area cool if lights were recently on.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 19mm socket
• 3/8" drive ratchet
• Torque wrench (20-200 Nm range)
• 7mm socket
• Trim clip removal tool
• Work light
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber) - Replace in pairs - Qty: 2
• Wheel liner push clips - Qty: 2-6

---

📋 Before You Begin

• Park on a flat surface, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Turn the steering wheel fully away from the side you’re working on (gives more room at the wheel liner).
• If you choose to remove the wheel for extra space, loosen lug nuts slightly before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create access at the wheel well

• Turn the steering wheel to open up space at the front of the wheel liner.
• If you need more room, use a 19mm socket and 3/8" drive ratchet to loosen the lug nuts 1 turn (do not remove yet).
• Lift the front corner with a floor jack and support with jack stands.
• Remove the wheel using the 19mm socket and 3/8" drive ratchet.

Step 2: Pull back the front fender liner

• Use a trim clip removal tool to remove the plastic push-clips along the front edge of the wheel liner.
• If equipped with small screws, remove them with a 7mm socket and 3/8" drive ratchet.
• Gently pull the liner back just enough to reach behind the headlamp. Don’t crease the liner.

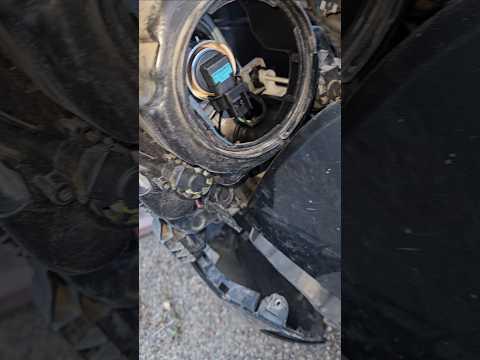

Step 3: Remove the turn signal bulb socket

• Use a work light to locate the turn signal bulb socket at the back of the headlamp.
• Grab the socket and rotate it counterclockwise about a quarter-turn to unlock it.
• Pull the socket straight out of the headlamp housing.

Step 4: Replace the bulb

• Wear nitrile gloves (helps keep oils off the bulb).
• Pull the old bulb straight out of the socket (it’s a “wedge” style bulb, meaning it’s held by friction, not threads).
• Push the new amber bulb straight into the socket until fully seated.

Step 5: Reinstall the socket and liner

• Insert the socket back into the headlamp and turn clockwise to lock.
• Reposition the wheel liner and reinstall all clips using the trim clip removal tool (and screws with the 7mm socket if present).

Step 6: Reinstall the wheel (if removed)

• Install the wheel and hand-thread the lug nuts.
• Snug the lug nuts in a star pattern using a 19mm socket and 3/8" drive ratchet.
• Lower the vehicle and final-tighten with a torque wrench: Torque to 140 Nm (103 ft-lbs) in a star pattern.

---

✅ After Repair

• Turn the ignition ON and test the turn signals and hazards on both sides.
• Verify the turn signal flashes normally (a very fast flash usually means a bulb isn’t working).
• Check that the wheel liner is secured and not rubbing the tire.

---

💰 DIY vs Shop Cost

Shop Cost: $90-$180 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $80-$140 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
