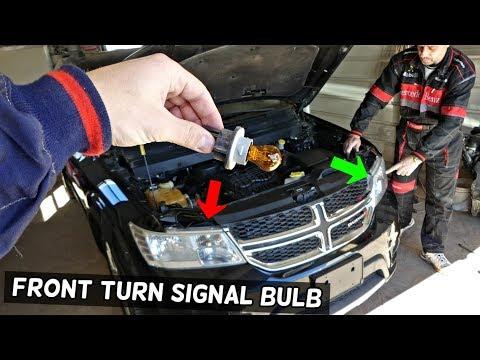

🔧 Journey - Front Turn Signal Bulb Replacement

Your Journey’s front turn signal bulbs sit in the headlight housing and usually get replaced from behind the headlight through the front wheel-well access panel. The job is quick, but the tight space makes it a little fiddly.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before working around bulbs and wiring.
• ⚠️ Let the headlight area cool; bulbs and housings can be hot.
• ⚠️ Don’t touch the new bulb glass with bare fingers; skin oil can shorten bulb life.
• ⚠️ If you raise the front, support it with jack stands—never rely on a floor jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim clip removal tool
• Flathead screwdriver
• 8mm socket
• 1/4" ratchet
• 6" socket extension
• Torque wrench (in-lb)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber, dual-function) - Qty: 2
• Dielectric grease - Qty: 1
• Replacement plastic push clips (wheel liner) - Qty: 4

---

📋 Before You Begin

• Park on a level surface, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Turn the steering wheel fully away from the side you’re working on to create more room in the wheel well.
• Assumption: access is through the wheel liner.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create access in the front wheel well

• Turn the wheel to full lock (all the way) to open up space behind the tire.
• If you need more room, lift that front corner using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Use safety glasses and a flashlight so you can see the fasteners clearly.

Step 2: Loosen the wheel liner (splash shield)

• Remove the plastic push clips using a trim clip removal tool. If they’re stubborn, gently help the center pin up with a flathead screwdriver.
• Remove any small screws/bolts at the front edge of the liner using an 8mm socket, 1/4" ratchet, and 6" socket extension.
• Pull the liner back just enough to get your hand behind the headlight housing.
• When reinstalling these small fasteners later: Torque to 35 in-lbs (4 Nm).

Step 3: Remove the front turn signal bulb socket

• Reach behind the headlight and find the turn signal/park light socket (a twist-lock socket in the headlight housing).
• Twist the socket counterclockwise by hand to unlock it, then pull it straight out.
• If it’s tight, use nitrile gloves for grip and wiggle gently—don’t yank the wiring.

Step 4: Replace the bulb

• Pull the old bulb straight out of the socket (it’s a “wedge” style bulb, meaning it just pulls out—no threads).
• Install the new amber bulb by pushing it straight into the socket until fully seated.
• Apply a tiny smear of dielectric grease to the socket seal area (not on the bulb glass). Dielectric grease helps keep moisture out.

Step 5: Reinstall the socket and wheel liner

• Insert the socket back into the headlight housing and twist clockwise until it locks.
• Reposition the liner and reinstall the screws/bolts using the 8mm socket, 1/4" ratchet, and 6" socket extension.
• Reinstall the push clips using the trim clip removal tool.
• Final tighten: Torque to 35 in-lbs (4 Nm).

Step 6: Repeat on the other side

• Do the same process on the other front wheel well.
• Replace bulbs in pairs for matching brightness.

---

✅ After Repair

• Test both sides using the turn signals and the hazard lights.
• Verify the bulb flashes normally (very fast blinking usually means a bulb isn’t working or seated).
• Make sure the wheel liner is secured and not rubbing the tire when you turn full lock left and right.

---

💰 DIY vs Shop Cost

Shop Cost: $60-$140 (parts + labor)

DIY Cost: $10-$30 (parts only)

You Save: $50-$110 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
