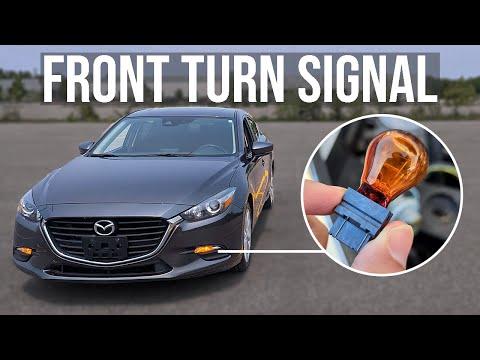

🔧 Mazda3 - Front Turn Signal Bulb Replacement

Your Mazda3’s front turn signals are housed inside the headlight assemblies. On most Touring models with halogen headlights, the bulb is replaceable from behind the headlight in the engine bay by removing the bulb socket and swapping the bulb.

If your Mazda3 has LED front turn signals (integrated into the headlight), the “bulb” is not serviceable separately and the headlight assembly typically must be replaced.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and switch all lights OFF before starting.
• ⚠️ Let the headlight area cool if the lights were on (hot bulbs can burn you).
• ⚠️ Do not touch the new bulb’s glass with bare fingers (oil can shorten bulb life).
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Trim clip removal tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber, 7440) - Replace in pairs - Qty: 2
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🔎 Park on level ground, shift to Park, and set the parking brake.
• 🔎 Open the hood and support it securely.
• 🔎 Have your flashlight ready so you can see the bulb socket behind the headlight.
• 🔎 Trim clip removal tool note: it’s a small pry tool made to pop plastic fasteners without breaking them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm you have replaceable turn signal bulbs

• Use your flashlight to look behind each headlight for a removable bulb socket with wiring going into it.
• If you do not see a removable socket and the back of the headlight looks fully sealed for the turn signal area, your Mazda3 likely has LED turn signals (assembly-level repair).
• When unsure, send a photo of behind the headlight.

Step 2: Create working room (only if access is tight)

• Put on nitrile gloves and safety glasses.
• If the passenger-side rear of the headlight is blocked by the intake snorkel/ducting, use a trim clip removal tool to pop any plastic clips, then use a 10mm socket, 1/4" ratchet, and 6" socket extension to remove any 10mm bolts holding the duct (as equipped).
• If the driver-side area is tight near the battery/washer neck, gently move flexible ducts out of the way by hand (don’t kink or force plastic parts).

Step 3: Remove the front turn signal bulb socket

• Locate the turn signal socket at the back of the headlight (it will be a twist-lock socket).
• Grip the socket firmly and rotate it counterclockwise about 1/4 turn by hand.
• Pull the socket straight out of the headlight.

Step 4: Replace the bulb

• Remove the old bulb by pulling it straight out of the socket (it’s a push-in style).
• Install the new front turn signal bulb (amber, 7440) by pushing it straight into the socket until fully seated.
• Optional: apply a tiny amount of dielectric grease to the socket seal area only (dielectric grease is a non-conductive grease that helps keep moisture out).

Step 5: Reinstall the socket

• Insert the socket back into the headlight, making sure it sits flat and aligned.
• Rotate the socket clockwise about 1/4 turn until it locks.

Step 6: Reinstall any intake ducting or clips you removed

• Reinstall any 10mm bolts using the 10mm socket, 1/4" ratchet, and 6" socket extension.
• Reinstall any plastic clips by pressing them back in (use the trim clip removal tool only if needed to align the clip).
• Torque to 7-10 Nm (62-89 in-lbs) for small 10mm duct/air guide bolts (snug, not over-tight).

---

✅ After Repair

• ✅ Test the left and right turn signals, then test the hazard lights.
• ✅ Make sure the turn signal blink rate is normal (fast blinking can mean the wrong bulb type or a connection issue).
• ✅ Check that the socket is fully locked and no wiring is rubbing on anything.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $40-$170 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
