🔧 Corolla - Front Strut Replacement (and Rear Shock Replacement)

On your Corolla, the front suspension uses struts, but the rear uses shocks + separate coil springs (no rear struts). Replacing worn struts/shocks restores ride control, braking stability, and tire wear.

Before I tailor this perfectly: Are you replacing front only or front + rear? And are you installing complete “quick-strut” assemblies or reusing your coil springs?

Difficulty Level: Intermediate | Estimated Time: 3-6 hours (front pair); +1-2 hours (rear pair)

---

⚠️ Safety & Precautions

• ⚠️ Coil springs store huge energy. If reusing springs, only remove the strut center nut with the spring fully compressed using a spring compressor.
• ⚠️ Support the car on jack stands under solid lift points; never rely on a jack.
• ⚠️ Do not let the steering knuckle hang by the brake hose or ABS wire; support it.
• ⚠️ Plan on a front-end alignment after front strut work.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 1/2" (30–200 ft-lbs range)
• Torque wrench 3/8" (10–80 ft-lbs range)
• Ratchet 3/8"
• Socket set: 10mm, 12mm, 14mm, 17mm, 19mm, 21mm
• Wrench set: 14mm, 17mm, 19mm
• Allen key 6mm
• Needle-nose pliers
• Pry bar
• Hammer
• Penetrating oil
• Paint marker
• Bungee cord
• Spring compressor (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front struts - Replace in pairs - Qty: 2
• Front strut mounts (with bearing) - Replace in pairs - Qty: 2
• Front bump stops and dust boots - Replace in pairs - Qty: 1 kit
• Front strut-to-knuckle nuts/bolts (optional, if corroded) - Qty: 1 set
• Rear shock absorbers - Replace in pairs - Qty: 2
• Rear shock upper/lower hardware (optional, if corroded) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels if doing the front; chock the front wheels if doing the rear.
• Use a 21mm socket to loosen lug nuts 1/2 turn before lifting.
• Spray penetrating oil on the front strut-to-knuckle bolts and sway bar end link nut before you start.
• Quick-struts avoid spring compressor risk.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use a floor jack to lift the front and place jack stands securely.
• Remove lug nuts with a 21mm socket, then remove both front wheels.

Step 2: Disconnect brackets and the sway bar end link from the strut

• Remove the brake hose/ABS brackets from the strut using a 10mm socket and/or 12mm socket (varies by bracket).
• Remove the sway bar end link nut at the strut using a 17mm wrench.
• If the stud spins, hold it with a 6mm Allen key while turning the nut with the 17mm wrench. (An end link is the small rod that connects the sway bar to the strut.)

Step 3: Mark the strut-to-knuckle position (helps alignment)

• Use a paint marker to mark the outline where the strut meets the steering knuckle.
• This won’t replace an alignment, but it helps you get close.

Step 4: Remove the strut-to-knuckle bolts

• Support the knuckle with a bungee cord so it doesn’t pull on the brake hose.
• Remove the two large bolts/nuts using a 19mm socket and breaker bar (hold one side with a 19mm wrench as needed).
• If stuck, tap the bolts out with a hammer and use a pry bar to separate the joint carefully.

Step 5: Remove the strut top nuts and pull the strut out

• Open the hood.
• Remove the three top mount nuts using a 14mm socket.
• Hold the strut with one hand as you remove the last nut, then remove the strut assembly from the wheel well.

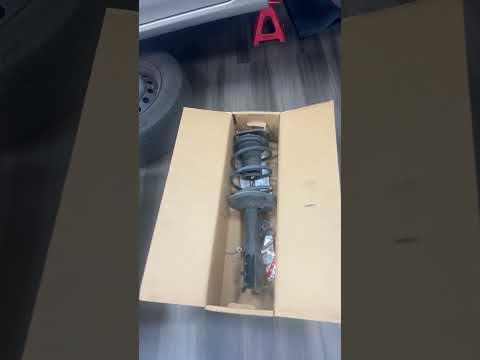

Step 6A: If installing complete quick-struts (recommended)

• Skip spring transfer. Put the new assembly into position.
• Start the three top nuts by hand using a 14mm socket (do not fully tighten yet).

Step 6B: If reusing your coil springs (spring transfer)

• Install a spring compressor (specialty) on opposite sides of the spring and tighten evenly with a ratchet until the spring is loose in the perch.
• Remove the strut center nut using a 17mm socket while holding the shaft with a 6mm Allen key (varies by strut).
• Transfer spring, dust boot, bump stop, and mount to the new strut in the same order.
• Tighten the center nut to Torque to 55 Nm (41 ft-lbs).
• Slowly and evenly release the spring compressor and confirm the spring seats correctly at the ends.

Step 7: Reinstall the strut to the knuckle

• Slide the strut into the knuckle and install the two bolts/nuts using a 19mm socket and breaker bar.
• Line up your paint marks as closely as possible.
• Tighten strut-to-knuckle fasteners: Torque to 177 Nm (131 ft-lbs).

Step 8: Reattach the sway bar end link and brackets

• Install the end link nut using a 17mm wrench, holding the stud with a 6mm Allen key if needed.
• Tighten end link nut: Torque to 55 Nm (41 ft-lbs).
• Reinstall brake hose/ABS brackets using a 10mm socket and/or 12mm socket.
• Tighten bracket bolts: Torque to 29 Nm (21 ft-lbs).

Step 9: Tighten the top mount nuts

• Tighten the three top mount nuts using a 14mm socket.
• Tighten top mount nuts: Torque to 39 Nm (29 ft-lbs).

Step 10: Reinstall wheels and lower the car

• Install wheels and hand-tighten lug nuts using a 21mm socket.
• Lower the car using a floor jack.
• Tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

Step 11 (Optional): Rear shock replacement (your Corolla’s rear)

• Lift the rear with a floor jack and support with jack stands, then remove rear wheels using a 21mm socket.
• Support the rear axle beam with the floor jack so it doesn’t drop.
• Remove the lower shock bolt using a 17mm socket and 17mm wrench.
• Inside the trunk, pull back trim enough to access the shock top nut(s), then remove using a 14mm socket.
• Install the new shock, start all fasteners by hand, then tighten:
• Lower shock bolt: Torque to 74 Nm (55 ft-lbs)
• Upper shock nut(s): Torque to 19 Nm (14 ft-lbs)
• Reinstall wheels and torque lug nuts: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Double-check all fasteners are torqued and all brake hose/ABS brackets are secured.
• Road test at low speed first; listen for clunks over bumps.
• Get a front wheel alignment as soon as possible (same day if you can).
• Re-check lug nut torque after 25–50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor, front pair; more if rear included)

DIY Cost: $250-$750 (parts only, depends on quick-struts vs separate parts)

You Save: $650-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
