🔧 Corolla - Front Strut Replacement

On your Corolla, the “struts” are in the front. They support the car’s weight, control bouncing, and affect braking/steering stability. This job is very doable at home, but it’s safest (and fastest) if you install complete pre-assembled strut units (“quick struts”).

Difficulty Level: Intermediate | Estimated Time: 3-5 hours (both fronts)

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ If you are reusing your coil spring, a coil spring compressor is required. The spring stores a lot of energy and can cause serious injury if released suddenly.
• ⚠️ Do not let the knuckle hang by the brake hose or ABS wire; support it with a bungee cord.
• ⚠️ Plan on getting a 4-wheel alignment after strut replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm lug nut socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 ft-lbs range)
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 6mm hex key
• Box-end wrench set (14mm-19mm)
• Flat pry bar
• Rubber mallet
• Needle-nose pliers
• Penetrating oil
• Paint marker
• Bungee cord
• Coil spring compressor (specialty)
• Pass-through strut nut socket set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front complete strut assemblies (quick struts) - Replace in pairs - Qty: 2
• Front sway bar end links - Replace in pairs (recommended if boots torn/loose) - Qty: 2
• Upper strut mount nuts - Qty: 6
• Lower strut-to-knuckle bolts and nuts - Qty: 4

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Crack the front lug nuts loose before lifting the car (use 21mm lug nut socket and breaker bar).
• Decide your parts plan:
  • Best for beginners: install quick struts (spring already installed).
  • If reusing springs: you must use a coil spring compressor (it clamps the spring so it can’t expand).
• Spray penetrating oil on the two big strut-to-knuckle bolts and the sway bar end link nut.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use a floor jack to lift the front and place the car on jack stands.
• Remove both front wheels using a 21mm lug nut socket.
• When reinstalling later: Torque to 103 Nm (76 ft-lbs).

Step 2: Unbolt the brake hose/ABS brackets from the strut

• On the strut body, remove the brake hose bracket bolt using a 12mm socket.
• If equipped, unclip/unbolt the ABS wire bracket from the strut using a 10mm or 12mm socket (use whichever fits your bracket bolt).
• Don’t pull on the ABS wire.

Step 3: Disconnect the sway bar end link from the strut

• Remove the end link nut at the strut using a 17mm socket.
• If the stud spins, hold the stud with a 6mm hex key while turning the nut.
• Torque to 74 Nm (55 ft-lbs) during reassembly.

Step 4: Mark the strut-to-knuckle position

• Use a paint marker to mark around the strut-to-knuckle connection so you can reinstall close to the original position.
• This helps, but you still need an alignment afterward.

Step 5: Remove the two strut-to-knuckle bolts

• Support the knuckle with a bungee cord so it doesn’t tug on the brake hose.
• Remove the two large bolts/nuts using a 19mm socket and breaker bar (use a box-end wrench on the back side if needed).
• Tap the bolts out with a rubber mallet if they’re stuck.
• During reassembly: Torque to 177 Nm (131 ft-lbs).

Step 6: Remove the upper strut mount nuts

• Open the hood.
• Remove the three upper mount nuts using a 14mm socket.
• Hold the strut with one hand as you remove the last nut, then lower the strut out through the wheel well.
• During reassembly: Torque to 47 Nm (35 ft-lbs).

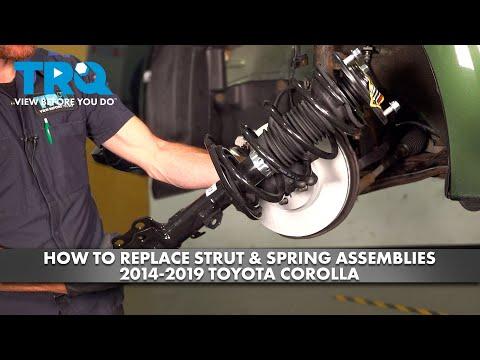

Step 7: Install the new strut (quick strut path)

• Guide the new strut up into the strut tower and hand-start the three top nuts using a 14mm socket.
• Align the lower strut bracket with the knuckle and slide in the two bolts (use a pry bar to line up holes if needed).
• Tighten and torque:
  • Upper mount nuts: Torque to 47 Nm (35 ft-lbs) (use torque wrench and 14mm socket)
  • Strut-to-knuckle bolts: Torque to 177 Nm (131 ft-lbs) (use torque wrench and 19mm socket)

Step 8: If transferring the spring (non-quick strut path)

• Install a coil spring compressor (specialty) onto the spring. Tighten both sides evenly until the spring is loose in the mount.
• Remove the strut shaft nut using a pass-through strut nut socket set (specialty) while holding the shaft per tool instructions.
• Move the spring and upper mount to the new strut in the same orientation, then reinstall the shaft nut.
• Slowly release the compressor evenly until the spring seats fully.
• If anything binds, stop and reset.

Step 9: Reconnect brackets and end link

• Reconnect the sway bar end link using a 17mm socket and 6mm hex key as needed.
• Torque to 74 Nm (55 ft-lbs).
• Reinstall the brake hose/ABS brackets using the correct socket (12mm socket typically).

Step 10: Reinstall wheels and lower the car

• Reinstall wheels and hand-tighten lug nuts using a 21mm lug nut socket.
• Lower the car, then final-tighten lug nuts with a torque wrench.
• Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock and confirm the brake hose and ABS wire are not stretched or rubbing.
• Road test at low speed first. Listen for clunks over bumps.
• Get a 4-wheel alignment as soon as possible to prevent tire wear and pulling.
• If you replaced sway bar links, recheck for tightness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor, both front struts + alignment)

DIY Cost: $300-$800 (parts only, both front quick struts)

You Save: $600-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
