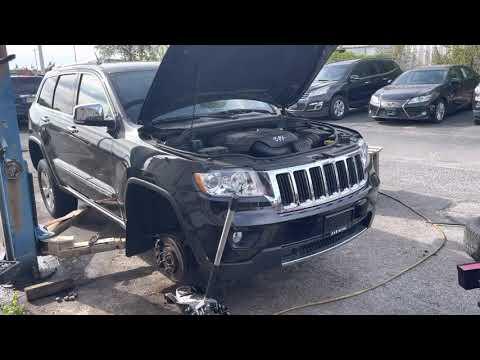

🔧 Grand Cherokee - Front Strut Replacement

On your Grand Cherokee, the “struts” are the front suspension units that hold the coil spring and shock together. Replacing worn struts restores ride control, reduces clunks/bouncing, and helps tire wear.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Quick check (2 questions): Are you replacing the front struts only or front + rear? And are you installing complete strut assemblies (recommended) or reusing the coil springs?

---

⚠️ Safety & Precautions

• ⚠️ Support the SUV with jack stands; never rely on a floor jack.
• ⚠️ If reusing springs, a coil spring compressor is required; stored spring energy can cause serious injury.
• ⚠️ Keep the steering knuckle supported so the CV axle and brake hose aren’t pulled or over-bent.
• ⚠️ Work on level ground, use wheel chocks, and keep hands clear when lowering/raising the knuckle.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Ratchet
• Breaker bar
• Torque wrench (20-250 ft-lbs range)
• 13mm socket
• 15mm socket
• 18mm socket
• 21mm socket
• 18mm wrench
• 21mm wrench
• Pry bar
• Needle-nose pliers
• Paint marker
• Penetrating oil
• Coil spring compressor (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front complete strut assemblies - Replace in pairs - Qty: 2
• Front strut mount and bearing kit - If not included with assemblies - Qty: 2
• Front bump stop and dust boot kit - If not included - Qty: 2
• Front strut-to-knuckle bolts and nuts - Recommended to replace - Qty: 2 sets
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front lug nuts 1 turn with a 21mm socket before lifting.
• Spray penetrating oil on the strut-to-knuckle bolts and sway bar end link nut now.
• If you’re reusing springs: set up the coil spring compressor (it clamps the coil so it can’t “pop” apart).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Set the SUV onto jack stands (rated 3-ton minimum).
• Remove the wheel using a 21mm socket.

Step 2: Free the hose/wire brackets from the strut

• Remove any brake hose/ABS wire retaining bolts from the strut using a 10mm socket or 13mm socket (varies by bracket).
• Use needle-nose pliers to release any push clips carefully.
• Tip: Don’t let the knuckle hang by hoses.

Step 3: Disconnect the sway bar end link from the strut

• Remove the end link nut at the strut using an 18mm wrench and 18mm socket.
• If the stud spins, hold it steady with the appropriate internal hex if equipped, while turning the nut with the 18mm wrench.
• Torque to 81 Nm (60 ft-lbs) during reassembly.

Step 4: Mark alignment reference (helps keep close to original)

• Use a paint marker to mark the strut-to-knuckle bolt positions relative to the knuckle.
• This is not a substitute for an alignment, but it helps you get to the shop safely.

Step 5: Support the steering knuckle

• Place a floor jack (rated 3-ton minimum) under the lower control arm or knuckle area to support it.
• Raise just enough to remove tension from the strut bolts.

Step 6: Remove the strut-to-knuckle bolts

• Remove the two lower bolts/nuts using an 21mm socket and 21mm wrench (some hardware uses 18mm—match what’s on your vehicle).
• Use a breaker bar if tight, then tap bolts out carefully.
• Torque to 203 Nm (150 ft-lbs) during reassembly.

Step 7: Remove the upper strut mount nuts

• Open the hood.
• At the top of the strut tower, remove the upper mount nuts using a 15mm socket (size can vary).
• Leave one nut loosely threaded until you’re ready to catch the strut.
• Torque to 54 Nm (40 ft-lbs) during reassembly.

Step 8: Remove the strut assembly

• Hold the strut with one hand and remove the last upper nut using a 15mm socket.
• Lower the strut down and out of the wheel well.

Step 9: If reusing the spring (skip if using complete assemblies)

• Install the coil spring compressor (specialty) on opposite sides of the spring and compress evenly until the spring is loose in the seats.
• Remove the center top nut using the correct socket and wrench setup for your strut.
• Transfer the mount/bearing, isolators, dust boot, and bump stop to the new strut.
• Slowly release the compressor, making sure the spring ends sit in the pockets.

Step 10: Install the new strut

• Position the new strut into the tower and hand-thread the upper nuts using a 15mm socket.
• Align the lower strut bracket to the knuckle and slide the bolts in.
• Snug the lower bolts using a 21mm socket and 21mm wrench, matching your paint marks.

Step 11: Torque fasteners and reconnect brackets

• Torque the strut-to-knuckle bolts using a torque wrench: Torque to 203 Nm (150 ft-lbs).
• Torque the upper mount nuts using a torque wrench: Torque to 54 Nm (40 ft-lbs).
• Reconnect the sway bar end link using an 18mm wrench and 18mm socket: Torque to 81 Nm (60 ft-lbs).
• Reinstall brake hose/ABS brackets using a 10mm socket or 13mm socket.

Step 12: Reinstall wheel and lower

• Install the wheel and hand-thread lug nuts.
• Lower the SUV off the jack stands using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern with a torque wrench: Torque to 176 Nm (130 ft-lbs).

---

✅ After Repair

• Double-check that the brake hose and ABS wire are clipped back and not rubbing.
• Test drive slowly over small bumps and listen for any clunks.
• Get a front wheel alignment as soon as possible (strut removal can change camber/toe).
• If you replaced only one side, expect handling/braking to feel uneven; replace in pairs.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor + alignment)

DIY Cost: $300-$900 (parts only, plus alignment)

You Save: $600-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
