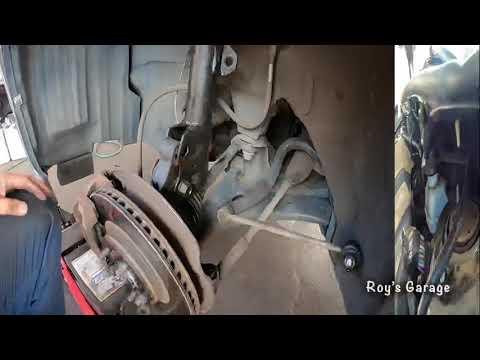

🔧 Corolla - Front Strut Replacement

On your Corolla, the front suspension uses strut assemblies (strut + spring + top mount). Replacing worn struts restores ride control, braking stability, and tire wear.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (both fronts)

---

⚠️ Safety & Precautions

• ⚠️ The coil spring is stored energy—use a proper spring compressor or install complete quick-struts.
• ⚠️ Support your Corolla on jack stands; never work under a car held only by a jack.
• ⚠️ Don’t let the knuckle/hub hang by the brake hose or ABS wire.
• ⚠️ After strut replacement, a wheel alignment is required to prevent pulling and tire wear.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8"
• Torque wrench 1/2"
• Socket set (10mm-22mm)
• Wrench set (10mm-19mm)
• 6mm Allen key
• Pry bar
• Hammer
• Punch
• Needle-nose pliers
• Spring compressor (specialty)
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front strut assemblies - Replace in pairs - Qty: 2
• Front strut top mount - Replace in pairs - Qty: 2
• Front strut bearing - Replace in pairs - Qty: 2
• Front strut dust boot and bump stop kit - Replace in pairs - Qty: 2
• Front sway bar end links - Optional if worn - Qty: 2

---

📋 Before You Begin

• Park on level ground, steering wheel straight, and set the parking brake.
• Chock the rear wheels.
• Loosen the front wheel lug nuts using a breaker bar before lifting.
• If you’re not reusing the spring: buy complete “quick-strut” assemblies to avoid using a spring compressor.
• “Knuckle” means the part that holds the hub/wheel bearing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use a floor jack (rated 3-ton minimum) to lift the front of your Corolla at the front center jack point.
• Set the car down onto jack stands (rated 3-ton minimum) at the pinch welds.
• Remove both front wheels using a 21mm socket.
• When reinstalling wheels later: Torque to 103 Nm (76 ft-lbs).

Step 2: Detach brackets and the sway bar link

• Remove the brake hose/ABS wire bracket(s) from the strut using a 10mm socket (and/or 12mm socket depending on bracket).
• Remove the sway bar end link nut at the strut using a 17mm wrench and hold the stud with a 6mm Allen key.
• Spray penetrating oil if the nut fights you.

Step 3: Mark camber position (if equipped) and loosen the strut-to-knuckle bolts

• Look at the two large bolts connecting the strut to the knuckle. If one bolt has an eccentric/offset washer, it’s a camber bolt.
• Use a paint marker to mark the relationship between the strut and knuckle so you can reassemble close to original alignment.
• Support the knuckle so it can’t drop using a floor jack (rated 3-ton minimum) under the lower control arm.
• Remove the two strut-to-knuckle nuts/bolts using a 19mm socket, 19mm wrench, and a breaker bar 1/2".
• If the bolts are stuck, tap them out using a hammer and punch.

Step 4: Remove the strut top nuts and take the strut out

• Open the hood.
• At the top of the strut tower, remove the three mounting nuts using a 14mm socket.
• Hold the strut with one hand as you remove the last nut so it doesn’t fall.
• Pull the strut assembly out of the wheel well.

Step 5 (Option A): Install a complete quick-strut assembly

• Guide the new quick-strut into the strut tower and start the three top nuts by hand using a 14mm socket.
• Slide the knuckle back into position and install the two strut-to-knuckle bolts using a 19mm socket and 19mm wrench.
• Reattach the sway bar end link using a 17mm wrench and 6mm Allen key.
• Reinstall the brake hose/ABS brackets using a 10mm socket (and/or 12mm socket).

Step 5 (Option B): Rebuild your strut (spring compressor required)

• Install a spring compressor (specialty) onto the spring and compress evenly until the spring is loose on the top seat.
• Remove the center top nut using the appropriate socket and a 6mm Allen key if needed to hold the shaft.
• Transfer the spring, dust boot, bump stop, bearing, and mount (replace worn parts).
• Install the top nut, then slowly release the compressor, ensuring the spring ends seat correctly.
• If anything looks crooked, stop and reseat it.

Step 6: Final tightening (torque specs)

• Tighten the three strut mount nuts using a torque wrench 3/8": Torque to 39 Nm (29 ft-lbs).
• Tighten the strut-to-knuckle bolts using a torque wrench 1/2": Torque to 177 Nm (131 ft-lbs).
• Tighten the sway bar end link nut using a torque wrench: Torque to 74 Nm (55 ft-lbs).
• If you removed a brake hose bracket bolt: tighten using a torque wrench: Torque to 29 Nm (21 ft-lbs).

Step 7: Reinstall wheels and lower the car

• Install the wheels and snug lug nuts using a 21mm socket.
• Lower the car using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench 1/2": Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Road-test at low speed first. Listen for clunks over bumps.
• Get a 4-wheel alignment as soon as possible (especially after front struts).
• Recheck lug nut torque after 25-50 miles using a torque wrench 1/2": Torque to 103 Nm (76 ft-lbs).
• If the steering wheel is off-center or it pulls, don’t delay the alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$800 (parts only)

You Save: $650-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
