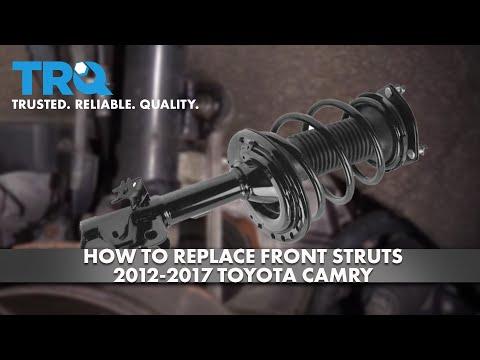

🔧 Camry - Front Strut Replacement

On your Camry, the front suspension uses strut assemblies (spring + shock together). Replacing worn struts restores ride comfort, braking stability, and tire wear control—an alignment is required afterward.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Two quick questions (so I can tailor this perfectly): Are you replacing front struts only or front + rear? And are you installing complete “quick-strut” assemblies or reusing your springs?

---

⚠️ Safety & Precautions

• ⚠️ Never loosen the center nut on the strut mount unless the spring is safely compressed.
• ⚠️ A compressed coil spring stores huge energy—use a quality coil spring compressor (specialty) correctly, or use complete assemblies to avoid spring transfer.
• ⚠️ Support the steering knuckle so the axle/CV joint isn’t over-stretched when the strut is removed.
• ⚠️ Work on a level surface and support the car with jack stands; never rely on a floor jack alone.
• ⚠️ No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Torque wrench (20-200 ft-lbs range)
• Breaker bar (1/2")
• Ratchet (3/8")
• Ratchet (1/2")
• Socket set: 10mm, 12mm, 14mm, 17mm, 19mm, 21mm
• Wrench set: 14mm, 17mm, 19mm
• Allen key 6mm
• Pry bar (24")
• Hammer (2 lb)
• Penetrating oil
• Paint marker
• Bungee cord
• Coil spring compressor (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front strut assemblies (quick-strut) - Replace in pairs - Qty: 2
• OR front struts (bare) - Replace in pairs - Qty: 2
• Front strut mounts/bearings - If reusing springs - Qty: 2
• Front bump stops and dust boots - If not included - Qty: 2
• Front sway bar end links - Optional if worn - Qty: 2

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔩 Break loose the front wheel lug nuts 1/2 turn before lifting (use a 21mm socket).
• 🧴 Spray penetrating oil on the strut-to-knuckle bolts and sway bar link nut (give it 10 minutes).
• 🧭 Plan on a professional alignment after both front struts are replaced.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the car

• Use a floor jack to lift the front, then place jack stands under the proper lift points.
• Remove both front wheels using a 21mm socket.

Step 2: Unbolt brackets from the strut

• Remove the brake hose/line bracket from the strut using a 10mm socket.
• Remove the ABS wire bracket/clip(s) from the strut using a 10mm socket.
• Keep wires relaxed; don’t pull them tight.

Step 3: Disconnect the sway bar end link (if needed for clearance)

• Remove the sway bar end link nut at the strut using a 17mm wrench.
• If the stud spins, hold it with an Allen key 6mm while loosening the nut with the 17mm wrench.

Step 4: Mark and remove the strut-to-knuckle bolts

• Use a paint marker to mark the strut-to-knuckle bolt positions (helps keep alignment close).
• Support the steering knuckle with a bungee cord so the axle doesn’t droop.
• Remove the two strut-to-knuckle nuts/bolts using a 19mm socket and breaker bar (use a 19mm wrench on the opposite side if needed).
• Tap the bolts out using a hammer if they’re stuck (don’t mushroom the threads).

Step 5: Remove the strut top nuts

• Open the hood.
• Locate the strut mount at the top of the strut tower.
• Remove the three strut mount nuts using a 14mm socket.
• Do not remove the center nut on the mount unless the spring is compressed.

Step 6: Remove the strut assembly

• Pull the strut assembly out of the wheel well.
• If it’s tight, use a pry bar gently at the knuckle area while guiding the strut out.

Step 7A: If installing complete quick-strut assemblies (recommended)

• Place the new assembly into the strut tower and start the three top nuts by hand.
• Align the lower strut bracket with the knuckle and slide the bolts in.
• Install the lower nuts and snug everything with a ratchet and 19mm socket.

Step 7B: If reusing your spring (requires spring compressor)

• Install a coil spring compressor (specialty) onto the spring and compress evenly, side-to-side, until the spring is loose on the mount.
• Remove the center nut using a 17mm socket while holding the strut shaft with an Allen key 6mm (as applicable).
• Transfer the spring, boot, bump stop, and mount to the new strut in the same orientation.
• Tighten the center nut with a torque wrench to Torque to 64 Nm (47 ft-lbs).
• Slowly release the spring compressor, making sure the spring seats correctly in the upper and lower perches.
• Stop if anything shifts or binds.

Step 8: Torque the strut fasteners (critical)

• Tighten the upper mount nuts using a torque wrench and 14mm socket: Torque to 47 Nm (35 ft-lbs).
• Tighten the strut-to-knuckle bolts using a torque wrench and 19mm socket: Torque to 177 Nm (131 ft-lbs).
• Reconnect the sway bar end link and tighten using a torque wrench and 17mm wrench: Torque to 74 Nm (55 ft-lbs).
• Reinstall the ABS/brake line brackets using a 10mm socket: Torque to 8 Nm (71 in-lbs).

Step 9: Reinstall wheels and lower the car

• Reinstall the wheels using a 21mm socket.
• Lower the car off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• 🧪 Test drive slowly and listen for clunks over small bumps.
• 🧭 Get a 4-wheel alignment as soon as possible (front camber/toe will shift).
• 🔍 Recheck lug nut torque after 25–50 miles using a torque wrench: Torque to 103 Nm (76 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $800-$1,400 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $550-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
