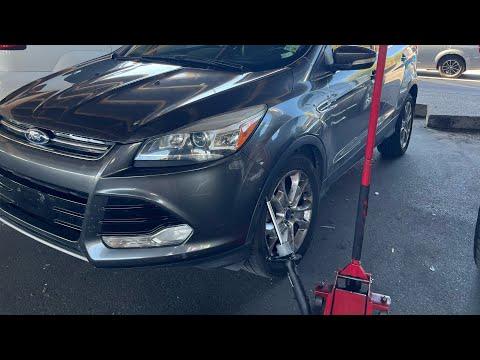

🔧 Escape - Front Strut Replacement

This repair replaces the front strut assemblies on your Escape. The strut supports the vehicle’s weight, controls bouncing, and helps keep the tires planted on the road.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Front struts are part of the suspension and steering system. Incorrect installation can affect handling and braking.
• ⚠️ Always replace front struts in pairs so the vehicle handles evenly.
• ⚠️ Use jack stands on solid ground. Never work under a vehicle supported only by a jack.
• ⚠️ If using bare struts, the coil spring must be compressed with a spring compressor. A compressed spring stores dangerous energy.
• ⚠️ For a beginner, complete loaded strut assemblies are strongly recommended. A loaded strut includes the strut, coil spring, mount, and bearing already assembled.
• ⚠️ Do not disconnect the brake hose or open the brake hydraulic system.
• ⚠️ After replacement, your Escape needs a wheel alignment.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive ratchet
• 19mm socket
• 21mm socket
• 24mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm wrench
• 21mm wrench
• 6mm Allen key
• Flat-blade screwdriver
• Trim clip removal tool
• Paint marker
• Pry bar
• Hammer
• Penetrating oil
• Spring compressor (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front loaded strut assemblies - Left: 1, Right: 1 - Replace in pairs
• Front strut-to-knuckle bolts and nuts - Qty: 4
• Front stabilizer bar link nuts - Qty: 2
• Strut tower upper mounting nuts - Qty: 6
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park your Escape on level, solid ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• Spray penetrating oil on the strut-to-knuckle bolts and stabilizer link nuts. Let it soak for 10-15 minutes.
• Open the hood and locate the three upper strut mounting nuts on each strut tower.
• A torque wrench tightens bolts to a specific tightness. This matters for suspension safety.
• A breaker bar is a long handle used to loosen very tight bolts.
• A spring compressor squeezes the coil spring safely if you are transferring parts to a bare strut.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 19mm socket and 1/2-inch drive breaker bar to loosen each front wheel lug nut about half a turn.
• Do not remove the lug nuts yet.
• Tip: Break them loose on the ground.

Step 2: Lift and Support the Front

• Use the floor jack to lift the front of your Escape at the proper front jacking point.
• Place jack stands under the proper reinforced support points.
• Lower the vehicle gently onto the jack stands.
• Keep the floor jack nearby to support the lower control arm later.

Step 3: Remove the Front Wheels

• Use a 19mm socket to remove the front lug nuts.
• Remove both front wheels and set them flat on the ground.

Step 4: Mark the Strut Position

• Use a paint marker to mark around the lower strut where it meets the steering knuckle.
• The steering knuckle is the large metal part that holds the wheel hub and connects to the strut.
• This mark helps you get close to the original alignment before driving to an alignment shop.

Step 5: Remove the Brake Hose and ABS Wire Brackets

• Use a 10mm socket or 13mm socket as equipped to remove the brake hose bracket bolt from the strut.
• Use a flat-blade screwdriver or trim clip removal tool to release the ABS wheel speed sensor wire clip from the strut.
• Move the hose and wire aside gently. Do not stretch or twist them.

Step 6: Disconnect the Stabilizer Bar Link

• Use an 18mm wrench on the stabilizer link nut.
• If the stud spins, hold the center of the stud with a 6mm Allen key while turning the nut with the 18mm wrench.
• Remove the link from the strut bracket.
• The stabilizer bar link connects the suspension to the sway bar, which helps reduce body roll in turns.

Step 7: Support the Lower Control Arm

• Place the floor jack lightly under the lower control arm.
• Raise it just enough to support the suspension, not enough to lift the vehicle off the jack stand.
• This prevents the knuckle from dropping suddenly when the strut bolts are removed.

Step 8: Remove the Lower Strut-to-Knuckle Bolts

• Use a 24mm socket and 1/2-inch drive breaker bar on the lower strut nuts.
• Use a 21mm wrench on the bolt heads if they turn.
• Remove both lower strut-to-knuckle nuts and bolts.
• Use a hammer to tap the bolts out if they are stuck.
• Use a pry bar carefully to separate the strut from the knuckle.
• Do not pull the knuckle outward hard. That can stress the axle joint.

Step 9: Remove the Upper Strut Mount Nuts

• Open the hood.
• Use a 13mm socket to remove the three upper strut mounting nuts.
• Hold the strut with one hand while removing the last nut.
• Do not remove the large center nut on the strut mount unless the spring is safely compressed.
• Tip: The center nut holds spring tension.

Step 10: Remove the Strut Assembly

• Lower the strut out through the wheel well by hand.
• Use the floor jack to slightly adjust the lower control arm height if the strut binds.
• Compare the old and new strut assemblies side by side before installation.

Step 11: Transfer Parts Only If Using Bare Struts

• If using loaded strut assemblies, skip this step.
• If using bare struts, install the spring compressor (specialty) on opposite sides of the coil spring.
• Tighten the spring compressor (specialty) evenly until the spring is loose against the upper mount.
• Use the correct socket from your spring compressor kit to remove the center shaft nut.
• Transfer the spring, dust boot, bump stop, bearing, and mount to the new strut.
• Because compressed springs are dangerous, beginners should use loaded struts or have a shop transfer the spring.

Step 12: Install the New Strut Assembly

• Guide the new strut up into the strut tower by hand.
• Install the three new upper mounting nuts finger-tight.
• Use a 13mm socket and 3/8-inch drive ratchet to snug them lightly.
• Do not fully torque the upper nuts yet.

Step 13: Attach the Strut to the Steering Knuckle

• Align the lower strut bracket with the steering knuckle using your paint marker reference marks.
• Use the floor jack to raise or lower the control arm until the bolt holes line up.
• Install the new lower strut-to-knuckle bolts and nuts by hand first.
• Use a 24mm socket, 21mm wrench, and 1/2-inch drive torque wrench to tighten the lower fasteners.
• Torque to 175 Nm (129 ft-lbs)

Step 14: Torque the Upper Strut Mount Nuts

• Use a 13mm socket and 3/8-inch drive torque wrench on the three upper strut mounting nuts.
• Torque to 35 Nm (26 ft-lbs)
• Do not use an impact tool on the upper strut mount nuts.

Step 15: Reconnect the Stabilizer Bar Link

• Install the stabilizer bar link into the strut bracket.
• Use an 18mm wrench and 6mm Allen key if the stud spins.
• Torque to 55 Nm (41 ft-lbs)

Step 16: Reinstall the Brake Hose and ABS Wire Brackets

• Use a 10mm socket or 13mm socket as equipped to reinstall the brake hose bracket bolt.
• Torque to 10 Nm (89 in-lbs)
• Use the trim clip removal tool or your fingers to clip the ABS wire back into the strut bracket.
• Make sure the brake hose and ABS wire are not twisted or rubbing the tire.

Step 17: Repeat on the Other Side

• Repeat Steps 4 through 16 on the opposite front strut.
• Use the same tools and torque specs.

Step 18: Reinstall the Front Wheels

• Install the wheels by hand.
• Use a 19mm socket to snug the lug nuts in a star pattern.
• Lower your Escape to the ground with the floor jack.
• Use a 19mm socket and 1/2-inch drive torque wrench to torque the lug nuts in a star pattern.
• Torque to 135 Nm (100 ft-lbs)

---
