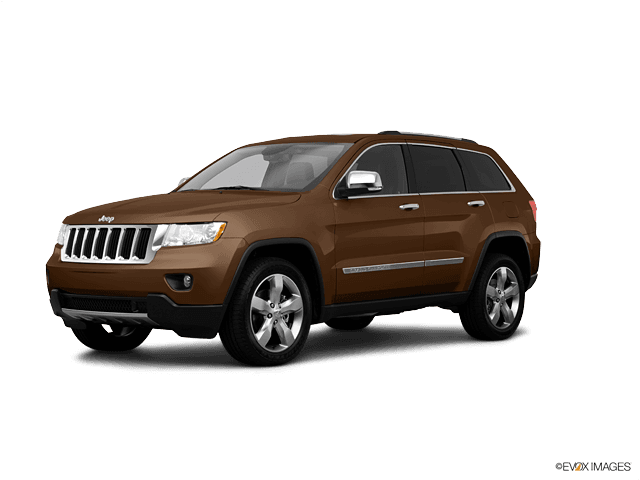

🔧 Grand Cherokee - Strut Replacement

Replacing the struts means removing the complete front strut assemblies (spring + strut) and installing new ones. Worn struts can cause bouncing, clunking over bumps, uneven tire wear, and longer stopping distance.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• 🛑 Never loosen the center nut on top of the strut unless the spring is safely compressed.
• 🛑 Use jack stands; do not work under the A4 supported only by a jack.
• 🛑 Keep hands clear of pinch points at the steering knuckle and control arms.
• 🛑 If equipped with air suspension, do not proceed until it’s disabled properly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8" (10-110 ft-lbs)
• Torque wrench 1/2" (50-250 ft-lbs)
• Socket set 3/8" metric (10mm-21mm)
• Socket set 1/2" metric (18mm-24mm)
• Wrench set metric (10mm-21mm)
• Torx bit set (T25-T50)
• Pry bar 18"
• Hammer 2 lb
• Needle-nose pliers
• Penetrating oil
• Paint marker
• Spring compressor (external, heavy-duty) (specialty)
• Strut nut pass-through socket set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front complete strut assemblies (quick-struts) - Replace in pairs - Qty: 2
• Front upper strut mount and bearing - Replace in pairs - Qty: 2
• Front strut bump stop and dust boot kit - Replace in pairs - Qty: 2
• Front sway bar end links - Replace in pairs - Qty: 2
• Front strut-to-knuckle bolts and nuts - Replace in pairs - Qty: 4

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts 1/2 turn using a breaker bar before lifting.
• Spray penetrating oil on the strut-to-knuckle bolts and sway bar end link nuts and let it soak 10-15 minutes.
• Plan an alignment right after this job.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which struts you’re replacing

• Before I give exact steps and torque specs, answer these 2 quick questions:
• Are you replacing front struts, or do you mean rear shocks too?
• Does your Grand Cherokee have air suspension (Quadra-Lift) or standard coil springs?

Step 2: Lift the front and remove wheels

• Use a floor jack (rated 3-ton minimum) to lift the front at the approved front jacking point.
• Set it securely on jack stands (rated 3-ton minimum).
• Remove the lug nuts using a 21mm socket and remove both front wheels.

Step 3: Disconnect the sway bar end link from the strut

• Use a wrench set metric (10mm-21mm) to hold the end link stud (if it spins) and remove the nut with a 18mm socket.
• Move the end link out of the way.

Step 4: Remove brake hose/ABS wire brackets from the strut

• Remove any small bracket bolts/clips from the strut using a 10mm socket or Torx bit set (T25-T50) (varies by bracket).
• Do not stretch the brake hose or ABS wire.

Step 5: Support the steering knuckle

• Place the floor jack (rated 3-ton minimum) under the lower control arm to lightly support the knuckle.
• This helps prevent the knuckle from dropping when bolts come out.

Step 6: Remove the strut-to-knuckle bolts

• Use a breaker bar 1/2" with a 21mm socket (bolt head) and a wrench set metric (10mm-21mm) (nut) to remove the two bolts.
• If stuck, tap the bolts out with a hammer 2 lb while supporting the knuckle.

Step 7: Remove the upper strut mount nuts

• Open the hood.
• Use a 13mm socket to remove the upper mount nuts (typically 3 nuts).
• Leave the center nut alone for now.

Step 8: Remove the strut assembly

• Lower the knuckle slightly with the floor jack (rated 3-ton minimum).
• Pull the strut assembly out from the wheel well.
• Use a pry bar 18" gently if you need extra clearance.

Step 9: If using quick-struts, swap is simple

• If you bought front complete strut assemblies (quick-struts), you can install them as-is.
• This avoids using a spring compressor (external, heavy-duty) (specialty).

Step 10: If reusing springs, compress the spring (only if required)

• Install the spring compressor (external, heavy-duty) (specialty) on opposite sides of the spring and compress evenly.
• Remove the center nut using a strut nut pass-through socket set (specialty).
• Transfer the mount/bearing/boot parts to the new strut.
• If unsure, choose quick-struts instead.

Step 11: Install the strut assembly

• Position the strut into the strut tower and hand-thread the upper nuts using a 13mm socket.
• Align the lower strut with the knuckle and insert the bolts.

Step 12: Torque fasteners (final tightening)

• Torque the upper mount nuts using a torque wrench 3/8" (10-110 ft-lbs): Torque to 34 Nm (25 ft-lbs).
• Torque the strut-to-knuckle bolts using a torque wrench 1/2" (50-250 ft-lbs): Torque to 190 Nm (140 ft-lbs).
• Torque the sway bar end link nut using a torque wrench 1/2" (50-250 ft-lbs): Torque to 102 Nm (75 ft-lbs).
• Reinstall bracket bolts using a 10mm socket: Torque to 9 Nm (80 in-lbs).

Step 13: Reinstall wheels and lower the vehicle

• Install wheels and hand-thread lug nuts.
• Lower the vehicle using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench 1/2" (50-250 ft-lbs): Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• Test drive slowly and listen for clunks over small bumps.
• Recheck all visible fasteners after a short drive.
• Get a 4-wheel alignment as soon as possible to prevent tire wear.
• If the steering wheel is off-center after the repair, do not ignore it—alignment is needed.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $300-$900 (parts only)

You Save: $600-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
