🔧 Juke - Strut Replacement

On your Juke, the front suspension uses MacPherson struts (the strut is the shock + spring assembly). Replacing worn/leaking struts restores ride control, braking stability, and tire contact. Plan on getting an alignment afterward.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (both front struts)

Assumption: Torque values below match typical 2016 Juke specs; verify if anything differs.

---

⚠️ Safety & Precautions

• Coil springs store a lot of energy—use a spring compressor (a tool that safely squeezes the spring) or buy complete pre-assembled struts to avoid compressing springs.
• Always support the vehicle with jack stands on solid ground; never rely on a floor jack alone.
• Keep the steering knuckle supported so the axle/inner CV joint isn’t over-stretched when the strut is out.
• If you remove any ABS/brake line clips, re-secure them exactly to prevent rubbing and brake line damage.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 1/2" (20–200 ft-lbs range)
• Torque wrench 3/8" (10–80 ft-lbs range)
• Socket set 3/8" & 1/2" drive (10mm–22mm)
• Wrench set (10mm–22mm)
• Ratchet 3/8"
• Ratchet 1/2"
• Extensions (3" and 6")
• Allen key set (5mm–8mm)
• Trim clip tool
• Pry bar (18" minimum)
• Hammer (2 lb)
• Punch set
• Penetrating oil
• Paint marker
• Spring compressor (specialty)
• Pass-through strut nut socket set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front strut assemblies - Replace in pairs (Left + Right) - Qty: 2
• Front strut mount/bearing kit - Replace in pairs - Qty: 2
• Front bump stop and dust boot kit - Replace in pairs - Qty: 2
• Front strut-to-knuckle hardware kit - Qty: 1
• Front sway bar end links - Replace in pairs (recommended if worn) - Qty: 2

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Crack the front wheel lug nuts loose using a breaker bar and correct-size socket before lifting.
• Spray penetrating oil on the strut-to-knuckle bolts and sway link nuts and let it soak while you set up.
• If you’re not using complete pre-assembled struts, set your spring compressor and pass-through strut nut sockets nearby.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front end

• Use a floor jack to lift the front of your Juke at the proper front jack point.
• Set it down securely on jack stands.
• Remove both front wheels using a socket and ratchet.

Step 2: Unclip brake hose and ABS wire from the strut

• Use a 10mm socket and ratchet to remove the brake hose bracket bolt(s) from the strut.
• Use a trim clip tool to release ABS wire clips from the strut body.
• Don’t let the caliper/lines hang or twist.

Step 3: Disconnect the sway bar end link from the strut

• Use a wrench and socket to remove the end link nut at the strut bracket.
• If the stud spins, hold it with the correct Allen key while turning the nut with a wrench.
• Torque to 65 Nm (48 ft-lbs) on reassembly.

Step 4: Mark alignment reference (important)

• Use a paint marker to mark the relationship of the strut-to-knuckle area before loosening bolts.
• This helps you get close enough to drive to an alignment shop.

Step 5: Remove strut-to-knuckle bolts

• Support the steering knuckle with a floor jack (light support only).
• Use a breaker bar with the correct-size socket to remove the two large strut-to-knuckle nuts/bolts.
• If the bolts are stuck, use a hammer and punch to drive them out carefully.
• Torque to 125 Nm (92 ft-lbs) on reassembly.

Step 6: Remove the upper strut mount nuts

• Open the hood.
• Use a socket and ratchet to remove the upper strut mount nuts (leave one nut threaded a few turns until you’re ready to catch the strut).
• Support the strut from below with one hand, then remove the last nut and lower the strut out.
• Torque to 44 Nm (32 ft-lbs) on reassembly.

Step 7: If reusing the spring, transfer parts to the new strut

• Install a spring compressor (specialty) on the coil spring and tighten both sides evenly with a ratchet until the spring is loose in the upper seat.
• Remove the center strut shaft nut using a pass-through strut nut socket set (specialty).
• Move the spring, upper mount/bearing, boot, and bump stop to the new strut in the same order.
• Install the center nut and torque to 60 Nm (44 ft-lbs), then slowly release the spring compressor evenly.
• Keep hands out of the spring’s path.

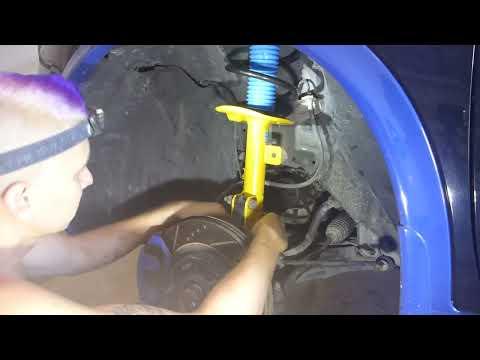

Step 8: Install the strut assembly

• Position the strut up into the strut tower and hand-start the upper mount nuts using a socket.
• Align the lower strut with the steering knuckle and slide the bolts in.
• Install the nuts and tighten using a socket and breaker bar.
• Torque to 125 Nm (92 ft-lbs) for strut-to-knuckle fasteners.
• Torque to 44 Nm (32 ft-lbs) for upper mount nuts.

Step 9: Reattach sway link, brake hose bracket, and ABS clips

• Reconnect the sway bar end link using a wrench and socket.
• Torque to 65 Nm (48 ft-lbs).
• Reinstall the brake hose bracket with a 10mm socket and ratchet.
• Torque to 10 Nm (7 ft-lbs).
• Re-clip the ABS wire using the original clips and a trim clip tool.

Step 10: Reinstall wheels and lower the vehicle

• Install the wheels and snug the lug nuts using a socket and ratchet.
• Lower the vehicle off the jack stands using the floor jack.
• Final-tighten lug nuts with a torque wrench: 113 Nm (83 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock and confirm nothing rubs or pulls tight (brake hose/ABS wire).
• Test drive at low speed first; listen for clunks over small bumps.
• Get a 4-wheel alignment as soon as possible after front strut replacement.
• Recheck lug nut torque with a torque wrench after 25–50 miles.

---
