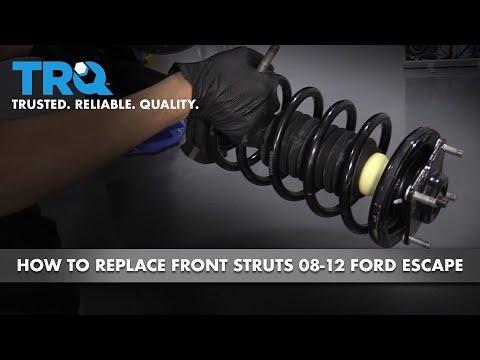

🔧 Escape - Front Strut Replacement

On your Escape, the front suspension uses MacPherson struts (the strut is the shock and spring assembly that also helps locate the wheel). Replacing worn struts restores ride control, braking stability, and reduces tire wear.

Difficulty Level: Intermediate | Estimated Time: 3-6 hours (both fronts)

---

⚠️ Safety & Precautions

• ⚠️ Support the SUV on jack stands; never rely on a jack.
• ⚠️ If you are not installing a complete “quick-strut,” the coil spring must be compressed. A coil spring compressor stores extreme energy and can cause serious injury if it slips.
• ⚠️ Keep the ABS wire and brake hose un-stretched and un-twisted.
• ⚠️ Plan on getting a front-end alignment after strut replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8"
• Torque wrench 1/2"
• Socket set 3/8" & 1/2"
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• 21mm socket
• Combination wrench set (15mm, 18mm, 21mm)
• Hex key set
• Pry bar
• Hammer
• Penetrating oil
• Paint marker
• Coil spring compressor (specialty)
• Strut nut pass-through socket set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front strut assemblies - Replace in pairs - Qty: 2
• Front upper strut mount/bearing kit - If not included with struts - Qty: 2
• Front strut dust boot and bump stop kit - If not included - Qty: 2
• Front sway bar end links - Optional but smart if loose/rusted - Qty: 2
• Front strut-to-knuckle nuts/bolts - Recommended if heavily rusted - Qty: 2 sets

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front lug nuts with a 21mm socket before lifting.
• Spray penetrating oil on the strut-to-knuckle bolts and sway bar link nut(s); let it soak 10–15 minutes.
• Quick-struts avoid spring compressor risk.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use a floor jack to lift the front and place the SUV on jack stands under the proper lift points.
• Remove both front wheels using a 21mm socket.

Step 2: Unbolt brackets from the strut

• Remove the brake hose/ABS wire retaining bracket(s) from the strut using a 10mm socket.
• Move the hose/wire aside so it won’t be pulled tight while you work.

Step 3: Disconnect the sway bar end link from the strut

• Remove the sway bar end link nut at the strut using a 15mm socket.
• If the stud spins, hold it with the appropriate hex key while turning the nut with a 15mm wrench.
• If it’s seized, replace the end link.

Step 4: Mark the strut-to-knuckle position

• Use a paint marker to mark the strut’s position against the steering knuckle.
• This helps you reassemble close to the original alignment (you still need an alignment afterward).

Step 5: Remove the strut-to-knuckle bolts

• Support the lower control arm/knuckle lightly with the floor jack so it doesn’t drop.
• Remove the two large strut-to-knuckle nuts/bolts using an 18mm socket and breaker bar (bolt head/nut size may vary by brand of replacement hardware).
• If needed, use a hammer to tap the bolts out after the nuts are off.

Step 6: Remove the upper strut mount nuts

• Open the hood.
• At the strut tower, remove the upper mount nuts using a 13mm socket.
• Hold the strut from below with one hand as the last nut comes off so it doesn’t fall.

Step 7: Remove the strut assembly

• Pull the knuckle outward slightly and guide the strut assembly out of the wheel well.
• Use a pry bar gently if the knuckle is stuck to the strut bracket.

Step 8A: If installing complete quick-struts (recommended)

• Compare the new assembly to the old one (spring orientation, bracket positions, and top mount stud pattern).
• Place the new strut into the tower and hand-start the upper mount nuts using a 13mm socket.

Step 8B: If reusing the original spring (requires spring compressor)

• Install the coil spring compressor (specialty) on opposite sides of the spring and compress evenly until the spring is loose on the seat.
• Remove the center strut shaft nut using a strut nut pass-through socket set (specialty) and a hex key to hold the shaft.
• Transfer the spring, boot/bump stop, and mount to the new strut, then tighten the center nut.
• Slowly decompress the spring and confirm it is fully seated in the lower and upper pockets.

Step 9: Reattach the strut to the steering knuckle

• Align the strut to your paint marks and slide it onto the knuckle.
• Install the two strut-to-knuckle bolts and nuts using an 18mm socket and breaker bar, then tighten with a 1/2" torque wrench.
• Torque to 115 Nm (85 ft-lbs) for strut-to-knuckle fasteners.

Step 10: Tighten the upper mount nuts

• Tighten the upper mount nuts using a 13mm socket and a 3/8" torque wrench.
• Torque to 35 Nm (26 ft-lbs).

Step 11: Reconnect the sway bar end link

• Install the end link nut using a 15mm socket.
• Hold the stud with a hex key if it spins.
• Torque to 55 Nm (41 ft-lbs).

Step 12: Reinstall hose/wire brackets and the wheel

• Reinstall the brake hose/ABS bracket(s) using a 10mm socket.
• Torque to 10 Nm (89 in-lbs).
• Reinstall the wheel and hand-tighten lug nuts using a 21mm socket.

Step 13: Lower the SUV and torque lug nuts

• Lower the SUV from the jack stands using the floor jack.
• Torque lug nuts in a star pattern with a 1/2" torque wrench.
• Torque to 135 Nm (100 ft-lbs).

Step 14: Repeat on the other side

• Repeat the same steps for the other front strut.
• Do one side at a time to stay organized.

---

✅ After Repair

• Test drive at low speed first; listen for clunks and confirm the steering wheel returns smoothly.
• Recheck that the brake hose and ABS wire are secured and not rubbing the tire.
• Get a professional 4-wheel alignment (at minimum, front toe/camber check) as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $800-$1,500 (parts + labor)

DIY Cost: $300-$900 (parts only)

You Save: $500-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
