🔧 CX-5 - Shock/Strut Replacement

On your CX-5, the front suspension uses struts (shock + spring as an assembly), and the rear uses separate shock absorbers. The steps and tools are different, especially if you’re reusing the front springs.

Difficulty Level: Intermediate | Estimated Time: Rear: 1.5–3.0 hours (both sides) | Front: 3–6 hours (both sides)

---

⚠️ Safety & Precautions

• 🛑 Support the CX-5 on jack stands—never rely on a floor jack.
• 🛑 If doing front struts and reusing springs: a coil spring compressor is required; springs store dangerous energy.
• 🛑 Do not loosen suspension bolts with the vehicle supported only by the jack.
• 🛑 After suspension work, a 4-wheel alignment is recommended.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench or 21mm socket
• Socket set (8mm–21mm)
• Wrench set (8mm–21mm)
• Breaker bar (1/2")
• Torque wrench (10–200 Nm range)
• Penetrating oil
• Pry bar
• Flat trim tool
• Needle-nose pliers
• Paint marker
• Coil spring compressor (specialty)
• Strut spreader tool (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear shock absorbers - Replace in pairs - Qty: 2
• Front strut assemblies - Replace in pairs - Qty: 2
• Front strut mount/bearing kit - If reusing springs - Qty: 2
• Front bump stops & dust boots - If reusing springs - Qty: 2
• Rear upper/lower shock bushings/isolators - If worn - Qty: 2 sets
• Replacement self-locking suspension nuts/bolts - If required by service info or damaged - Qty: as needed

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the wheels that stay on the ground using wheel chocks.
• Loosen the wheel lug nuts 1/2 turn using a 21mm socket before lifting.
• Spray penetrating oil on the shock/strut bolts using penetrating oil and wait 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Important: I need one detail to give you correct torque specs and the exact sequence.

• Are you replacing rear shocks, front struts, or all four?
• If front: are you installing complete quick-strut assemblies (prebuilt), or reusing your springs with a spring compressor?

While you confirm, here’s the safe high-level procedure (no torque values yet):

Step 1: Lift and remove the wheels

• Use a floor jack at the proper lift point and set the vehicle on jack stands.
• Remove the wheels using a 21mm socket.

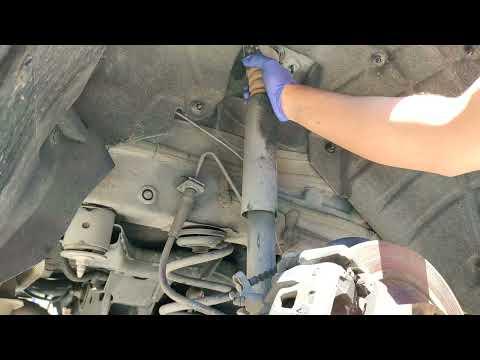

Step 2 (Rear): Remove the rear shock

• Support the rear lower control arm with the floor jack so it doesn’t drop suddenly.
• Remove the lower shock bolt using the appropriate socket and wrench.
• Remove the upper shock mounting hardware (access varies) using a socket and wrench or trim tool if interior panels must be lifted.
• Pull the shock out. Use a pry bar gently if it’s stuck.

Step 3 (Rear): Install the new rear shock

• Install the shock in the upper mount first by hand-threading the fasteners using your hand (no tools yet).
• Align the lower mount and install the lower bolt using a socket and wrench.
• Tip: Jack the control arm slightly to align holes.

Step 4 (Rear): Final tighten at ride height

• With the suspension supported close to normal ride height, tighten the shock fasteners using a torque wrench.
• This helps prevent bushing twist and squeaks.

Step 5 (Front): Remove the strut assembly

• Mark camber/reference positions (if applicable) using a paint marker.
• Detach any brake hose/ABS wire brackets from the strut using the correct socket.
• Loosen the strut-to-knuckle bolts using a breaker bar and the correct socket and wrench.
• Support the knuckle and separate it from the strut; use a strut spreader tool (specialty) if the knuckle clamps the strut.
• From the top mount, remove the mounting nuts using the correct socket, then remove the strut.

Step 6 (Front): Build/Install the strut

• If reusing springs: compress the spring using a coil spring compressor (specialty) until it’s loose in the perch. Tip: Compress evenly, side-to-side.
• Transfer mount/bearing and isolators as needed using the correct socket.
• Install the strut back into the tower, start the top nuts by hand, then attach the knuckle using the correct socket and wrench.

Step 7: Reinstall wheels and lower

• Reinstall wheels using a 21mm socket.
• Lower the CX-5 and final-tighten lug nuts with a torque wrench.

---

✅ After Repair

• Test drive slowly first. Listen for clunks over small bumps.
• Recheck all visible fasteners and brake hose/ABS wire routing.
• Get a 4-wheel alignment, especially after front strut replacement.

---

💰 DIY vs Shop Cost

Shop Cost: $600–$1,600 (parts + labor, rear vs all four)

DIY Cost: $180–$900 (parts only, rear vs all four)

You Save: $420–$700+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2–6 hours.

---
