🔧 Jetta - Shock Absorber Replacement

On your Jetta, the front “shocks” are part of the front strut assemblies (strut + spring), and the rear uses a separate rear shock next to the spring. Replacing worn shocks/struts restores ride control, braking stability, and reduces bouncing/clunking.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (rear only: 1.5-3 hours)

---

⚠️ Safety & Precautions

• ⚠️ Never work under a car supported only by a jack—use jack stands on solid ground.
• ⚠️ Front struts contain a coil spring under high tension. If you are not using complete “quick strut” assemblies, you must use a spring compressor correctly or you can get seriously hurt.
• ⚠️ Many VW suspension fasteners are one-time-use stretch bolts. Plan to replace the specified bolts/nuts.
• ⚠️ After any front strut work, you should get a 4-wheel alignment.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 Nm range)
• 3/8" drive ratchet
• 3/8" drive torque wrench (5-60 Nm range)
• Socket set (13mm, 16mm, 18mm, 21mm)
• Wrench set (16mm, 18mm, 21mm)
• Torx T25 screwdriver
• Torx T30 screwdriver
• 6mm hex bit socket
• 18mm crowfoot wrench
• Pry bar
• Dead-blow hammer
• Needle-nose pliers
• Paint marker
• Penetrating oil
• Strut spreader tool (specialty)
• Spring compressor (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front strut assemblies (quick struts) - Replace in pairs - Qty: 2
• Rear shock absorbers - Replace in pairs - Qty: 2
• Front strut mount & bearing kit - Replace in pairs - Qty: 1 kit
• Rear upper shock mount kit - Replace in pairs - Qty: 1 kit
• Front strut pinch bolt & nut (one-time-use) - Qty: 2
• Front strut top mount nuts (one-time-use) - Qty: 6
• Rear lower shock bolts (one-time-use) - Qty: 2
• Rear upper shock mount nuts (one-time-use) - Qty: 4

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels (front work) or front wheels (rear work).
• Loosen wheel bolts 1/2 turn using a 17mm socket and breaker bar before lifting.
• Spray visible suspension fasteners with penetrating oil using the straw, then wait 5–10 minutes.
• If you’re a first-timer, strongly consider front quick struts to avoid spring transfer. A “quick strut” is a complete pre-assembled strut + spring + mount.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheels

• Lift the front (or rear) using a floor jack at the correct jacking point, then support with jack stands.
• Remove the wheels using a 17mm socket and ratchet.

Step 2: Rear shock removal (one side at a time)

• Support the rear suspension arm lightly with the floor jack so it doesn’t drop when the shock is disconnected.
• In the trunk side trim, access the rear shock upper mount area (fasteners vary by trim). Remove trim fasteners using Torx T25/T30 screwdriver as needed.
• Remove the rear upper mount nuts using a 13mm socket. Torque (install): 20 Nm (15 ft-lbs)
• At the bottom of the shock, remove the lower bolt using 18mm socket and 18mm wrench. Torque (install): 180 Nm (133 ft-lbs)
• Remove the rear shock from the car. If it’s stuck, tap gently with a dead-blow hammer.

Step 3: Rear shock installation

• Transfer any hardware/mounts to the new shock if your parts are not pre-assembled. Use needle-nose pliers as needed.
• Install the shock into the upper mount first, hand-thread the upper nuts using your fingers.
• Install the lower bolt using 18mm socket and 18mm wrench, but do not fully torque yet.
• Raise the suspension arm with the floor jack until it’s close to normal ride height, then torque fasteners:
  • Upper nuts: Torque to 20 Nm (15 ft-lbs)
  • Lower bolt: Torque to 180 Nm (133 ft-lbs)
• Tip: Tighten at ride height to protect bushings.

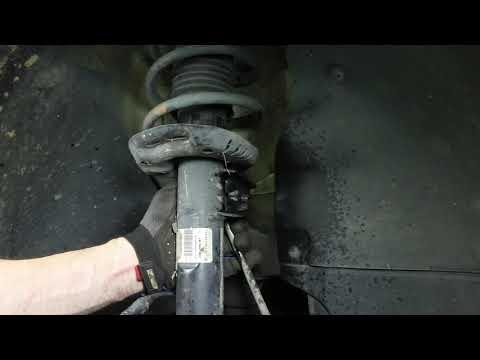

Step 4: Front strut removal (one side at a time)

• Open the hood. Locate the three strut mount nuts at the top of the strut tower.
• Remove the wiper cowl cover pieces if needed for access using a Torx T25 screwdriver.
• Do NOT remove the center strut shaft nut yet (it holds the spring). Only loosen/remove the three mount nuts using a 13mm socket. Torque (install): 15 Nm (11 ft-lbs)
• At the wheel well, unclip/remove the ABS wire/brake hose brackets from the strut using needle-nose pliers and a Torx T30 screwdriver if equipped.
• Remove the sway bar end link nut from the strut using a 18mm socket and hold the stud with a 6mm hex bit socket. Torque (install): 65 Nm (48 ft-lbs)
• Remove the strut pinch bolt/nut at the steering knuckle using a 18mm socket and 18mm wrench. Torque (install): 70 Nm (52 ft-lbs) + 90°
• Insert the strut spreader tool (specialty) into the knuckle slot and rotate to slightly open the clamp. (A strut spreader tool is a small wedge tool that safely spreads the knuckle clamp.)
• Support the knuckle with a floor jack and carefully slide the strut out of the knuckle. Use a pry bar only gently if needed.
• With the strut free at the bottom, remove the three top mount nuts fully using a 13mm socket, then remove the strut assembly.

Step 5: Front strut assembly option A (recommended): Install quick struts

• Compare the new quick strut to the old one (spring orientation, mount shape). Mark orientation with a paint marker.
• Install the quick strut up into the strut tower and hand-thread the three mount nuts using your fingers.
• Slide the strut into the knuckle. Use the strut spreader tool (specialty) to help it seat fully.
• Install a NEW pinch bolt/nut using a 18mm socket and 18mm wrench. Torque to 70 Nm (52 ft-lbs) + 90°
• Reconnect the sway bar end link using a 18mm socket and 6mm hex bit socket. Torque to 65 Nm (48 ft-lbs)
• Reattach hose/wire brackets using a Torx T30 screwdriver.
• Torque the three top mount nuts using a 13mm socket and 3/8" torque wrench. Torque to 15 Nm (11 ft-lbs)

Step 6: Front strut assembly option B: Reuse your spring (only if experienced)

• Install the spring compressor (specialty) on opposite sides of the spring, and compress evenly until the spring is loose in the seats.
• Remove the strut shaft nut using a 21mm socket with an 18mm crowfoot wrench / hex hold as required by your strut design. Torque (install): 60 Nm (44 ft-lbs)
• Transfer spring, dust boot, bump stop, mount, and bearing to the new strut in the same order/orientation.
• Slowly release the spring compressor, ensuring the spring ends sit correctly in the spring seats.
• Install the assembled strut following Step 5.

Step 7: Reinstall wheels

• Reinstall wheels and hand-thread wheel bolts.
• Lower the car, then torque wheel bolts using a 17mm socket and 1/2" torque wrench. Torque to 120 Nm (89 ft-lbs)

---

✅ After Repair

• Road test at low speed first. Listen for clunks and confirm the steering wheel returns smoothly.
• Recheck for any twisted brake hose/ABS wire and confirm all brackets are secured.
• If you replaced front struts, schedule a 4-wheel alignment as soon as possible.
• After 50–100 miles, recheck wheel bolt torque using a 17mm socket and torque wrench. Tip: This catches settling.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor, alignment often extra)

DIY Cost: $350-$950 (parts only, depends on quick struts and mounts)

You Save: $550-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
