🔧 IS - Shock Absorber Replacement

On your IS, the front shocks are built into the front strut assemblies, and the rear uses a separate shock and spring. Replacing worn shocks/struts restores ride control, reduces bouncing, and helps tire wear.

Difficulty Level: Intermediate | Estimated Time: 3-6 hours

Assumption: OEM-style suspension; verify torque specs with Lexus service data.

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a floor jack.
• ⚠️ If you disassemble a front strut, a spring compressor is required; the spring is under high force and can cause serious injury.
• ⚠️ Keep hands/face out of the spring’s path while compressing.
• ⚠️ Use wheel chocks and work on level ground.
• ⚠️ No battery disconnect is typically required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 1/2" (20-250 Nm range)
• Torque wrench 3/8" (10-80 Nm range)
• Socket set 3/8" drive (10mm-19mm)
• Socket set 1/2" drive (14mm-22mm)
• Wrench set (10mm-22mm)
• Allen key set (5mm-8mm)
• Pry bar (18")
• Needle-nose pliers
• Trim clip tool
• Paint marker
• Penetrating oil
• Spring compressor (specialty)
• Pass-through strut nut socket set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front complete strut assemblies - Replace in pairs - Qty: 2
• Rear shock absorbers - Replace in pairs - Qty: 2
• Front strut mount kit - Replace in pairs - Qty: 2
• Front bump stops and dust boots - Replace in pairs - Qty: 2
• Rear shock upper mounts - Replace in pairs - Qty: 2
• Rear bump stops and dust boots - Replace in pairs - Qty: 2
• New self-locking suspension nuts/bolts - As needed - Qty: 1 set
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels (front work) or front wheels (rear work).
• Use a breaker bar 1/2" with the correct socket to loosen lug nuts 1/2 turn before lifting.
• Spray visible suspension fasteners with penetrating oil and wait 5-10 minutes.
• If you are not installing complete front strut assemblies, prepare the spring compressor (specialty) (a tool that safely squeezes the coil spring shorter so it can be removed).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Place jack stands (rated 3-ton minimum) under solid support points and lower onto stands.
• Remove the front wheels using a 21mm socket (common lug size) and breaker bar 1/2".
• When reinstalling wheels later: Torque to 103 Nm (76 ft-lbs).

Step 2: Disconnect brackets and links from the front strut

• Use a 10mm socket to remove any brake hose/ABS wire brackets attached to the strut body.
• If the sway bar end link attaches to the strut, use a 17mm wrench on the nut and hold the stud with an Allen key if it spins.
• Tip: Mark bracket positions with a paint marker.

Step 3: Remove the front strut-to-knuckle bolts

• Support the steering knuckle lightly with the floor jack so it doesn’t drop and stress the axle.
• Use a 19mm-22mm socket and breaker bar 1/2" to remove the two large bolts/nuts clamping the strut to the knuckle.
• Tap bolts out carefully if needed using a pry bar (18") for alignment and a steady hand.
• Typical reassembly spec: Torque to 170-200 Nm (125-148 ft-lbs).

Step 4: Remove the front strut top nuts and remove the strut

• Open the hood.
• Use a 14mm socket to remove the strut mount nuts at the strut tower (usually 3 nuts).
• Hold the strut as you remove the last nut, then guide the strut out of the wheel well.
• Typical reassembly spec: Torque to 35-50 Nm (26-37 ft-lbs).

Step 5: If reusing the spring, transfer parts to the new front strut

• Install a spring compressor (specialty) onto the coil spring (opposite sides) and tighten evenly until the spring is loose in the mount.
• Remove the center shaft nut using a pass-through strut nut socket set (specialty) while holding the shaft with an Allen key if required.
• Move the mount, bearing, dust boot, and bump stop onto the new strut in the same order.
• Typical center nut spec: Torque to 55-75 Nm (41-55 ft-lbs).
• Slowly release the spring compressor evenly until the spring seats fully.

Step 6: Reinstall the front strut assembly

• Position the strut into the strut tower and hand-start the top nuts using a 14mm socket.
• Align the strut to the knuckle and install the lower bolts using a 19mm-22mm socket.
• Reconnect sway bar end link using a 17mm wrench and Allen key if needed.
• Reinstall hose/ABS brackets using a 10mm socket.
• Tighten fasteners with a torque wrench 1/2" and torque wrench 3/8" to the specs listed above.

Step 7: Lift and secure the rear of the car

• Chock the front wheels with wheel chocks.
• Use the floor jack to lift the rear and support with jack stands.
• Remove rear wheels using a 21mm socket and breaker bar 1/2".
• When reinstalling wheels later: Torque to 103 Nm (76 ft-lbs).

Step 8: Access the rear shock upper mount

• In the trunk, remove trim panels as needed using a trim clip tool and needle-nose pliers.
• Locate the rear shock upper nuts.
• Loosen (do not fully remove yet) the upper nuts using a 14mm socket.
• Typical reassembly spec: Torque to 25-40 Nm (18-30 ft-lbs).

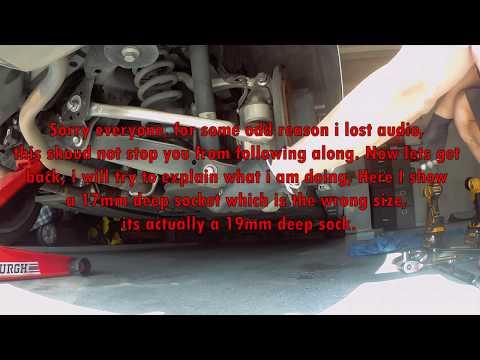

Step 9: Remove the rear shock lower bolt and remove the shock

• Support the rear lower control arm slightly with the floor jack.
• Remove the lower shock bolt using a 17mm-19mm socket and breaker bar 1/2".
• Now remove the upper nuts fully with a 14mm socket, then pull the shock out.
• Typical reassembly spec for lower bolt: Torque to 70-100 Nm (52-74 ft-lbs).

Step 10: Install the new rear shock

• Transfer or install new dust boot/bump stop and upper mount onto the new shock.
• Guide the shock into place and hand-start the upper nuts using a 14mm socket.
• Align the lower mount and install the lower bolt using a 17mm-19mm socket.
• Torque upper and lower fasteners using a torque wrench to the specs listed above.

Step 11: Reinstall wheels and lower the car

• Install wheels and hand-thread lug nuts.
• Lower the car off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench 1/2": Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Take a short, slow test drive and listen for clunks over small bumps.
• Re-check that brake hose/ABS wires are clipped correctly and not stretched at full steering lock.
• Get a 4-wheel alignment soon after replacing front struts to prevent tire wear.
• After 50-100 km, re-check lug nut torque with a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor)

DIY Cost: ₹10,000-₹30,000 (parts only)

You Save: ₹8,000-₹15,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 3-5 hours.

---
