🔧 RAV4 - Shock Absorber/Strut Replacement

On your RAV4, the rear uses traditional shock absorbers, while the front uses struts (a strut is a shock with a built-in spring mount). Replacing worn shocks/struts restores ride control, braking stability, and tire wear.

Difficulty Level: Intermediate | Estimated Time: Rear: 1-2 hours (both sides) | Front: 3-5 hours (both sides)

---

⚠️ Safety & Precautions

• ⚠️ Support the RAV4 on jack stands; never rely on a floor jack.
• ⚠️ If doing front struts: the coil spring is under high tension. Use a quality coil spring compressor or install complete quick-strut assemblies to avoid spring transfer.
• ⚠️ Keep hands clear of pinch points when lowering/raising the suspension.
• ⚠️ No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket 21mm
• Breaker bar 1/2"
• Torque wrench 3/8" (10–80 ft-lbs range)
• Torque wrench 1/2" (50–200 ft-lbs range)
• Socket set metric 10mm–22mm
• Wrench set metric 10mm–22mm
• Allen key set metric (for sway link holding)
• Pry bar 18"
• Rubber mallet
• Needle-nose pliers
• Penetrating oil
• Paint marker
• Safety glasses
• Mechanic gloves
• Coil spring compressor (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear shock absorber - Replace in pairs - Qty: 2
• Rear upper shock mount bushings/hardware kit - Replace if worn - Qty: 1
• Front complete strut assemblies (quick-struts) - Replace in pairs - Qty: 2
• Front sway bar end links - Optional if loose/seized - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the tires staying on the ground.
• Crack the lug nuts loose using a 21mm lug nut socket and breaker bar before lifting.
• Spray the shock/strut bolts with penetrating oil and let it soak 5–10 minutes.
• If installing quick-struts, you won’t need to compress springs. Best choice for first-timers.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use a floor jack to lift one end of the RAV4 at a time.
• Set the vehicle securely on jack stands.
• Remove the lug nuts with a 21mm socket and take the wheel off.

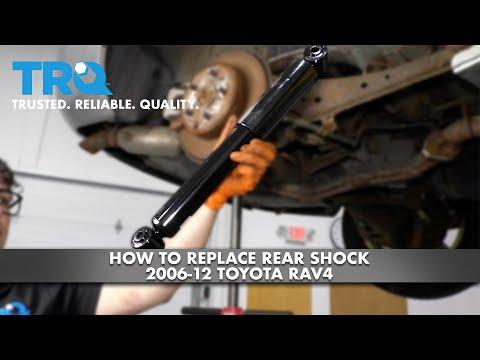

Step 2: Rear shocks (this is the “shock absorber” job)

• Support the rear suspension arm with the floor jack so it doesn’t drop when the shock is removed.
• Remove the lower shock bolt using the appropriate socket and wrench.
• Access the upper shock nut(s) (typically inside the rear side trim area) and remove using a socket and wrench.
• Remove the shock. If it’s stuck, use a pry bar gently.
• Install the new shock in place.
• Install and tighten fasteners:
  • Lower shock bolt: Torque to 100 Nm (74 ft-lbs)
  • Upper shock nut: Torque to 19 Nm (14 ft-lbs)
• Repeat on the other rear side. Always replace shocks in pairs.

Step 3: Front struts (if you meant “front shocks”)

• Under the hood, locate the strut tower and loosen (do not remove yet) the strut mount nuts using a socket.
• At the steering knuckle, disconnect the sway bar end link from the strut using a wrench and an Allen key (the Allen holds the stud from spinning).
• Unclip any brake hose/ABS wire brackets from the strut using needle-nose pliers or the correct socket.
• Remove the two large strut-to-knuckle bolts using a breaker bar and the correct socket and wrench.
• Support the strut, then remove the top mount nuts using a socket and lift the strut out.
• Install the new complete strut assembly (quick-strut) into the tower, start the top nuts by hand, then align the knuckle and install the lower bolts.
• Tighten to spec:
  • Strut mount nuts: Torque to 47 Nm (35 ft-lbs)
  • Strut-to-knuckle bolts: Torque to 177 Nm (131 ft-lbs)
  • Sway bar end link nut: Torque to 74 Nm (55 ft-lbs)
• Repeat on the other front side.

Step 4: Reinstall wheels

• Reinstall the wheel and hand-thread lug nuts.
• Lower the RAV4 off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Test drive at low speed first. Listen for clunks and confirm straight braking.
• Check that brake hoses/ABS wires are clipped back into their brackets.
• If you replaced front struts, get a 4-wheel alignment as soon as possible (strut removal affects alignment).
• Recheck lug nut torque after 25–50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: Rear shocks $400-$900 | Front struts $900-$1,800 (parts + labor)

DIY Cost: Rear shocks $120-$350 | Front quick-struts $300-$800 (parts only)

You Save: $280-$1,000+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-5 hours depending on rear vs front.

---
