🔧 Tahoe - Shock Absorber Replacement (Front & Rear)

Replacing worn shocks restores ride control, reduces bouncing, and improves braking stability. On your Tahoe, the front and rear shocks are bolt-on parts, but you must safely support the suspension so it doesn’t drop suddenly.

Difficulty Level: Intermediate | Estimated Time: 2-5 hours

---

⚠️ Safety & Precautions

• 🛑 Never work under a vehicle supported only by a jack—use jack stands on the frame.
• 🧤 Wear safety glasses and mechanic gloves; rust and debris will fall when bolts break loose.
• 🔥 Let the exhaust cool before working near the rear shocks.
• 🧱 Chock the wheels that stay on the ground so the Tahoe can’t roll.
• ⚙️ Support the axle/control arm with a jack before removing shocks so the suspension doesn’t “drop” unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench 22mm
• Socket set 13mm
• Socket set 15mm
• Socket set 18mm
• Combination wrench 15mm
• Combination wrench 18mm
• Breaker bar 1/2"
• Torque wrench 1/2"
• Pry bar 18"
• Penetrating oil
• Wire brush
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front shock absorbers - Replace in pairs - Qty: 2
• Rear shock absorbers - Replace in pairs - Qty: 2
• Shock mounting hardware kit - Optional but recommended - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Use wheel chocks on the opposite end you’re lifting.
• Spray penetrating oil on all shock bolts/nuts 10–15 minutes before removal.
• Breaker bar = long handle for stubborn bolts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the Tahoe

• Use a floor jack (rated 3-ton minimum) to lift the end you’re working on.
• Set the frame down onto jack stands (rated 3-ton minimum).
• Remove the wheels using a lug wrench 22mm.

Step 2: Replace the rear shocks (recommended to start here)

• Place the floor jack (rated 3-ton minimum) lightly under the rear axle to support it.
• Clean exposed threads with a wire brush, then re-apply penetrating oil.
• Remove the lower shock bolt using an 18mm socket and breaker bar 1/2" (hold the nut with an 18mm combination wrench if needed).
• Remove the upper shock nut/bolt using a 15mm socket and 15mm combination wrench.
• Work the shock out; use a pry bar 18" if it’s stuck in the mount.
• Install the new rear shock in the same orientation, starting the upper mount first by hand.
• Install the lower bolt by hand, then snug both fasteners.
• Final tighten with a torque wrench 1/2":
  • Rear upper shock fastener: Torque to 30 Nm (22 ft-lbs)
  • Rear lower shock bolt: Torque to 100 Nm (74 ft-lbs)

Step 3: Replace the front shocks

• Move to the front and support the lower control arm lightly with the floor jack (rated 3-ton minimum).
• Locate the lower shock mount at the lower control arm and the upper mount near the top of the shock.
• Remove the lower shock bolt using an 18mm socket and breaker bar 1/2" (hold the nut with an 18mm combination wrench if needed).
• Remove the upper shock mount fasteners using a 15mm socket.
• Remove the shock assembly from the wheel well; use a pry bar 18" if needed.
• Install the new front shock, start the upper fasteners by hand, then align and install the lower bolt by hand.
• Final tighten with a torque wrench 1/2":
  • Front upper shock fasteners: Torque to 30 Nm (22 ft-lbs)
  • Front lower shock bolt: Torque to 140 Nm (103 ft-lbs)

Step 4: Reinstall wheels and lower the Tahoe

• Reinstall wheels using a lug wrench 22mm.
• Lower off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

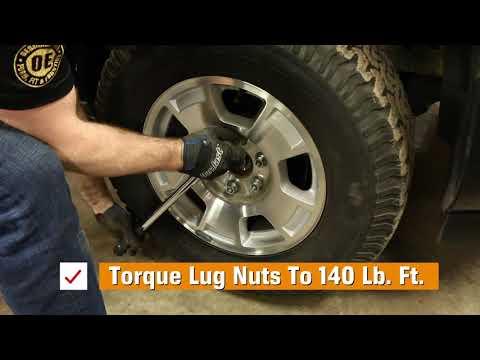

• Tighten lug nuts in a star pattern with a torque wrench 1/2": Torque to 190 Nm (140 ft-lbs)

---

✅ After Repair

• Take a short test drive on a smooth road, then a bumpy road. Listen for clunks and re-check fasteners if you hear any.
• Check for any shock bushing “walk” (rubber pushed out) and correct seating.
• If the front end feels loose or you replaced other front suspension parts recently, schedule an alignment.
• Re-check lug torque after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,300 (parts + labor)

DIY Cost: $180-$600 (parts only)

You Save: $470-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
