🔧 Shock Absorbers - Replacement

Replacing worn shocks on your E-150 restores ride control, reduces bouncing, and helps keep tires planted during braking. The job is straightforward, but the bolts can be very tight and rusty on an older van.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the van with jack stands under the frame; never rely on a jack.
• 🛑 Chock the wheels and keep the transmission in PARK.
• 🛑 Let the exhaust and suspension cool before working near them.
• 🛑 Expect rust: wear safety glasses and mechanic gloves.
• 🛑 Don’t remove any spring hardware; you are only swapping the shocks.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• 1/2" drive ratchet
• 1/2" drive torque wrench (20-150 ft-lbs range)
• Socket set (13mm-21mm, 1/2" drive)
• Wrench set (13mm-21mm)
• Locking pliers
• Flat-blade screwdriver
• Penetrating oil
• Wire brush
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front shock absorbers - Replace in pairs - Qty: 2
• Rear shock absorbers - Replace in pairs - Qty: 2
• Shock mounting hardware kit - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the tires staying on the ground.
• Spray all shock mounting nuts/bolts with penetrating oil and let it soak 10-15 minutes.
• Use a wire brush to clean exposed threads so nuts come off easier.
• Tip: Do one side at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

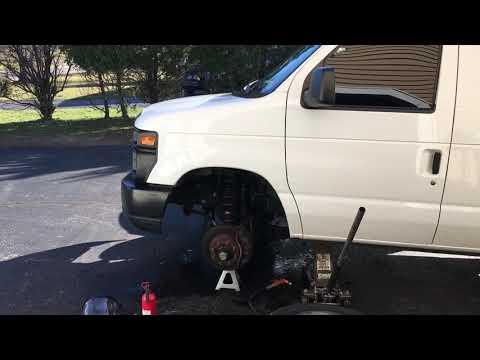

Step 1: Lift and support the van

• Use a floor jack (rated 3-ton minimum) to lift one end of the van at a time.
• Place jack stands (rated 3-ton minimum) under the frame rails and lower the van onto the stands.
• Keep wheel chocks in place.

Step 2: Remove the wheel (recommended for access)

• Use a 1/2" drive breaker bar and socket set (13mm-21mm, 1/2" drive) to loosen and remove the lug nuts.
• Remove the wheel and set it aside.

Step 3: Remove the old front shock (repeat for the other front side)

• Locate the front shock running between the lower control arm/axle beam area and the upper mount.
• Clean the fasteners with a wire brush and apply penetrating oil again.
• At the lower mount, use a socket set (13mm-21mm, 1/2" drive) and a wrench set (13mm-21mm) to remove the lower bolt/nut.
• At the upper mount (stud style), hold the shock rod with locking pliers only if it spins, then use a wrench set (13mm-21mm) to remove the upper nut and bushings.
• Remove the shock from the van.
• Tip: Don’t crush the rod with pliers.

Step 4: Install the new front shock

• Compare the old and new shock length/mounts before installing.
• Install the upper bushings and nut by hand first, using a flat-blade screwdriver only to help align parts if needed.
• Install the lower bolt, using a 1/2" drive ratchet and socket set (13mm-21mm, 1/2" drive).
• Use a 1/2" drive torque wrench (20-150 ft-lbs range) to tighten fasteners:
  • Front lower shock bolt: Torque to 90 Nm (66 ft-lbs)
  • Front upper shock nut (stud): Torque to 23 Nm (17 ft-lbs)
• Apply a thin film of anti-seize compound to bolt threads (avoid rubber bushings).

Step 5: Remove the old rear shock (repeat for the other rear side)

• Support the rear axle lightly with the floor jack (rated 3-ton minimum) so it doesn’t drop when the shock is removed.
• Clean the rear upper and lower shock fasteners with a wire brush, then apply penetrating oil.
• Remove the lower shock bolt using a socket set (13mm-21mm, 1/2" drive) and wrench set (13mm-21mm).
• Remove the upper mount:
  • If it’s a stud with bushings, remove the nut using a wrench set (13mm-21mm).
  • If it’s a bolt-through “eye” mount, remove the bolt using a socket set (13mm-21mm, 1/2" drive).
• Remove the shock.

Step 6: Install the new rear shock

• Start the upper mount by hand, then start the lower bolt by hand.
• Use a 1/2" drive ratchet and socket set (13mm-21mm, 1/2" drive) to snug everything.
• Use a 1/2" drive torque wrench (20-150 ft-lbs range) to tighten fasteners:
  • Rear lower shock bolt: Torque to 90 Nm (66 ft-lbs)
  • Rear upper shock nut (stud): Torque to 47 Nm (35 ft-lbs)
• Apply a thin film of anti-seize compound to bolt threads (avoid rubber bushings).

Step 7: Reinstall wheels and lower the van

• Reinstall the wheel and hand-thread the lug nuts.
• Use a 1/2" drive ratchet and socket set (13mm-21mm, 1/2" drive) to snug the lug nuts in a star pattern.
• Use the floor jack (rated 3-ton minimum) to lift slightly, remove the jack stands (rated 3-ton minimum), and lower the van.
• Use a 1/2" drive torque wrench (20-150 ft-lbs range) to torque lug nuts: Torque to 224 Nm (165 ft-lbs).

---

✅ After Repair

• Take a slow test drive and listen for clunks over small bumps.
• Re-check that all shock nuts/bolts look fully seated and bushings are centered.
• If the steering feels unstable or the van pulls, schedule an alignment check (especially if front parts were disturbed).
• Tip: Re-torque lug nuts after 25-50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $140-$450 (parts only)

You Save: $310-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
