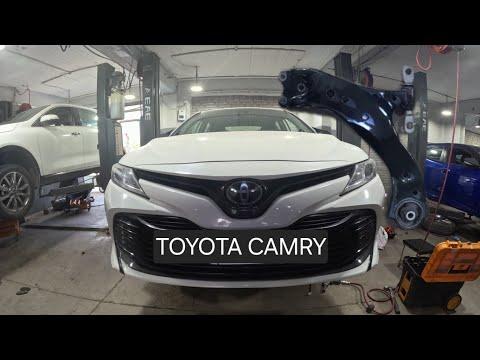

🔧 Camry - Front Lower Control Arm Replacement

Assumption: This covers the front lower control arms on both sides.

The front lower control arm connects the wheel hub to the subframe and controls suspension movement. If the bushings are cracked, the ball joint is loose, or the arm is bent, replacement is the fix. On your Camry Hybrid, this is a job that should be done carefully because suspension alignment will be affected.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Work on a level surface and support the car with jack stands. Never rely on a jack alone.
• Use wheel chocks on the rear wheels before lifting the front.
• Your Camry Hybrid does not require high-voltage battery service for this repair, but keep the ignition off and the key away from the vehicle.
• If the steering knuckle is separated from the control arm, do not let the axle or brake hose hang by itself.
• Do not remove both control arms at the same time unless the front suspension is fully supported.
• An alignment is required after this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 19mm socket
• 18mm socket
• 17mm socket
• 21mm wrench
• 19mm wrench
• Torque wrench
• Breaker bar
• Penetrating oil
• Ball joint separator tool (specialty)
• Pry bar
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm - Left - Qty: 1
• Front lower control arm - Right - Qty: 1
• Front lower control arm mounting hardware - Qty: 2 sets

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the car.
• If the vehicle has been driven, let the brakes and suspension cool down first.
• Support the lower control arm or steering knuckle before removing fasteners so the suspension does not drop suddenly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to raise the front of the car at the proper lift point.
• Place jack stands under the front support points and lower the car onto them.
• Remove the front wheels with a 21mm socket.

Step 2: Spray and mark the hardware

• Use penetrating oil on the control arm bolts and ball joint nut.
• Use a paint marker to mark the position of the rear cam bolt if equipped.
• Keep the old alignment marks visible.

Step 3: Separate the lower ball joint from the steering knuckle

• Use a 19mm socket and 19mm wrench to remove the ball joint nut.
• Use a ball joint separator tool to release the tapered stud from the knuckle.
• Do not hammer directly on the threaded stud.

Step 4: Remove the front control arm bolts

• Use a 17mm socket and 18mm socket to remove the front and rear control arm mounting bolts.
• Support the arm with one hand while removing the last bolt.
• If the bolt is tight, use a breaker bar for extra leverage.
• Torque to factory specification during installation.

Step 5: Remove the control arm

• Lower and work the arm out of the subframe and knuckle area.
• Use a pry bar if needed, but do not damage the bushings or boot on nearby parts.

Step 6: Install the new control arm

• Position the new control arm into place by hand.
• Start all bolts by hand first to avoid cross-threading.
• Use the 17mm socket and 18mm socket to snug the mounting bolts, but do not fully tighten yet.
• Insert the ball joint stud into the knuckle and install the nut with a 19mm socket.
• Torque to factory specification after the suspension is at ride height.

Step 7: Set ride height before final tightening

• Raise the suspension arm with a floor jack until the control arm is close to normal ride height.
• Final-tighten the control arm pivot bolts in this position to help prevent bushing twist.
• Torque to factory specification.
• Final torque at ride height protects the bushings.

Step 8: Reinstall the wheels and lower the car

• Reinstall the wheels and tighten the lug nuts with a 21mm socket.
• Lower the car with the floor jack and remove the jack stands.
• Torque the lug nuts to factory specification in a star pattern.

---

✅ After Repair

• Start the car and turn the steering wheel lock-to-lock while parked to check for unusual noises.
• Test drive slowly first and listen for clunks, pops, or pulling.
• Schedule a professional wheel alignment as soon as possible.
• Recheck the control arm fasteners after the first drive if any hardware was reused.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,200 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $420-$780 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
