🔧 Escape - Front Lower Control Arm Replacement

This repair replaces the front lower control arms on your Escape. The lower control arm is the metal suspension link that holds the bottom of the wheel assembly in place and contains rubber bushings plus a ball joint.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never work under your Escape while it is supported only by a jack. Use jack stands every time.
• ⚠️ Wear safety glasses and gloves. Rust, dirt, and suspension parts can move suddenly.
• ⚠️ Do not hammer directly on the ball joint threads. Use a ball joint separator.
• ⚠️ Final-tighten the control arm bushing bolts with the suspension loaded at normal ride height. This prevents twisting and early bushing failure.
• ⚠️ A wheel alignment is required after replacing control arms.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 19mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 3/8-inch drive ratchet
• 15mm socket
• 18mm socket
• 21mm socket
• 15mm wrench
• 18mm wrench
• 21mm wrench
• Torque wrench (10-150 ft-lbs)
• Ball joint separator (specialty)
• Pry bar 18-inch
• Rubber mallet
• Paint marker
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm - Left: 1
• Front lower control arm - Right: 1
• Lower ball joint pinch bolt and nut - Qty: 2
• Front control arm mounting bolts - Qty: 4
• Rear control arm mounting bolts - Qty: 2
• Wheel alignment - Qty: 1

Note: Replace control arms in pairs when possible so the front suspension stays balanced.

---

📋 Before You Begin

• Park your Escape on a flat, solid surface.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Spray penetrating oil on the control arm bolts and ball joint pinch bolts 10-15 minutes before removal.
• A ball joint separator is a tool that safely pops the ball joint loose from the steering knuckle.
• A torque wrench is a tool that tightens bolts to the correct measured tightness.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 19mm lug nut socket and 1/2-inch drive breaker bar to loosen each front wheel lug nut about half a turn.
• Do not remove the lug nuts yet.
• Loosen them before lifting.

Step 2: Raise and Support the Front

• Use a floor jack to lift the front of your Escape at the front subframe lift area.
• Place jack stands under the approved front support points.
• Slowly lower your Escape onto the jack stands.
• Leave the floor jack nearby. You will use it later to support the suspension.

Step 3: Remove the Front Wheels

• Use a 19mm lug nut socket and 1/2-inch drive ratchet to remove the loosened lug nuts.
• Remove both front wheels and place them flat on the ground.

Step 4: Mark the Control Arm Bolt Positions

• Use a paint marker to mark the current positions of the control arm bolts and washers.
• This helps keep the alignment close enough for a careful drive to the alignment shop.
• Marks do not replace alignment.

Step 5: Clean and Soak the Hardware

• Use a wire brush to clean dirt and rust from the lower ball joint pinch bolt and control arm mounting bolts.
• Apply penetrating oil to the same bolts.
• Let it soak for a few minutes if the bolts look rusty.

Step 6: Remove the Lower Ball Joint Pinch Bolt

• Locate the lower ball joint where the control arm connects to the steering knuckle behind the brake rotor.
• The steering knuckle is the upright metal part that holds the wheel hub and connects to the suspension.
• Use an 18mm socket and 18mm wrench to remove the lower ball joint pinch bolt and nut.

Step 7: Separate the Ball Joint from the Steering Knuckle

• Use a ball joint separator to push the lower ball joint stud out of the steering knuckle.
• Use a pry bar 18-inch to gently push the control arm downward if needed.
• Use a rubber mallet only for light tapping on the control arm, not the threads.
• Do not stretch the brake hose or pull on the axle shaft.

Step 8: Remove the Front Control Arm Mounting Bolts

• Use a 15mm socket and 15mm wrench to remove the front bushing bolts if your bolt heads are 15mm.
• Use an 18mm socket and 18mm wrench if your bolt heads are 18mm.
• Remember the direction each bolt came out.

Step 9: Remove the Rear Control Arm Mounting Bolt

• Use a 21mm socket and 21mm wrench to remove the rear bushing bolt.
• Hold the control arm steady as the last bolt comes out.
• Remove the control arm from your Escape.

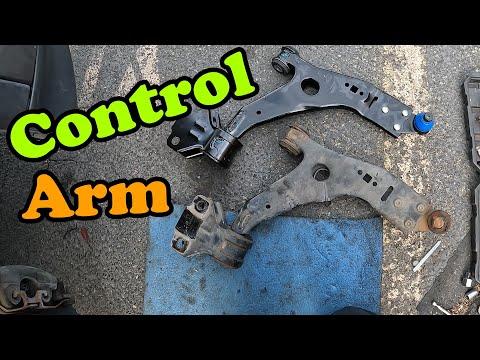

Step 10: Compare the Old and New Control Arms

• Place the old and new control arms side by side.
• Make sure the ball joint, bushings, and bolt holes match.
• Use a paint marker to label left and right if replacing both sides.

Step 11: Install the New Control Arm Loosely

• Place the new control arm into the subframe.
• Start the rear bushing bolt by hand.
• Start the front bushing bolts by hand.
• Use a 15mm socket, 18mm socket, or 21mm socket to snug the bolts lightly.
• Do not fully tighten the bushing bolts yet.

Step 12: Reconnect the Lower Ball Joint

• Use the floor jack under the outer end of the control arm to raise it slowly.
• Guide the lower ball joint stud fully into the steering knuckle.
• Install the new lower ball joint pinch bolt and nut.
• Use an 18mm socket, 18mm wrench, and torque wrench to tighten it.
• Torque to 63 Nm (46 ft-lbs)

Step 13: Load the Suspension Before Tightening Bushings

• Use the floor jack under the outer end of the lower control arm.
• Raise the arm until your Escape just starts to lift slightly from the jack stand on that side.
• This puts the suspension close to normal ride height.
• This helps bushings last longer.

Step 14: Final-Tighten the Control Arm Bolts

• Use the correct 15mm socket, 18mm socket, or 21mm socket with a torque wrench.
• Front control arm bushing bolts: Torque to 115 Nm (85 ft-lbs)
• Rear control arm bushing bolt: Torque to 175 Nm (129 ft-lbs)

Step 15: Repeat on the Other Side

• Repeat the same steps on the opposite front lower control arm.
• Use the same tools and torque specs.

Step 16: Reinstall the Front Wheels

• Place each front wheel back onto the hub.
• Start all lug nuts by hand first to avoid cross-threading.
• Use a 19mm lug nut socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.

Step 17: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to lift your Escape slightly off the jack stands.
• Remove the jack stands.
• Lower your Escape to the ground.
• Use a 19mm lug nut socket and torque wrench to tighten the lug nuts in a star pattern.
• Torque to 135 Nm (100 ft-lbs)

---

✅ After Repair

• ✅ Turn the steering wheel fully left and right while parked. Listen for clunks, pops, or rubbing.
• ✅ Take a slow test drive around the block before driving at higher speeds.
• ✅ Recheck lug nut torque after the short test drive.
• ✅ Get a front wheel alignment as soon as possible.
• ✅ If your Escape pulls, wanders, or the steering wheel is off-center, avoid highway driving until aligned.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours, plus alignment.

---
