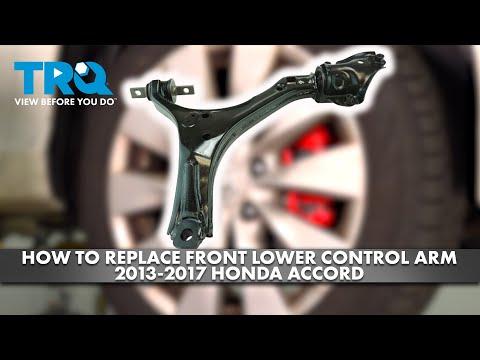

🔧 Control Arms - Front Lower Control Arm Replacement

On your Accord, the front lower control arms locate the front wheels and keep alignment stable. If the bushings or ball joints are worn, you can get clunks, uneven tire wear, and wandering steering. Replace both sides in pairs so the suspension stays balanced.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Support the car securely on jack stands before removing any suspension parts.
• Do not let the brake hose or axle hang by the wheel hub while the arm is removed.
• Use a spring-safe stance and keep hands clear when separating the ball joint.
• Final suspension bolts must be torqued with the vehicle at normal ride height.
• Get a wheel alignment after this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (pair, rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar
• 17mm socket
• 19mm socket
• 21mm socket
• 22mm socket
• Ratchet
• Torque wrench
• Ball joint separator (specialty)
• Penetrating oil
• Paint marker
• Trim removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly - Left: 1, Right: 1, replace in pairs
• Front lower control arm bolt kit - Qty: 1
• Front lower control arm nuts - Qty: 2
• Front stabilizer link nuts - Qty: 2
• Alignment inspection kit - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front wheel nuts before lifting the car.
• Spray penetrating oil on the control arm bolts and ball joint fasteners.
• If the bolts are heavily rusted, let the oil soak before starting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front

• Use a floor jack to lift the front of the car at the factory jack point.
• Support it with jack stands under the proper frame points.
• Remove both front wheels with a 19mm socket.
• Keep the car solid before working underneath.

Step 2: Mark the bolt positions

• Use a paint marker to mark the position of the rear arm bolt and front pivot bolt.
• This helps keep the new arm close to the old alignment, but you still need a final alignment.

Step 3: Separate the stabilizer link if needed

• If the sway bar link blocks access, remove it with a 17mm socket and 19mm wrench.
• Torque on reassembly: Torque to 44 Nm (32 ft-lbs).

Step 4: Remove the ball joint from the knuckle

• Remove the ball joint nut with a 19mm socket.
• Use a ball joint separator to free the joint from the steering knuckle.
• Do not hammer directly on the stud threads.
• Torque on reassembly: Torque to 49 Nm (36 ft-lbs).

Step 5: Remove the control arm pivot bolts

• Use a 21mm socket and breaker bar to remove the front and rear control arm bolts.
• Support the arm as you remove the last bolt so it does not drop.
• Penetrating oil helps on rusty bolts.

Step 6: Remove the old control arm

• Work the arm out of the subframe and knuckle area.
• If it is stuck, use gentle movement only. Do not pry against the brake hose.

Step 7: Install the new control arm

• Position the new control arm in the subframe and install the pivot bolts by hand first.
• Attach the ball joint to the knuckle and start the nut by hand.
• Do not fully tighten the pivot bolts yet.

Step 8: Snug the fasteners

• Use a 21mm socket to snug the pivot bolts.
• Use a 19mm socket to snug the ball joint nut.
• Leave final torque for ride-height tightening.

Step 9: Set the suspension at ride height and torque the bolts

• Raise the lower control arm slightly with the floor jack until the suspension is near normal ride height.
• Use a torque wrench and 21mm socket to tighten the front and rear pivot bolts.
• Torque to 108 Nm (80 ft-lbs) for the pivot bolts.
• Tighten the ball joint nut with a 19mm socket.
• Torque to 49 Nm (36 ft-lbs).

Step 10: Reinstall the stabilizer link and wheel

• If removed, reinstall the sway bar link and torque it with a torque wrench.
• Torque to 44 Nm (32 ft-lbs).
• Reinstall the wheel with a 19mm socket.
• Torque to 108 Nm (80 ft-lbs) for the lug nuts.

---

✅ After Repair

• Lower the car and pump the brakes before driving.
• Listen for clunks over bumps on a short test drive.
• Check that the steering wheel is centered.
• Schedule a professional wheel alignment right away.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹40,000 (parts + labor)

DIY Cost: ₹8,000-₹18,000 (parts only)

You Save: ₹10,000-₹22,000 by doing it yourself!

Shop labor rates vary but typically run ₹8,000-₹12,000/hour. This repair takes a shop approximately 3-5 hours.

---
